Small-medium Cryogenic Air Separation Unit For Oxygen Nitrogen Gas
Quick Details:
Condition: New
Place of origin: China(mainland)
Brand name: UIG
Model number: KDO, KDON, SERIES
Production capacity: 180-1000 m3/hour
Power: 200-1000 KW
Voltage: 380V, 400V, 440V
Certification: ISO 9001: 2000
Warranty: 1 year
Life: 20 years with proper maintenance
After-sales service provided: Engineers available to service plants overseas
Usage: Industrial and medical (oxygen, nitrogen)
UIG Air separation plants are designed for a vast range of capacities and products summarized below: FOR OXYGEN 99.7 % AND NITROGEN 99.999%
Oxygen filling(or booster)with oxygen compressor.
Description:
Oxygen filling (or booster) with liquid pump.
Internal compression air separation plants:

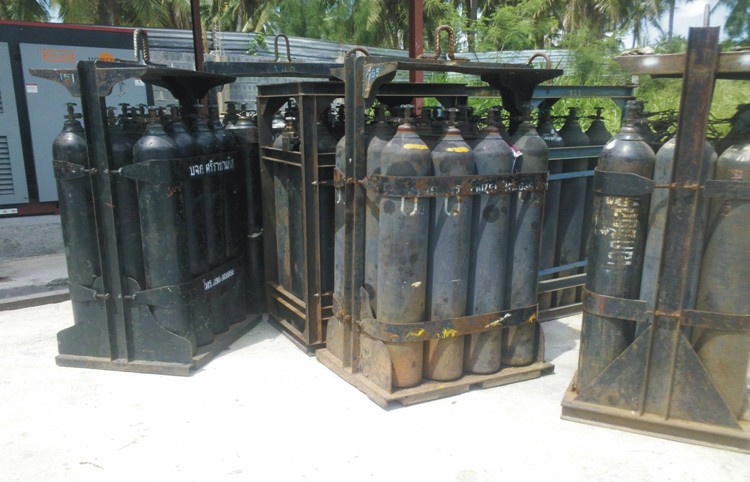

Air-Compressed-Precooling-Purifier-Rectification-heart exchanger (low pressure liquid)-Liquid oxygen pump(pressurized liquid oxygen)-oxygen vaporizer - oxygen cylinders
Oxygen filling (or booster) with liquid pump.
External compression air separation plants:
Air-Compressed-Precooling-Purifier-Rectification-heart exchanger (low pressure gas)-oxygen storage-oxygen compressor(pressurized oxygen)-oxygen cylinders
Applications:
We supplied to many countries (Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania).
Competitive Advantage:
1. No gas loss and high yield
2. Very simple and safe to operate
3. Low power consumption
4. Low Working Pressure
5. Low Operating Cost
6. Low Maintenance Cost
7. The life span is over 20 years
8. Engineers available to service machinery overseas
9. All gas and liquid plants are optimized to meet customer-specific site requirements
Tag: Small-medium size air separation unit, Small-medium size air separation plant, Small-medium size liquid oxygen plant, Small-medium size air separation equipment, Small-medium size oxygen machine, Small-medium size oxygen equipment
Model contents |
KDON-
180-20 |
KDON-
300-50 |
KDON-
350-80 |
KDON-
500-150 |
KDON-
800-200 |
KDON-
1000-300 |
Gox flow |
Nm³/h |
180 |
300 |
350 |
500 |
800 |
100 |
Gox purity |
%(O2) |
≥99.7 |
≥997 |
≥99.7 |
≥99.7 |
≥99.7 |
≥99.7 |
Gan flow |
Nm³/h |
20 |
50 |
80 |
150 |
200 |
300 |
Gan purity |
Ppm(O2) |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
Operating pressure |
Mpa |
1 |
1 |
1 |
1 |
1 |
1 |
Start-up time |
hour |
≤10 |
≤10 |
≤8 |
≤8 |
≤8 |
≤8 |
Operating period |
year |
≥1 |
≥1 |
≥1 |
≥2 |
≥2 |
≥2 |
Oxygen filling (or booster) with liquid pump.
2)External compression air separation plants:
Air-Compressed-Precooling-Purifier-Rectification-heart exchanger (low pressure gas)-oxygen storage-oxygen compressor(pressurized oxygen)-oxygen cylinders
Model contents |
KDON-
180/500 |
KDON-
350/800 |
KDON-
550-1000 |
KDON-
750-1500 |
KDON-
1000-2000 |
Gox flow |
Nm³/h |
180 |
350 |
550 |
750 |
1000 |
Gox purity |
%(O2) |
99.6 |
99.6 |
99.6 |
99.6 |
99.6 |
Gan flow |
Nm³/h |
500 |
800 |
1000 |
1500 |
2000 |
Gan purity |
Ppm(O2) |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
Operating pressure |
Mpa |
0.63 |
0.62 |
0.6 |
0.58 |
0.58 |
Start-up time |
hour |
≤14 |
≤16 |
≤16 |
≤18 |
≤18 |
Operating period |
year |
≥1 |
≥1 |
≥1 |
≥1 |
≥2 |
Hangzhou Union Industrial Gas-equipment Co., Ltd. Are a technology enterprise specialized in R&D, design and manufacture of various air separators and cryogenic application equipments. Our company always insists on taking the technology as the motility, emphasizing technique and products innovation, cooperating with many scientific and research institutes, academic schools which are in the same industry range with us. On the basis of integration into advanced design concept and strict management procedure and the outstanding production technique and give the enthusiastic service support. Decisive adoption of new processes, new technology, the R&D and manufacturing capability of the company is enhanced and the development is oriented to the Saving Energy variety and perfection of the products.
The products of the company cover the fields of metallurgy, petrochemical industry, electronics, machinery, construction material, Medicine, New materials which have been well received all over the country and also been supplied to many Asian and African countries(Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania). The main products are: the medium and small size oxygen nitrogen plants, liquid oxygen and liquid nitrogen plants, oxygen and nitrogen liquefaction plants, high purity nitrogen generators, molecular sieve pressure swing adsorption plants and PSA (VPSA) oxygen (nitrogen) plants.
In addition to provide high-quality products, our company also undertakes technical consulting, engineering design, equipment installation, technical training and other services, and implementation of the turn-key project. Sincerely welcome your contact and visit to the company.
