Small Compact Electrical Steam Generator (LDR)

Small Compact Electrical Steam Generator (LDR)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T

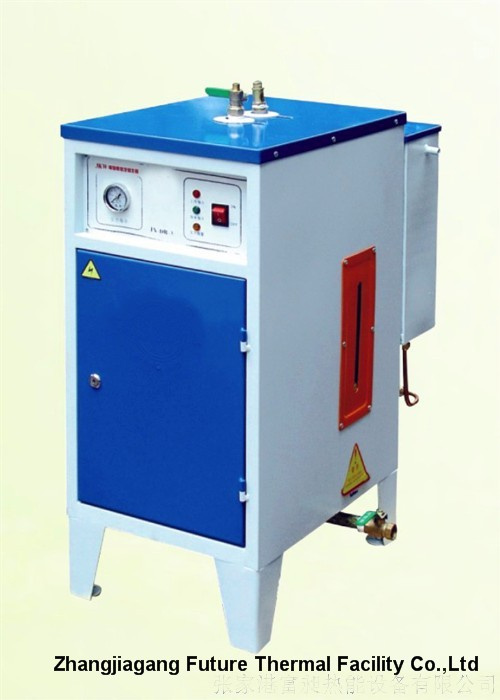

Small Electric Steam Generator
Product Introduction:

Small electric steam generator is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.

1. Small Input Power(3-60KW) with higher output(4-85Kg/h).
2. Use of Nichrome Heating Element, it ensures long-term effective operation of the boiler.
3. Mini Electric Steam Generator has a compact structure with fast heating speed, reaching to use pressure by several minutes.
4. Unique built-in steam-water separator solved a problem of steam with water which brought by similar products.
Model LDR0.004
-0.7
LDR0.009
-0.7
LDR0.013
-0.7
LDR0.017
-0.7
LDR0.025
-0.7
LDR0.035
-0.7
LDR0.05
-0.7
LDR0.065
-0.7
LDR0.08-0.7
Item Unit
Rated Steam Capacity Kg/h 4 9 13 17 25 35 50 65 80
Rated Working Pressure MPa 0.7
Saturated Steam Temperature °C 171
Input Power KW 3 6 9 12 18 24 36 48 60
Input Current A 6 9 14 18 27 41 55 73.8 92
Voltage V 220 / 380 (Available for adjustment )
Water Inlet DN 15 15 15 15 15 15 15 15 15
Steam Outlet DN 15 15 15 15 15 15 15 15 25
Blowdown Valve DN 15 15 15 15 15 15 15 15 25
Safety Valve DN 15 15 15 15 15 15 15 15 25
Dimension mm 680×520×850 750×550×920 850×600×1000 920×700×1200 960×730×1390
Weight kg 50 75 79 85 92 118 132 160 210
Prod Model: LDR
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure: Compact
Color: Bule
Place Style: Vertical
Gas Flow Type: Fire Tube
Fuel: Electric Heating
Usage: Home
Pressure: Low Pressure
Media: Steam
Water Circulation: Natural Circulation
Manufacturing Level: B
Burning Style: Internal Firing Boiler
Zhangjiagang Future Boiler Manufacture Co., Ltd., is a National boiler manufacture license enterprise, which has the certified for the certificate of ISO9001: 2000 quality assurance system. Future Boiler specializes in Oil (Gas) Fired Steam Boiler, Electric Steam Boiler, Small Electric Steam Generator, Electric Hot Water Boiler, Oil(Gas) Fired Hot Water Boiler, Marine Boilers, Boiler Accessories & Auxiliary Machines, etc...We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.

The company enjoys a good reputation in domestic and abroad by the outstanding quality and consummation service, our products already exported to more than 50 countries and regions, including USA, Europe and other developed countries. Continues growing market needs numerous innovative product concepts.

"Chariness, Carefulness, Patience and Permanent fine quality" is our company's entrepreneurial spirit, which is embodied in our sustainable advancing pace, and in getting along with customers, partners, internal staff and competitors.
