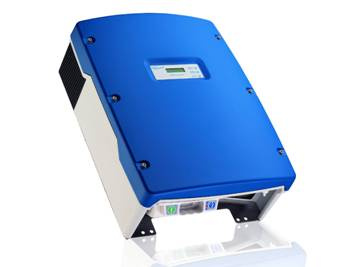

SMA Solar Inverter Sunny Mini Central SMC 7000HV
Efficient
Opticool active temperature management
The best tracking efficiency with Optitrac MPP tracking
Safe
Galvanic isolation
Integrated ESS DC switch-disconnector
SMA Power Balancer for three-phase grid connection
Flexible
Integrated reactive power capability and grid management functions
Input voltage range of up to 800V
Suitable for generator grounding
Simple
DC plug system SUNCLIX
Inverter/Solar Inverter /solar power inverter/power inverter
|
|
Sunny Mini Central 7000HV |
|
Input (DC) |
|
|
Max. DC power (@ cos φ =1) |
7500 W |
|
Max. DC voltage |
800V |
|
MPP voltage range |
335 V – 560 V |
|
DC nominal voltage |
340 V |
|
Min. DC voltage / start voltage |
290 V / 400 V |
|
Max. input current / per string |
23 A / 23 A |
|
Number of MPP trackers / strings per MPP tracker |
1 / 4 |
|
Output (AC) |
|
|
AC nominal power (@ 230 V, 50 Hz) |
6650 W |
|
Max. AC apparent power |
7000 VA |
|
Nominal AC voltage; range |
220, 230, 240 V; 180 V – 260 V (262 V**) |
|
AC grid frequency; range |
50, 60 Hz; –6 +5 Hz |
|
Max. output current |
31 A |
|
Power factor (cos φ) |
0.8 leading ... 0.8 lagging |
|
Phase conductors / connection phases / power balancing |
1 / 1 / yes |
|
Efficiency |
|
|
Max. efficiency / Euro-eta |
96.2 % / 95.5 % |
|
Protection devices |
|
|
DC reverse-polarity protection / reverse current protection |
yes /— |
|
ESS switch-disconnector |
yes |
|
AC short circuit protection |
yes |
|
Ground fault monitoring |
yes |
|
Grid monitoring (SMA Grid Guard) |
yes |
|
Galvanically isolated / all-pole sensitive fault current monitoring unit |
yes /— |
|
DC overvoltage protector (type II), can be integrated |
— |
|
String failure detection |
— |
|
Protection class / overvoltage category |
I / III |
|
General data |
|
|
Dimensions (W / H / D) in mm |
468 / 613 / 242 |
|
Weight |
65 kg |
|
Operating temperature range |
–25 °C ... +60 °C |
|
Noise emission (typical) |
≤ 41 dB(A) |
|
Internal consumption: (night) |
0.25 W |
|
Topology |
LF transformer |
|
Cooling concept |
OptiCool |
|
Electronics protection rating / connection area (as per IEC 60529) |
IP65 / IP65 |
|
Climatic category (per IEC 60721-3-4) |
4K4H |
|
Features |
|
|
DC connection: SUNCLIX |
yes |
|
AC connection: screw terminal / spring-type terminal |
yes /— |
|
Display: text line / graphic |
yes /— |
|
Interfaces: RS485 / Bluetooth |
opt. / opt. |
|
Warranty: 5 / 10 / 15 / 20 / 25 years |
yes / opt. / opt. / opt. / opt. |
