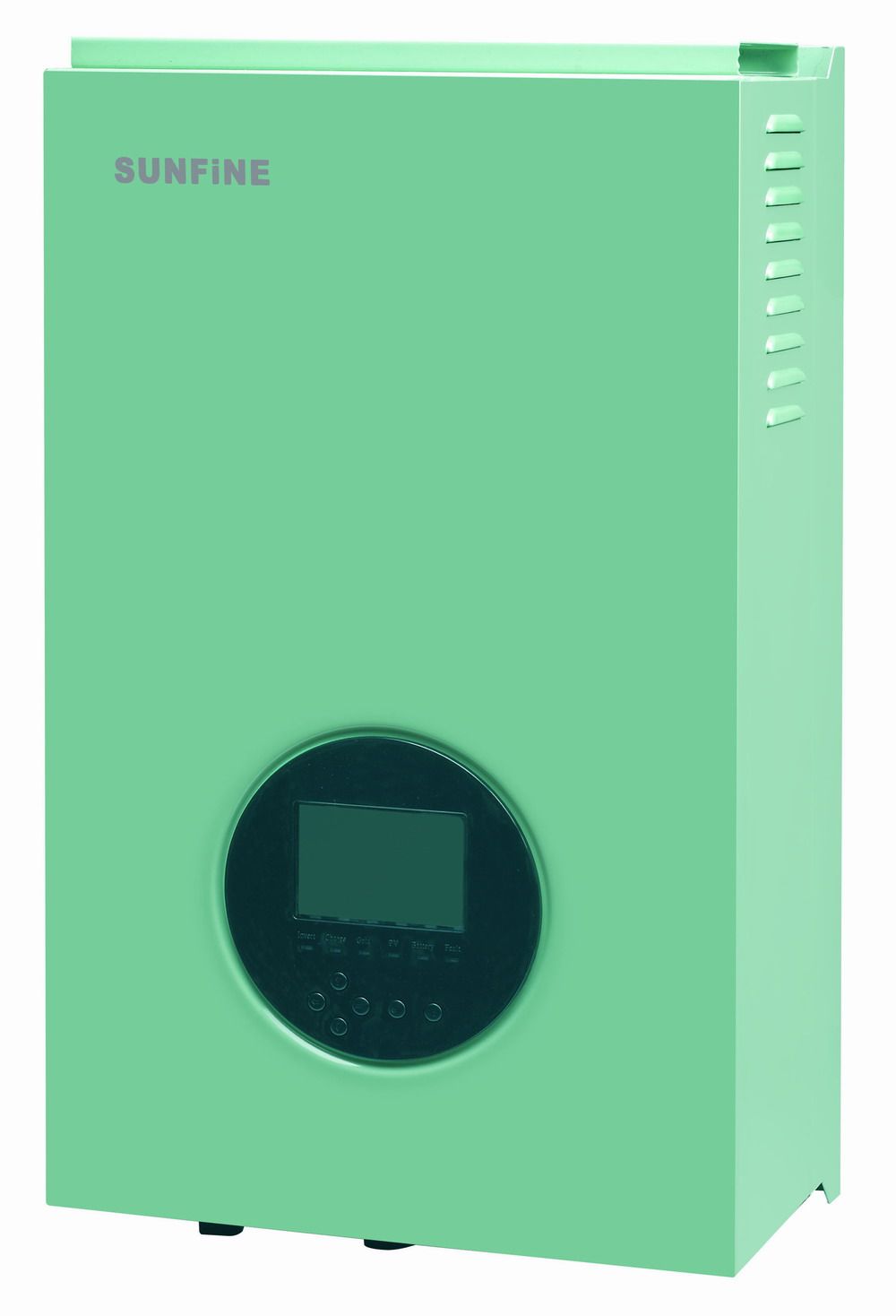

SM series Single phase grid tie solar inverter
Overview
The unstable DC power from PV panel through SUNFINE SM to transform single phase pure sine wave AC power feed-in grid for loads working.
Features
Max. Efficiency 97.0%
MPPT max. Efficiency 99.0%
Power factor 0.9999
Active frequency offset Anti-islanding
Large screen multi-language- LCD display
Stacked available
Less standby power consumption
Multi-protection for maximum safety
Statistics for power production and CO2
8K*4 RUN LOG cycle index
RS485/232 compatible
Various panel types matched
Diagram
Efficiency curve
Technical parameter
AC side SM-1K/1S SM-1K5/1S SM-2K/1S SM-2K5/1S SM-3K/1S SM-4K/1S SM-4.8K/1S
Continuous output power at 4 centigrade(P nom) 1000W 1500W 2000W 2500W 3000W 4000W 4800W
AC output current 5.45A 8.18A 10.91A 13.64A 16.36A 21.82A 26.18A
AC output voltage(nominal) 220VAC+20%, 50/60Hz+1Hz, true sine wave<3% THD, single phase
AC output range 176-264V AC (limited by local anti-islanding regulations)
Standby losses ≤ 15W
User interface interactive LCD display with button operation
Connectivity Wireless RS232/458, TCP/IP
Backup switch over time <5 ms
DC side
Max. Input 6.6A 10A 13.3A 16.7A 20A 24.6A 32A
No. Of strings unlimited
No. Of MPPT trackers 1, fully independent
Solar Voltage 180-360V DC
MPPT voltage 180-360V DC
Solar Connections MC4
Max. Efficiency 97.00%
Max. MPP Efficiency 99.00%
Power factor >0.99 (Rated power)
Environmental
Operating Temperature Range(full power) -25 Centigrade to +50 Centigrade
Storage Temperature -40centigrade to +70centigrade
Humidity maximum 90%, non-condensing
Warranty five years (optional: Extension to ten years)
General
Dimensions(WxHxD)(mm) 454*240*182 466*270*181 466*270*181 466*270*181 466*270*181 538*310*181 538*310*181
Protection Category IP65
Weight(kg) 18 19 20 20.5 21 26.5 27
Protection over/under voltage, over/under frequency, anti-islanding, AC short circuit, Ground fault monitoring, DC reverse polarity, over load
Topology HF-CHAIN
Cooling Nature Cooling Fan Cooling
