Single-Phase Gasoline Generator Spear Parts

Single-Phase Gasoline Generator Spear Parts
Price: US $ 40-100/Set
Trade Terms: FOB
Min Order: 100/Set
Pay Type: L/C,T/T
Gasoline generator spare parts
1. Stator & Rotor can be designed by our customers
2. CCC, CE, RoHS, UL approvel
3. Good quality

Products Features
1, Portable emergency power supply when working with gasoline generator;
2, Monophase(TFD) or three phase(TFS) AC power output;
3, Brush excitation and brushless excitation model available;
4, AVR (automatic voltage regulator) makes the stable voltage output (TFD brush excitation);

5, The capacitance compensation makes easy maintenance and reliable operation (TFDW Brushless excitation).
6, CE/TUV certificate approved;
7, Rotor&stator can be develop according to client's request;

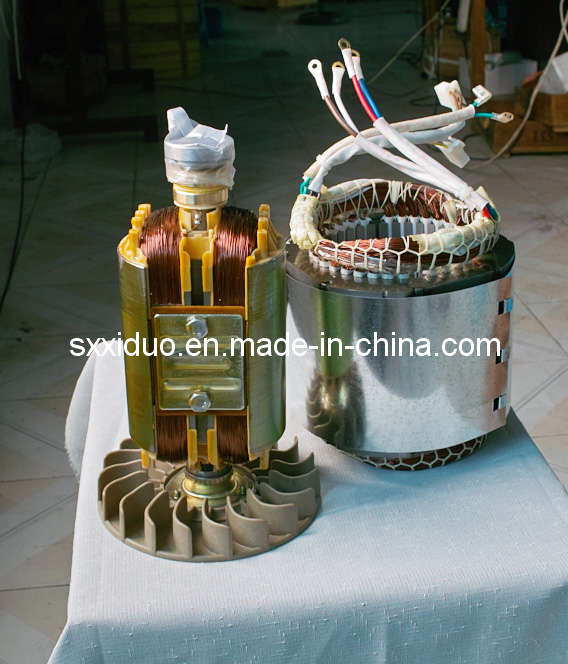

8, Parts list: Stator +Rotor(Include Ball Bearing & Radiator Fan) + Protect Plate + Electric Brush;

Packaging & Delivery
Packaging Detail: Foam material+carton+container
Delivery Detail 30 days after receipt of the deposit
    50HZ-3000rpm 60HZ-3600rpm
OD lamination thickness L1 (mm) Output power Driving  power Outputpower Driving  power
KVA     KVA
Cosφ =1   Cosφ =1 KVA
S1 S2   KW η % S1 S2   KW η %
φ 190 85 2.8 3.1 3.5 79 3.4 3.7 4.3 79
100 3.3 3.6 4.07 80 4 4.4 5 80
125 4 4.4 4.88 81 4.8 5.3 5.9 81
140 5 5.5 6.02 82 6 6.6 7.3 82
155 6 6.6 7.2 82 7 7.7 7.74 84
    50HZ-3000rpm 60HZ-3600rpm
OD lamination thickness L1 (mm) Output power Driving  power    Outputpower Driving  power
KVA KVA
Cosφ =1 Cosφ =1 KVA
S1 S2   KW η % S1 S2   KW η %
φ 160 50 1 1.1 1.4 71 1.2 1.3 1.7 71
60 1.3 1.4 1.8 72 1.6 1.7 2.2 72
70 1.5 1.7 2.1 73 1.8 2 2.5 73
85 2 2.2 2.7 75 2.4 2.6 3.2 75
110 2.5 2.8 3.2 78 3 3.3 3.8 78
120 2.8 3.1 3.5 80 3.4 3.7 4.2 80
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power: 1-7kw
Certification: CE, UL
Winding Material: Cooper Wire
Phase: Single-Phase
Voltage: 110-240V
Frequency: 50/60Hz
Shaoxing Xiduo Electric Machine Co., Ltd is a high-tech enterprise integrating production with marketing.It is situated in Shanggao Industrial Park, Shengzhou, Zhejiang province.Our company supplys different kinds of products.High quality and favaroble price.We're pleased to get your Inquiry and we will come back to as soon as possible.
