Single Phase Alternator (ST Series)

Single Phase Alternator (ST Series)
Price: US $ 122/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T

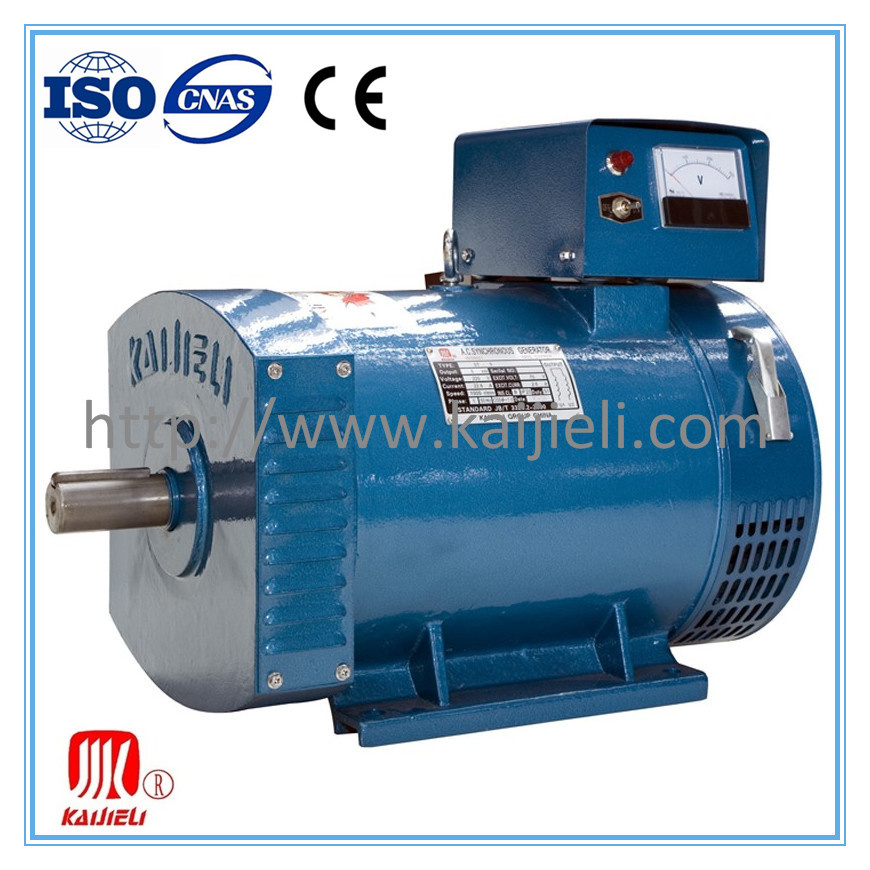

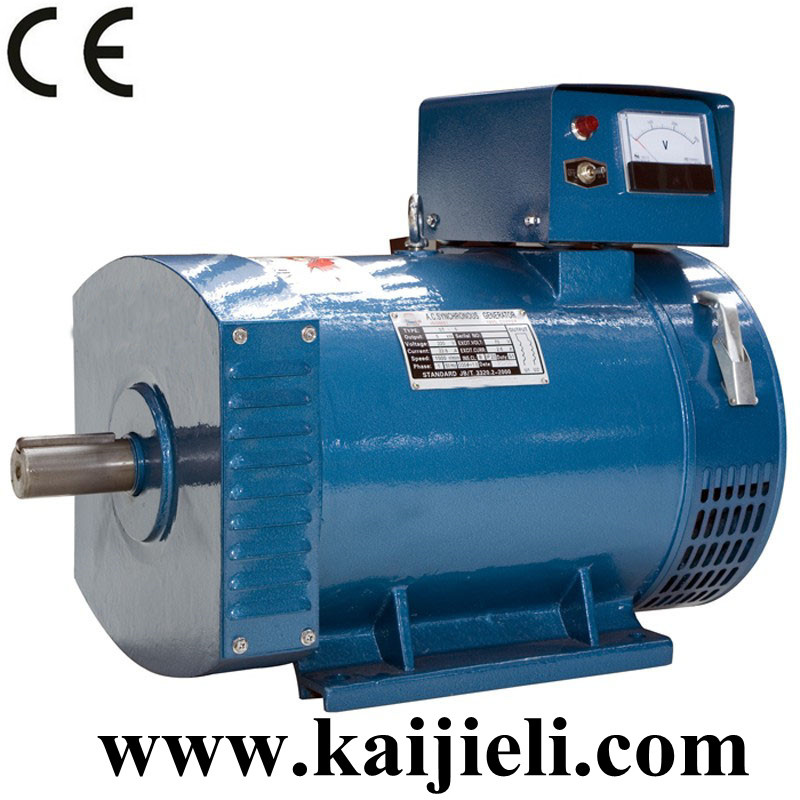

ST SINGLE PHASE A. C. SYNCHRONOUS ALTERNATOR
Are designed to serve mainly as the power of household appliances and the lighting towns, villages, houses or minitype ships.
The structure of alternator is drip-proof type protection class IP21, salient-pole rotating field self excitation and constant voltage.
The alternator interior is made of high quality magnetic and electrical materials. Insulation class B or F. Voltage 110-440V, 4-pole, Power Factor COS1.0, Chinese bearings.
Output range from 2KW to 24KW.
MODEL Output Current(A) Voltage(V) Power factor Pole number Speed(r/min) Freq. (Hz)
Type KW Series Connection Parellel Connection  Series Connection Parellel Connection
ST-1 1 4.35 8.7 230 115 1 4 1500/1800 50/60
ST-2 2 8.7 17.4
ST-3 3 13 26
ST-5 5 21.8 43.5
ST-7.5 7.5 32.6 65.2
ST-10 10 43.5 87
ST-12 12 52.2 104
ST-15 15 65.3 130
ST-20 20 87 174
ST-24 24 104 208

Prod Model: ST Series
Markets: South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Output: 24kw
Installation Method: Fixed
Kaigong Electric (Suzhou) Co., Ltd. professionally manufactures electric motors, alternators, generating sets and pumps, including Y/Y2/CDF/SDF series of normal motors and IE2, EFF2, EFF1 series of high efficiency motors, and the capacity is up to 350, 000 units (1, 500, 000kW) one year. For generators we manufacture TWG/TWGII series brushless generators, ST/STC alternators etc. It is a Sino-British joint venture enterprise, locating in Suzhou of China, with experiences of electrical machine manufacture for over 50 years. The Chinese shareholder is a subsidiary company of Kaijieli Group and the leading enterprise among the Group's producers in manufacturing sector.

We are top ten of the machinery industry, our workshops are distributed in Suzhou, Kunming and Fuan, which cover the areas of over 100, 000 square meters. We possesses the advanced producing and testing equipments, such as CNC vertical lathes, CNC boring machines, electrical warming equipments at medium frequency, VPI equipments, automatic spray-painting line and testing system, as well as the CAD system for design.

Our Kaijieli Brand motors received 9 national patents and certificates of "CCC", "CE", "TUV" and "GS" successively.

Our company always keeps the principle of "high quality and low cost". Its products are exported to more than 80 countries and regions including Europe, American, Asia, Australia and Africa and the turnover exceeds 80 million US Dollar. Our "Kaijieli" brand has been registered in 120 countries and regions till now. Thanks to the excellent quality, Kaijieli products are gradually recognized and used as the top-priority products at home and abroad.

We warmly welcome you to join us as the allies and partners, as Kaijieli not only belongs to us, but also to you; Not only to China, but also to the whole world.
