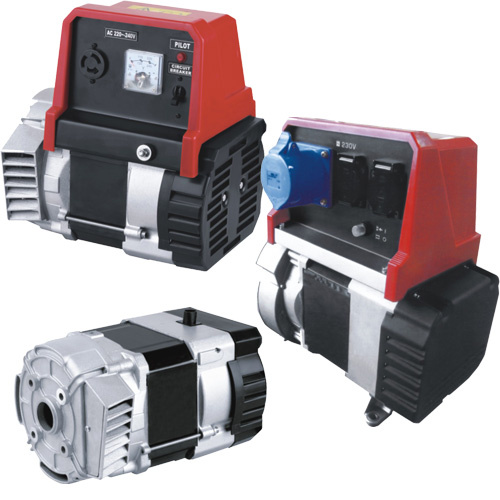

Single-phase synchronous Brush Alternator
> Protection: IP 23
> Standard voltage: 230 V - 50 Hz.
> On request battery charger 12 V DC 8.3A.
> Shape: J609A, J609b
> Pole: 2
Applications:
Construction site mobile power
Private mobile power
Refrigeration vehicle power packs
Private marine power supplies
Police & Fire Service incident vehicles
Leisure and Hobby
Standby Power
|
TECHNOLOGY DATA |
|
TYPE |
NAC3200 |
NAC3900 |
NAC4600 |
NAC5300 |
NAC6500 |
NAC7600 |
NAC8600 |
|
Generator Type |
2-pole; self-exciting;IP22 |
|
Voltage Regulation System |
Condenser/A.V.R. |
|
Phase |
Single |
|
Rated Voltage(V) |
110,120,220-240
110-120/220-240 |
|
Rated Frequency(Hz) |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
50 |
60 |
|
Rated Output(kVA) |
3 |
3.3 |
3.6 |
4.3 |
4.5 |
5.2 |
5 |
5.8 |
6 |
7 |
6 |
7 |
6 |
7 |
|
Max. Output(kVA) |
3.5 |
3.9 |
4.3 |
4.9 |
5.3 |
5.9 |
5.9 |
6.9 |
6.9 |
7.9 |
6.9 |
7.9 |
6.9 |
7.9 |
|
Rated Speed(rpm) |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
|
B34(B/L mm) |
198/272 |
213/287 |
|
|
|
|
|
|
J609b(B/L mm) |
|
|
241/299 |
251/309 |
261/319 |
271/329 |
281/339 |
|
Engine Gasoline(HP) |
5.5 |
6.5 |
8 |
9.0-9.5 |
11 |
13 |
14.2 |
|
Engine Diesel(HP) |
170FA |
|
178FA |
|
186FA |
|
|
Located in the city of Fuan, northern east of Fujian province, which is well known as"city of electric machinery and appliances of China", Fuan Huachuang Electrical Machinery Co., Ltd. (briefly Huachuang) was established in 2003. After 10 years of hard work, Huachuang has now become one of the top motor manufacturers in China.
We have the following advantages:
(1)More than 20 years of experiences in motor manufacturing ( our manager, main technicians had worked in another motor factory for more than 10 years before they established Huachuang);
(2)The wind turbines are developing with a great growth, which have increased by about 20% a year.
(3)As one of the top motor manufacturer in China, (Annual output of 150, 000 PCS of motors, value USD 5 million);
(4)A full ranges product: More than 210 specifications;
(5)Leading mould and tool designing and manufacturing;
(6)Our products are CCC, CE certified;
(7)ISO 9001: 2008 certification;
(8)More than 6 engineers to put out 5-8 new products every year;
(9)More than 90% of our workers have been in the industry beyond 6 years.
