Home Generator Products Single or Twin Bearing Factory Produce 10.8kw Alternator

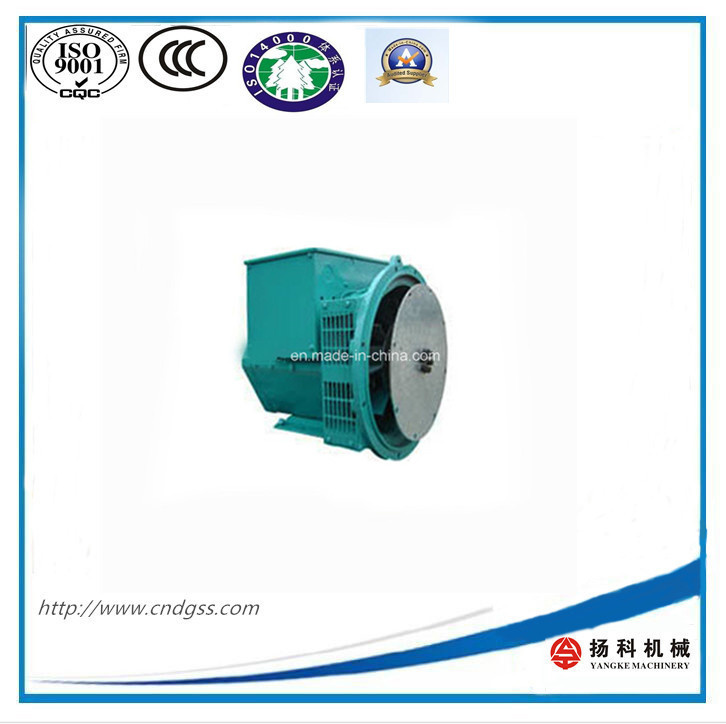

Single or Twin Bearing Factory Produce 10.8kw Alternator

Single or Twin Bearing Factory Produce 10.8kw Alternator
Price: US $ 500-10000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
1,AVR control
2,IP23, Insulation Class H
3,2/3 pitch winding
4,100% copper wire and 100% output
5,ISO9001-2008,CE certifica

Alternator
Powered by LOVOL/DOOSAN/ISUZU/CUMMINS/PERKINS/DEUTZ

Rated Output(KVA/KW)

10.8KW/ 13.5kva

Voltage

110V--280V can be indicated

Frequency

50Hz/60Hz

Speed

1500rpm/1800rpm/3000rpm/3600rpm

Power Factor

1

Insulation Class

Class H

Ingress Protection

IP22/IP23

AVR(Option)

SX460,SX440,MX341,AS440,SX440T,MX321
power generator
1.Compound excitation, simple circuit design
2.excellent dynamic characteristics
3.safely used with computers
Promotion super silent blue power generator

1. stable and reliable unit performance
2. low fuel consumption, low emissions, low noise
3.The diesel generator set using rotary diesel oil, oil filters, dry air cleaner
4.unit is durable, compact, easy to operate
Basic Info.
Model NO.:QS10.8-GF alternator

Bearing Arrangement:Single or Twin Bearing Type
Export Markets:Global
Additional Info.
Trademark:QS

Packing:Wooden
Standard:CCS

Origin: Jiangsu
Production Capacity:50000
Product Description
Marine Alterator:

Frequency : 50/60HZ
Speed : 750/900/1000/1500/1800r/min
PF : 0.8
IP23
Insulation Level: H
Air Cooled  Cooled
MECHANICAL FEATURES

Voltage regulation

Voltage regulation refers to the change of voltage from no-load to full-load with power factor ranging from 0.5 to 1 and 2.8%s fluctuation of the speed of engine. Voltage is adjusted via potentiometer of AVR, model: SX460, SX440

Axis and Key

All of alternator rotors should pass balance test, whose vibrations are lower than the minimum of BS6861 P.1,G 2.5 two bearing alternator has a half-key testing balance

Terminal and terminal box

The three-field alternator had 12 leads brought out to the terminals in the terminal box. The terminals are put on the non drive end . The box is equipped with removable panels.


ELECTRIC FEATURES

INSULATION

Insulation Class H

All regulatory components are made up with special materials and are immersed in lacquer by peculiar tech. Vanish and colophony materials are develop to strengthen the processing and machinery intensity of windings and revolving parts for protecting the alternator work under corrosive environment.

Winding and electric features

2/3 pith winding design can effectively eliminate the third harmonic wave(3th.9th,15th) of the voltage ,which is the best design of UPS for nonlinear load .Connected with the network in parallel, the structure can restrain excessive currents in the midline. This and the 2/3 pitch help to check the wave distortion and output voltage.

Phone interference and Radio interference

THF (defined by 40thpart of BS4999) <2%.TIF<50
Brushless apparatus and quality AVR ensure little radio interference in transmission. RFI noise filter is also available.

Manufacturing Standard

GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34



 Packaging & Delivery


Packaging Detail:
Plywood case or customer required
Delivery Detail:3-10 days after deposit received





Company information

 Yangzhou YANGKE Machinery Electric Co.,ltd is a high-tech generator manufacture which collects research and development production and marketing together.

Our company not only establishes humanized modern enterprise management system, perfect quality management system and certification authority, but also equipped with international advanced facilities of research and development, manufacture and test. The management concept of our company is to develop the best product, to provide the best service, and to establish the best brand. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.

With the help of the strong technical strength, our company has formed the structure of product series. The current main products are: QS series 8-3000kva brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.

We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our generator sets are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator set and base frame, a circuit breaker to protect the generator from overload and a two wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).

Our company has been an accredited manufacturer who obtained the authentication of National Inspection and Supervision Center of Gas engine and Generating Sets since 2000, and passed the CE Certificate, the quality system certification of ISO9001-2008 Environment and GB/T2008-2001 occupation health & safety management.

Our company has advanced detection equipment, modern production technology, professional manufacturing technology and perfect quality management system with a strong R&D and technological strength. We can provide a variety of specifications common automated, automatic cut over, soundproof and mobile and so on high quality, the low energy consumption power set satisfies the customer all electric power set satisfies the customer all electric power demand. We also can satisfy the user different voltage, different frequency request, as well as many units and networking power supply system.

Our products in southeast Asia, central Asia, the Middle East, Africa and South America are used.


Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.

FAQ:
(1)  Your company is factory or Trade Company?
       Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2)  Your diesel generator power range?
      Answer: Now we mainly produce QS series 8-3000kva brushless alternators,
(3)  Which brand Electrical Generator you produce?
      Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel  generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
     Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America

Contact
Yangzhou YANGKE Machinery Electric Co.,Ltd
Contact person:Tina
Mobile:+8618262575201
Fax:0514-86822288
Tel:0514-82275368
Web:www.cndgss.com

Prod Model: YANGKE-10.8
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Green
Frequency: 50/60Hz
Fan Material: Aluminum
Rated Voltage: 110-280V
Power: 10.8kw/13.5kVA
Rotating Speed: 1500rpm/1800rpm/3000rpm/3600rpm
Power Factor: 1
Insulation Class: H
Ingress Protection: IP22/IP23
Control: AVR
Type: Basic Diesel Generator
Installation Method: Portable
Stroke: Six Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.

With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000kVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.

We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).

Our company has been an accredited manufacturer who obtained the authentication of National Inspection and Supervision Center of Gas engine and Generating Sets since 2000, and passed the CE Certificate, the quality system certification of ISO9001-2008 Environment and ISO14001-2004.

We can provide a variety of specifications automated, automatic cut over, soundproof and mobile on high quality. The low energy consumption power set satisfies the customer's all electric power demand. We also can satisfy the user with different voltage and different frequency request, as well as networking power supply system.

Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
