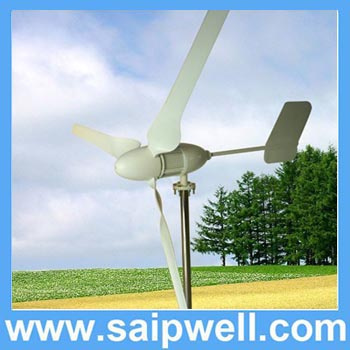

1. Fan-driven generator
2. Sine wave
3. High efficiency,
4. Easy installment
5. CE&RoHS
Product Description:
Adopt high-quality and high-strength permanent materials to ensure high energy conversion efficiency.
Adopt high-quality and high-strength aluminum alloy to make the unit light weight and easy installation.
The fiber-glass blades have the advantages of great intensity and excellent fatigue resistance.
Stainless steel shaft and screws to avoid rust and corrosion.
And the surface is coated with pollution-free material. Working environmental temperature from -20C-50C.
Electromagnetic brake is with the function of over-speed and over-current protection
|
Model |
FD2.7-500 |
|
Rated power(W) |
500 |
|
Rated voltage (DCV) |
24 |
|
Rotor diameter(M) |
2.5 |
|
Start-up wind speed(m/s) |
2 |
|
cut-out wind speed(m/s) |
|
|
Rated wind speed |
8 |
|
Security wind speed(m/s) |
35 |
|
Yaw mode |
mechanical |
|
Rated rotating rate |
400 |
|
Blade material |
fiber glass |
|
Blade quantity |
3 |
Guy cable
tower |
Tower height |
6 |
|
Tower thickness(mm) |
3.25 |
|
Tower diameter |
89 |
|
Free stand tower and hydraulic tower |
Tower heigh |
8 |
|
Matched inverter type |
sine wave |
