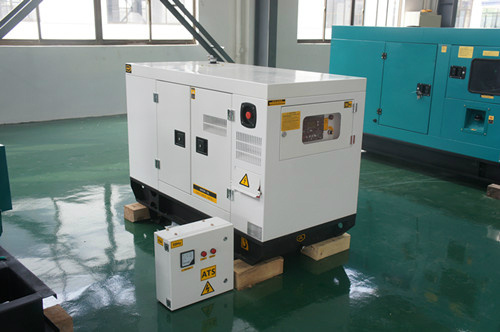

Silent type emergency diesel generator set
Engine:
Alternator: Leroy somer or Stamford
Avespeed- generator sets adopt imported engine originally manufactured by Carterpillar and Rolls-Royce, USA, UK. This engine adopts the latest technology and high quality grind-proof materials to make sure first level products, furthermore matches the Leroy Somer alternator manufactured by EMERSON Group, strictly tests before sale, the technology and quality can reach the best international standard. It features at low oil consumption, stable performance, easy maintenance, low operation cost, low emission, some models can reach EPAII, III Emission standard, which an ideal power system of prime and standby usage.
Adopting 3phases&4lines output, with output 380V/220V, frequency 50Hz/60Hz, power factor 0.8, neutral point to earth and protection performance comply with NEMA1 and IP22 standard.
|
Model Engine Specification |
KTA38-G2B |
|
BASIC TECHNICAL DATA |
|
Manufacturer |
CCEC(Cummins) |
|
Engine type |
4-cycle,T=turbocharged, -/A=- /water-air after-cooled |
|
Cylinder arrangement |
12cylinders,Vee 60 ° |
|
Bore and stroke(mm) |
159 × 159 |
|
Compression ratio |
14.5:1 |
|
Displacement(L) |
38.0 |
|
Estimated total weight (dry)(kg) |
3719 |
|
Engine rated speed(rpm) |
1500 |
|
Prime power(kW).gross |
711 |
|
Standby power(kW).gross |
789 |
|
EXHAUST SYSTEM |
|
Air intake flow(L/sec).rate |
926 |
|
Exhaust flow ( L/sec ).rate |
2600 |
|
Exhaust temperature |
490 |
|
Max. back pressure(kpa) |
10 |
|
Diameter of exhaust pipe (mm) |
152 |
|
COOLING SYSTEM |
|
Coolant capacity(only engine)(L) |
124 |
|
FUEL CONSUMPTION |
|
Standby power(L/h) |
TBD |
|
100% prime power(L/h) |
|
75% prime power(L/h) |
|
50% prime power(L/h) |
|
LUBRICATION SYSTEM |
|
Oil pan capacity(L) |
135 |
|
ELECTRIC SYSTEM |
|
Governor type |
Electronic |
|
Starter motor |
24V |
|
Battery charging system |
35A |
