Silent Type Diesel Generator

Silent Type Diesel Generator
Price: Negotiable
Min Order: 1
1) Output range: 30kW (37.5KVA) up to 1, 000kW (1, 250KVA)
2) Engine model: 4BTA3.9-G, 6BT5.9-G, 6BTA5.9-G, 6BTAA5.9-G,
6CTAA8.3-G, NTA855-G, KTA19-G, KTAA19-G, KT38-G, KTA38-G, KTA50-G
3) Alternator model: GM / MP
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires
Alternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤ +10%
12) Frequency return time: ≤ 3s
13) Voltage deviation at stable state: ≤ ± 1%
14) Voltage deviation at instantaneous state: ≤ +20%
15) Voltage return time: ≤ 4s
16) Voltage modulation: ≤ 0.3%

17) Standard configuration of gensets:
A) Engine: Cummins diesel engine
B) Engine type: Water-cooled, in line four-stoke, Humit cylinder liner,
Direct injection
C) Alternator: Marathon brushless alternator

18) Control system:
A) Automatic alarm system: The unit has the acousto-optics alarm
System and arrestor for any situation as the start defeat, the water
Is over temperature, the oil pulls down, over speed, over load and
Over current

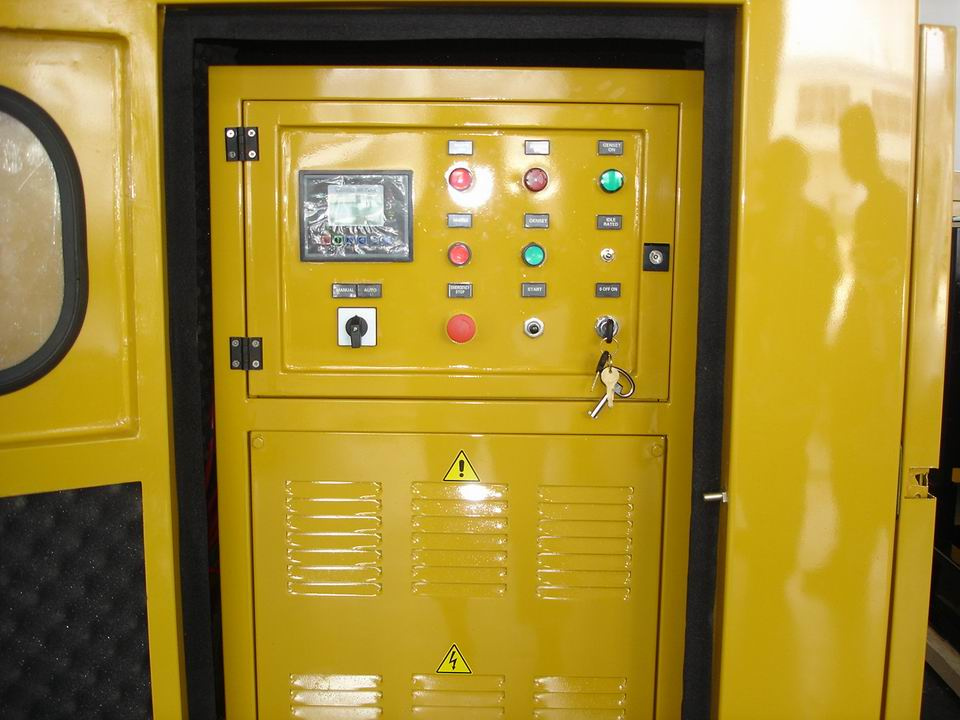

B) Operation display:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible and visual alarm lamps and buzzers

19) Starting system: DC alternator is used to start engine
20) Short circuit protection: MCCB air switch
21) Cooling system: Combined cooling water tank fitted to meet the
Requirement of radiation at ambient temperature 40°C
22) Filter system: Oil, fuel and air filter
23) Accessories: Exhaust elbow, bellow, muffler

24) Supply standard collocation:
A) Diesel engine with all accessories, 3 filter, electric systems
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel
I) MCCB air conservation switch
J) 12 / 24V starting accumulator and Battery line
K) Set shock absorber
L) High-efficient silencer.
Markets: Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Self-Starting Diesel Generator
Weifang Huaxin Electric Motor Co., Ltd. Established in 1985, covers an area of 6, 000sqm and staffs more than 20 engineers and technicians. We are mainly engaged in producing 3KW-1000KW generating sets, 3KW-1000KW diesel gensets and 30KW-1000KW gas gensets.

Our company has complete production lines; Machinery and equipment for generating sets and alternators as well as inspecting and testing machines.

Weifang Huaxin Electric Motor Co., Ltd. is a famous enterprise in Shandong Province and a renowned brand in Weifang Power Town. Our company wins markets with honest working style, outstanding service attitude as well as business idea of good quality and low prices. Our products are deeply renowned and welcome among customers.
