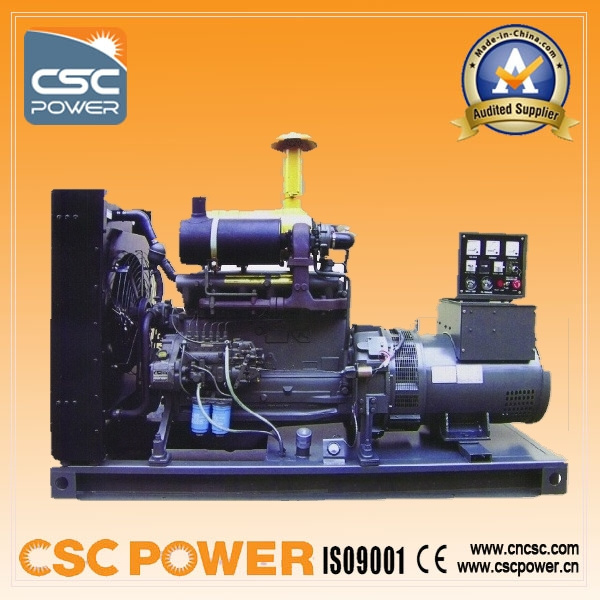

Silent Type Diesel Generator (TD226B-6D) with Deutz Engine

Price:	US $ 7000-8800/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Fuzhou Century Sea Co., Ltd.

Showroom Product Company Profile

We CSCPower, manufacturer specializing in generators,
Are qualified and hoping to supply you with different solutions (quotations+specifications) for generators according to your specific requirements.
Hope more about our generators could be known to you.
Best Quality! ! Silent Type Deutz Engine Diesel Generator
About our Deutz diesel engine generator sets:
Deutz engines: Enjoying official global warranty.
Alternator: Three brands options, original Stamford / Leroy Somer / China Alternator.
Control panel: Four brands options, Smartgen / ComAp / Deepsea / Harsen, Smartgen is chosen as standard supply scopy.

Supply Scope:
1. Brand new diesel engine (already mounted on the genset base)
2. Brand new alternator (already mounted on the genset base)
Ratings: 220/380V-adjustable, 3P4W, 50Hz, 1500Rpm, 0.8PF, IP23, H insulation class
3. Radiator with engine driven fan (already mounted on the genset base)
4. Auto start control panel (already mounted on the genset base)
5. MCCB mounted (already mounted on the genset base)
6.12/24V DC Electric start system with lead-acid type starting batteries
7. Anti-vibration mountings (already mounted on the genset base)
8. With fuel tank for 6-8 hours running.
9. Industrial silencers with flexible connects and elbow (already mounted on the genset base)
10. Test report of generator, Set of drawings and O&M manuals
11. A set of digital automation controllers
12. A high acoustic canopy (for silent type only)
13. Standard tools kit

Terms:
Global Warranty: 12 months after installation or 1000hrs running, depend on which come to earlier.
Delivery / Manufuacuring time: 1-4 weeks after receiving down payment

Quality Standards:
Our diesel generating sets meet the following standards: GJB1488, GB/T2820, GB1105, GB/T12786-91, ISO8525, ISO8525-3-5-6. ISO8528
Gensets Factory Testing:
Each our generating sets must get through 1 hour load test for running 0%, 25%, 50%, 75%, 100% and 110% load before dispatch, all protective devices, control functions are simulated and it's system checked, proved and then passed for dispatch. A test certificate can be provided upon request.

												"CD" SERIES: 50Hz / 1500rpm, 3 Phase, PF=0.8 380/220V, 400/230V, 415/240V (ajustable ) as standard
Genset Prime Power		Genset Standby Power		DEUTZ Engine	Engine Max. Power	Cyl.	Asp.	Gov.	Cons. 100% (L/H)	Stamford Alternator	Alternator Prime Power	dB(A) at 7m	Fuel Tank	Dimension L x W x H (mm) / Kgs				Loading Units 40" GP/ HC
KVA	KW	KVA	KW	Model	KW	Cyl.	Asp.	Gov.	Cons. 100% (L/H)	Model	KVA	dB(A) at 7m	Liters	Open Type		Silent Type		Open	Silent
25	20	27.5	22	D226B-3D	30	3	M	NA	5.4	PI 144E	25	67	60	1650x760x1280	780	2350x980x1350	1150	30	10
30	24	33	26.4	D226B-3D	30	3	M	NA	6.5	PI 144G	30	67	70	1650x760x1280	780	2350x980x1350	1150	30	10
37.5	30	41	33	TD226B-3D	45	3	M	TC	8.1	PI 144J	37.5	67	85	1650x760x1280	810	2350x980x1350	1210	30	10
45	36	50	40	TD226B-3D	45	3	M	TC	9.1	PI 144K	45	67	100	1650x760x1280	810	2350x980x1350	1210	30	10
60	48	66	53	TD226B-4D	60	4	M	TC	13.1	UCI 224E	63	67	130	1950x760x1320	950	2550x980x1350	1370	30	8
75	60	82.5	66	BF4M2012C	70	4	E	TC	14.4	UCI 224F	72.5	67	150	1950x760x1320	1060	2600x980x1350	1500	30	8
85	68	94	75	TD226B-6D	90	6	M	TC	18.3	UCI 224G	85	70	180	2150x810x1400	1210	2900x1000x1450	1800	14	8
100	80	110	88	TD226B-6D	90	6	M	TC	21.4	UCI 274C	100	70	220	2150x810x1400	1210	3000x1000x1450	1900	14	6
105	84	115	92	BF4M1013EC	95	4	E	TC	20.2	UCI 274C	100	70	210	2150x810x1400	1250	2850x1000x1350	1700	14	8
125	100	137	110	TBD226B-6D	120	6	M	TW	26.9	UCI 274D	125	70	270	2220x810x1400	1350	3000x1000x1450	2200	14	6
150	120	165	132	TBD226B-6D5	132	6	E	TW	30.7	UCI 274F	160	70	300	2220x810x1400	1400	3100x1000x1450	2300	14	6
165	132	180	144	BF6M1013EC	146	6	E	TW	31.8	UCI 274F	160	73	320	2350x950x1500	1650	3100x1100x1490	2300	10	6
180	144	200	160	BF6M1013ECP	166	6	E	TW	34.7	UCI 274G	182	73	350	2350x950x1500	1650	3100x1100x1490	2300	10	6
200	160	220	176	BF6M1013FCP	183	6	E	TW	38.5	UCI 274H	200	73	385	2350x950x1500	1650	3100x1100x1490	2350	10	6
225	180	250	200	BF6M1015-LA GA	208	6	E	TC	43.4	UCDI274J	230	76	440	2450x980x1530	1870	3300x1200x1560	2600	8	3
250	200	275	220	BF6M1015C-LA G1A	228	6	E	TC	47.7	UCDI274K	250	76	480	2450x980x1530	1870	3300x1200x1560	2600	8	3
287	230	315	253	BF6M1015C-LA G2A	256	6	E	TC	54.9	HCI 444D	300	76	550	2450x980x1530	2000	3300x1200x1560	2600	8	3
312	250	343	275	BF6M1015C-LA G3A	282	6	E	TC	60.2	HCI 444ES	325	76	600	2450x980x1530	2000	3400x1200x1560	2850	8	3
350	280	385	308	BF6M1015C-LA G4	310	6	E	TC	67.5	HCI 444E	350	76	680	2500x1050x1550	2200	3400x1250x1560	2850	8	3
375	300	412	330	BF6M1015CP-LA G	328	6	E	TC	73.4	HCI 444FS	380	80	740	2500x1050x1550	2300	3400x1250x1560	3000	8	3
437	350	481	385	BF8M1015C-LA G1A	388	8	E	TC	84.4	HCI 544C	455	80	850	2500x1050x1550	2500	3500x1350x1700	3200	8	3
450	360	495	396	BF8M1015C-LA G2	403	8	E	TC	88	HCI 544C	455	80	880	2500x1050x1550	2500	3500x1350x1700	3200	8	3
462	370	509	407	BF8M1015CP-LA G1A	413	8	E	TC	90.5	HCI 544C	455	84	910	2700x1100x1550	2600	3500x1350x1700	3300	8	3
500	400	550	440	BF8M1015CP-LA G2	448	8	E	TC	97.8	HCI 544C	500	84	980	2700x1100x1550	2600	3500x1350x1700	3500	8	3
512	410	564	451	BF8M1015CP-LA G3	458	8	E	TC	100.3	HCI 544D	500	84	1000	2700x1100x1550	2750	3600x1350x1700	3750	8	3
537	430	591	473	BF8M1015CP-LA G4	482	8	E	TC	105.2	HCI 544D	500	84	1050	2800x1100x1550	2750	3600x1350x1700	3900	8	3
575	460	632	506	BF8M1015CP-LA G5	509	8	E	TC	112.5	HCI 544E	600	84	1100	2900x1100x1550	2900	3800x1350x1700	4100	8	3

Prod Model:	TD226B-6D
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Engine Brand:	Cummins China Dongfeng / Chongqing
Alternator Brands:	Stamford / Leroy Somer / China Alternator
Control Panel:	Smartgen / Comap / Deepsea / Harsen
Feul Tank Capacity:	Genset 6-10 Hours Continuous Running
Global Warranty:	12 Months / 1000 Running Hours
Genset Types:	Open Frame / Silent Type / Trailer / Auto Station
Certificates:	CE, ISO, Soncap
Options For Daily Operation:	ATS, ABB Breaker, Trailer, Parelleling System, etc
Synchronization System:	Synchronization Cabinet with ATS
Unique Advantage:	Cscpower Supply Gensets to China Army
Cooling Method:	Water Cooling
Stroke:	Four Stroke
Installation Method:	Fixed
Type:	Basic Diesel Generator
Output Type:	AC Three Phase

Fuzhou Century Sea Co., Ltd is a global leading manufacturer of diesel generator sets, alternator and transformer. We are located in Fuzhou, near fuzhou sea port and Fuzhou airport.
We supply diesel generators set, alternator, light tower, trailer genset, marine generators and transformer. The power is range from 10kVA to 3000kVA. We can provide diesel generator with cummins, Duetz, Doosan Daewoo, China egine with stamford, Leory somer alternator, etc. We also manufacture alterantor and medium frequency inverter by ourself. Besides, we have ability to customize gensets according to customers' special demands.

Dedicated to strict quality control and thoughtful customer service, our generator sets have been exported to Europe, South America, Africa, etc. We'd like to join hands with friends from all over the world in different domains on the basis of equality and mutual benefits. With principle of "credit today is future tomorrow", we are looking for agents and talents to join with us and create a great future.

Why to choose CSCPOWER?
1. Army quality, reasonable price
2. Quick delivery time
3. Excellent pre-sale and after sale serice
4. Strong technical support
