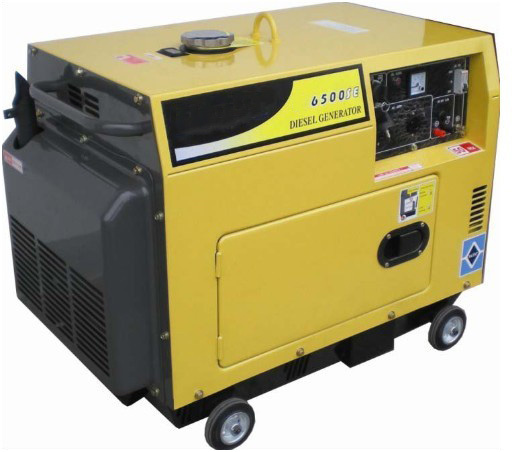

Disel Generator,
It can fit with Deutz, Cummins, Open or Slient;
Cowin Electrical Co., Ltd, is located in the largest manufacturing base of low-voltage electric equipment of Liushi China, which is called "the Electric Device Metropolis of China". Cowin Electrical Co., Ltd is a leading company in the electrical indutry, import and export trade.
|
GENERATOR |
Model |
CE6500SE |
|
Frequency(HZ) |
50 |
60 |
|
Max.output(kw) |
5 |
5.5 |
|
Rated output(kw) |
4.5 |
5 |
|
Rated.AC voltage(V) |
120,220,230,120/240 |
|
Power factor(cos) |
COS=1 |
|
DC output (V) |
12V/8.3A |
|
Phase |
Single phase |
|
Alternator type |
self-excited,2-pole,single phase alternator |
|
Starting system |
Electric |
|
Operatong noise lecel(at 7m) |
68~72 |
|
Fuel tank capacity(L) |
16 |
|
Continues work(hr) |
7.3 |
7 |
|
ENGINE |
Model |
HR186F |
|
Engine type |
Single-cylinder,vertical,4-stroke air-cooled diesel engine |
|
Bore×stroke(mm) |
86×72 |
|
Fule |
0# or -10#light diesel oil |
|
Lubricatiom oil volume(l) |
1.65 |
|
Combustion system |
Direct lnjection |
|
STANDARD FEATURES |
Voltmeter |
yes |
|
AC Output Socket |
2 |
|
AC circuit breaker |
yes |
|
Oil warning light |
yes |
|
Oil alert |
yes |
|
OPTIONAL FEATURES |
DC circuit breaker |
optional |
|
Calculagraph |
optional |
|
Big Wheel |
optional |
|
Three phase volatge |
optional |
|
Current meter |
optional |
|
ATS |
optional |
|
Remote control |
optional |
|
Welding |
optional |
|
DIMENSIONS |
Dimension(L×W×H)(mm) |
950×560×710 |
|
Dry weight(kg) |
175 |
176 |
|
20FT |
72 |
