1. Product Features:
1) SCF Supercritical generator

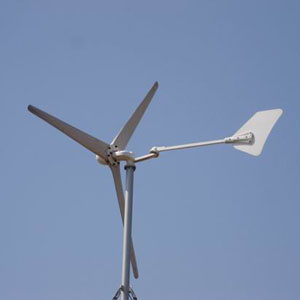

Hummer 500W wind generator adopts SCF supercritical technology which won a gold award in the 37th Salon Eureka in Brussels. This technology significantly reduces generator's weight and size down to 25% to 30% of the traditional one, and the production efficiency is 25% to 30% higher. This ensures that the generator functions perfectly in small wind condition.
Rated output of it is 500W, maximum output is 1000W. Generator weight just 6.5kg.
2) SKF bearings
Hummer 500W wind turbine adopts two SKF (Svenska Kullager Fabriken) bearings which are produced by the largest bearing manufacturer in the world, with the perfect internal geometric structure, known for its life-time endurance and reliable quality. Ordinary bearings need to be changed every two or three years, while SKF bearings can greatly reduce the maintenance costs on this matter.
3) Low noise
The design of the rotor blade of Hummer 500W wind turbine absorbs the highlights of the small aircraft's airfoil, which is compliance with the aerodynamic standards. It provides a more aesthetic look and a higher efficiency and reduces the noise production as much as possible.
4) Double braking protection
Hummer 500W small wind generator wind turbine adopts the double braking protection system, which are the yawing mechanism and the electromagnetic braking system to regulate the rotation of the wind turbine. It is safe and convenient to shut down the whole system both manually and automatically.
Application area:
1) Housing, office, farm and factory;
2) Telecommunications Station
3) TV Transfer Station;
4) Monitoring Station (military, hydrology, observatory)
5) Water-pumping Station;
Currently product range:
1)500W-200kW wind turbine Off-grid /Grid-tied;
2)400W-600W Wind-Solar LED street light and traffic light;
3)Wind-Solar hybrid generating system.
4)Wind-Solar-Diesel hybrid generating system.
|
Rated Power(W) |
500 |
|
Maximum output power(W) |
1000 |
|
Charging voltage(V) |
DC 24V |
|
Blade quantity |
3 |
|
Blade material |
GRP |
|
Blade diameter(ft) |
8.2(2.5m) |
|
Start-up wind speed(mph) |
7(3.0m/s) |
|
Rated wind speed(mph) |
16(7.0m/s) |
|
Rated rotating rate(r/min) |
600 |
|
Wind energy utilizing ratio(Cp) |
0.48 |
|
Generator output |
Frequency conversion AC |
|
Output AC frequency(Hz) |
0-300 |
|
Generator efficiency |
> 0.78 |
|
Tower freight(ft. ) |
20(6m) |
|
Generator weight(lb) |
14(6.5kg) |
|
Suggested battery(Ah) |
120/150 |
Anhui Hummer Dynamo Co., Ltd. is a professional wind generators manufacturer with high-tech in the field of wind energy.
We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.
There are more than 200 employees in the company including 40 R&D staff. And the factory covers over 30, 000 square meters with the workshop more than 7.5 Acres. There are more than 100 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.
All Hummer small-sized wind generators including wind generator from 400W to 200KW, which have acquired CE certificate. Meanwhile, Hummer' S wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.
Hummer' S wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional' S. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.
Hummer aims to be a worldwide influential enterprise as well as the best domestic manufacturer and service provider.
