Home Generator Products Silent Generator

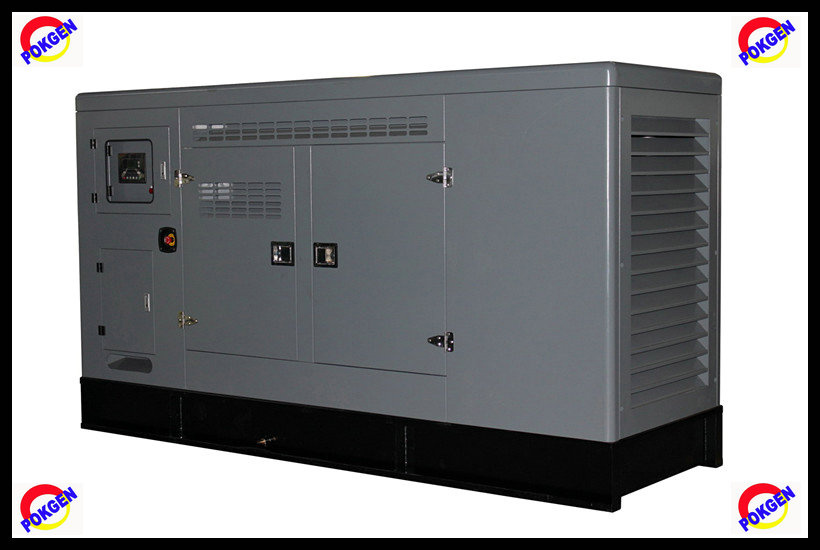

Silent Generator

Silent Generator
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
The specification of diesel generator:

Ranging from 5 to over 2, 600 HP, the engines power more than 5, 000 different applications from over 1, 000 major equipment manufacturers in the construction, power generation, materials handling, agricultural and general industrial markets.
General Technical Data:
1. Engine: UK Perkins industrial diesel engine
2. Alternator: Leroy Somer, Stamford, Marathon
3. Output range: 7-2000kw prime
4. Frequency: 50 & 60Hz
5. Speed: 1500 or 1800rpm
6. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire
7. Voltage: 220/380V, 230/400V, 240/415V, etc
8. Automatic digital control panel, auto start with AMF function

Genset Features:
1. UK Perkins industrial diesel engine
2. Radiator 40° C max, fans are driven by belt, with safety guard
3. Leroy Somer, Stamford, Marathon
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8.10-hour operation base tank
9. Mould case circuit breaker
10.24V DC start motor and storage battery
11.24V charge alternator
12.24V batteries, rack and cable
13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
14. Comply with ISO and CE standards.
15. All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

Engine Features:
1. UK Perkins industrial diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily

Alternator Features:
1. Stamford, Leroy Somer, Marathon
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤ ± 1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA

Control Panel:
Automatic control panel (AMF), LCD display
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Alternator: Leroy Somer, Marathon, Stamford and Others
Rated Voltage: 220/380V, 230/400V, 110/220V, 240/416V, 254/440
Speed: 1500rpm, 1800rpm
Frequency: 50Hz, 60Hz
Warranty: 1 Year or 1000hrs, Which Comes Frist
Controller: Deepsea, Woodward, Deif, Comap, Smartgen
Color: Blue, Yellow, White, as Per Requirement
Output Type: AC Three Phase
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Basic Diesel Generator
Highly fashionable styles, reliable quality and attractive prices are our advantages. We particularly cherish cooperation with customers. We deeply believe that these factors enable us to be a long-standing business enterprise in today''s competitive markets. We spare no effort in meeting each customer''s requirements and winning their satisfaction.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the high quality at the reasonable price.
