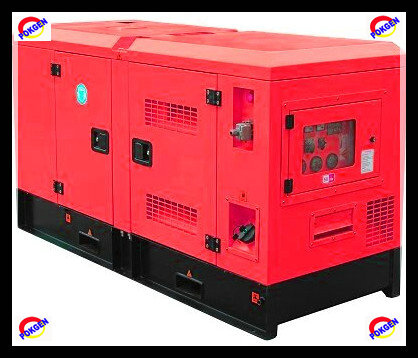

60kVA/48kw Silent Generator (close type)
Silent Generator Supply Scope:
1. Engine, alternator, radiator, auto control panel.
2. Base frame, base fuel tank, Flexible pipes, flange, exhaust silencer.
3. Battery, battery charger, battery wires, internal cables, circuit breaker.
4. Manual books of engine, alternator, genset, control panel, wires diagram
ENGINE DATA:
2. Model: 1103A-33TG2
3. Engine speed: 1500rpm
4. Engine power: Prime power(Gross): 55 kWm / 73.8 bhp
(Net): 53.8 kWm / 72.1 bhp
Standby power(Gross): 60.5 kWm / 81.1 bhp
(Net): 59.3 kWm / 79.5 bhp
GENERAL DATA:
1. Number of cylinders: 3
2. Cylinder arrangement: Vertical in-line
3. Cycle: 4 stroke
4. Aspiration: Turbocharged
5. Combustion system: Direct injection
6. Compression ratio: 17.25: 1
7. Bore and Stroke: 105*127 mm
8. Displacement: 3.3 litres
9. Direction of rotation: Anti-clockwise viewed on flywheel
10. Cooling system: Water cooled
11. Total coolant capacity(inc. Radiator): 10.2 litres
12. Total lubrication system capacity: 7.9 litres
FUEL CONSUMPTION:
(100%load )
220g/kw. H
Other Optional part:
Silent canopy, movable trailer, ATS, synchronization system, etc.
|
ALTERNATOR GENERAL DATA: |
Silent generator |
|
Manufacturer |
Leroy-somer Electro-technique (Fuzhou) Company Ltd. |
|
Model |
LSA46.2 M5 |
|
Output power |
48LSA43.2 M45kw |
|
AVR model |
R250 |
|
Number of phase |
3 |
|
Power factor (Cos Phi) |
0.8 |
|
Altitude |
≤ 1000 m |
|
Overspeed |
2250RPM |
|
Number of Pole |
4 |
|
Exciter type |
Shunt |
|
Insulation class |
H |
|
Voltage regulation |
± 0.5% |
|
Sustained short circuit current |
300% (3 IN): 10s |
|
Total harmonics (TGH/THC) |
< 4 % |
|
Wave form: NEMA = TIF |
< 50 |
|
Wave form: I. E. C. = THF |
< 2% |
|
Coupling |
single |
|
Coupling |
Direct |
