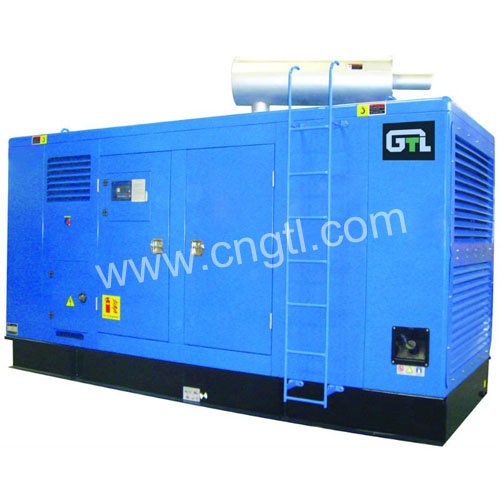

Silent Generator Set

Product: Silent generataor set, Soundproof Generator

Detailed information:

This genset has perfect-weather service property and the outside steel material features preferable capability.

Special noise elimination setting restrains machinery noise to be lowered 62~75Db.


Detailed information:

1. Canopy: Soundproof, waterproof

2. Noise level: Below to 75Db by 7m distance (62~75Db)

3. Soud attenuated enclosure: Special noise elimination setting restrains the machinery noise and the unit has perfect all-weather service property and the outside steel material features preferable corrosion prevention capability

4. Sound-absorbing fire-retardant cotton

5. Metal parts are coated with electrostatic powder paint

6. Size: 10 container

7. Engine: Cummins or clients enquiry

8. Alternator: Leroy Somer, Stamford or Marathon

9. Rated Frequency: 50HZ/60HZ

10. Rated Speed: 1500 RPM/1800RPM

11. Phase: Three phase, four wires

12. Protection: IP21. IP22, IP23

13. Insulation Class: H

14. Water-cooled

15.8hrs operation base tank

16. Key start/auto start

17. Sound-proof/weather-proof canopy is optional




18. Control system:

A)Automatic alarm system: The unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature the oil pulls down, over speed, over load and over current

B) Operation display:

I)Unit voltage, tri-phase load current and frequency display

Ii)Water temperature, oil pressure display

Iii)Fuel level, fuel temperature dieplay

Iv)Audible and visual alarm lamps and buzzers


19. Starting system: DC alternator is used to sstart engine

20. Short circuit protection: MCCB ari switch

21. Cooling system: Combined cooling water tank fittled to meet the requirement of radiation at ambient temperature

22. Filter system: Oil, fuel and air filter

23. Accessories: Exhaust elbow, bellow, muffler


24. Supply standard collocation:

A)Diesel engine with all accessories, 3 filter, electric systems

B)Alternator

C)Steel structure

D)Fan and water tank cooling system

E)Flange connector

F)12/24 V starting motor and charge engine

G)Air cleaner, fuel cleaner, oil cleaner

H)On-board control panel

I)MCCB air conservation switch

J)12/24V starting accumulator and Battery line

K)Set shock absorber

L)High-efficient silencerlnner
