. Professional generator OEM factor in guangzhou
. Stock available
. Yangdong generator 20kVA
. SGS, SONCUP

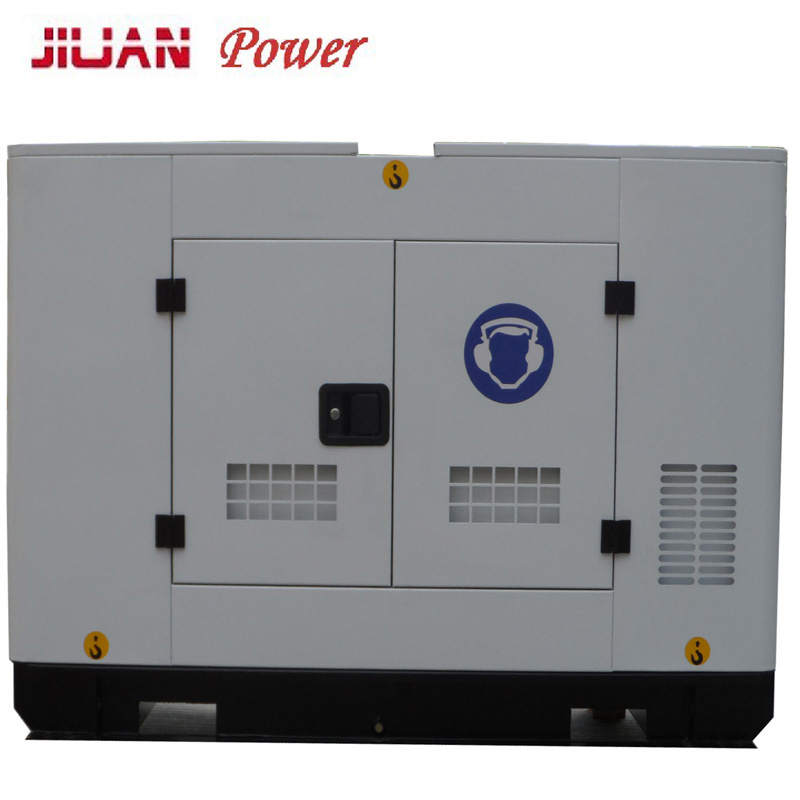

20kVA Yangdong generator self start generator
Yangdong OEM Factory in City GUANGZHOU
Yangdong Generator (yangdong diesel generator) power range 10-50kVA
JIUAN Generator production range as follows:
Diesel Generator Set open type or silent type (soundproof type)
Generator Diesel Engine: Cummins, Perkins, Perkins Lovol, Deutz, WeiChai, Yangdong, Quanchai, ISUZU etc.
Generator with alternator: Stamford, Marathon, Leroy Somer etc.
Rated output: 5kVA - 2000kVA
Rated frequency 50/60 Hz
Rated voltage 230/400, 220/380, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤ 65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection
Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel
10kVA, 50kVA, 60kVA, 100kVA, 150kVA, 200kVA, 250kVA, 300kVA, 600kVA, Available
|
Diesel Generator Set 10 KVA |
Generator
Specifications |
Generator Model |
CD-Y15KW/20KVA |
|
Generator Prime Power |
15KVA/20KW |
|
Generator Standby Power |
|
|
Generator Engine Model |
YD490G |
|
Generator Alternator |
Stamford;Marathon;Leroy Somer;Faraday;Stamford copy |
|
Canopy for Choice |
Super silent;Silent;Open frame;Trailer |
|
Controller |
Smartgen or Deepsea |
|
Dimensions (L*W*H) |
1700*960*1060mm=1.72992CBM |
|
20FT/40HQFT Container |
17PCS/37PCS |
|
Generator Warranty |
1800 hours or 1 year subject to the ealier one. |
|
Generator MOQ |
1PCS |
|
Certificate |
SGS;Cummins Authorized Factory;TUV;Soncap |
|
Payment |
T/T or Cash |
Please give detail needs in your inquiry, so that we can make power solutions for you.
|
Generator Set Model |
CDY-15kw/20kva |
|
Generator Set Power |
15kw/20kva |
|
Generator Powered by Yangdong Engine |
|
Diesel Engine Model |
YD490G |
|
Engine Characters |
Water-cooled, in line, 4-cYDle, direct injection, 1500rpm |
|
Bore x Stroke (mm) |
90x100 |
|
Rated Output |
21kw/26kva |
|
Fuel Consumption (g/kw.hr) |
262 |
|
Lube Consumption (g/kw.hr) |
2.72 |
|
Compression Ratio |
18 |
|
Starting |
Electric (12V) |
|
ALTERNATOR MODEL |
Newage Stamford PI144D or Leadtech LTG184E |
|
Rated Power |
15KW/20kva brushless with AVR |
|
Voltage (V) |
220/380V 230/400V 240/415V 127/220V |
|
Current (A) |
28 |
|
FreYuency (Hz) |
50 |
|
Power Factor (cos) |
0.8 |
|
Brush/Brushless |
Brushless |
|
Dimensions (LxWxH) mm |
S: 1700x960x1060 |
|
Gross Weight (KGS) |
600 |
|
20FT |
12 PCS |
|
Controller |
Smartgen 6110 or Deepsea 7320 |
|
Standard |
Muffler |
|
|
Battery 80A*1 |
|
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
