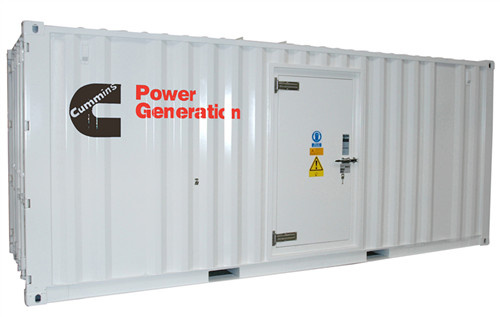

Silent diesel generators
1. Silent generator with CE certificate
2. Noise less than 70dB
3. Silent canopy made by container
Generator Data |
|
Generator type |
Silent type |
Noise level |
80dB at the distance of 7 meters |
Generator Model |
JG320GF |
Prime power |
320KW/400KVA |
Standby power |
352KW/440KVA |
Voltage |
380V/220V |
Frequency |
50HZ/1500 rpm |
Power factor |
0.8(lag) |
Overall dimension |
6102× 2438× 2591mm |
Weight |
5500KG |
Overload |
10% MAX. |
Governor type |
Electric |
Altitude derating |
1% for each 100m above 1000m |
Temperature derating |
2% per 5° C above 55° C |
Engine |
|
Brand |
CUMMINS |
Model |
NTAA855-G7A |
Configuration |
4 cycle, 6 cylinder in line |
Aspiration |
Tubocharged / AIR-AIR cooled |
Output |
Rated output |
Standby output |
366KW |
407KW |
Bore and Stroke |
140× 152mm |
Rated Speed , rpm |
1500 |
Displacement |
14.0L |
Fuel consumption |
201g/kw. h |
Starting method |
24 Voltage DC , electric |
Engine filter system |
Dry type air filter, double fuel filter, oil filter,
coolant filter |
Alternator |
|
Brand |
STAMFORD |
Model |
HCI444F |
Capacity |
Rated output |
Standby output |
320KW/400KVA |
332KW/415KVA |
Voltage |
380V/220V |
Frequency & speed |
50HZ / 1500rpm |
Power factor |
0.8(lag) |
Exciter type |
Brushless , self-excitingh |
Ambient temp. |
-15° C-55° C |
Phase and wire |
3 phase and 4 wires |
Isolation level |
H |
Auto voltage regulators(AVR) |
An Electronic AVR with 3 phase , sensing for regulations of 0.5% or better and improved
Performance is need , following control to be included in the AVR.
a)Voltage drop
b)Voltage level
c)Voltage gain
d)Shut down indicators
|
Protection class |
IP23 |
Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd has been established for over 18 years, reformed from a national military industrial enterprise. Fengde owns a experienced and professional staff group, as well as senior engineer, technician and salesman; Now is known as a leading manufacturer in supplying of diesel generator (for both industrial and marine use) and Vessel Switchboard in China.
We have been authorized by CE and the Quality management system of ISO9001: 2008, and have been appointed as a vessel inspection unit by the China Classification Society CCS. Our marine generator and vessel Switchboard can be approved by CCS, ABS, BV, DNV, GL, LR, GL, RS etc. With steady quality, quick and professional service, Fengde gains general recognition from users domestic and abroad.
We are sincerely looking forward to establishing the business relationship with you for our mutual benefit. We are at your service!
