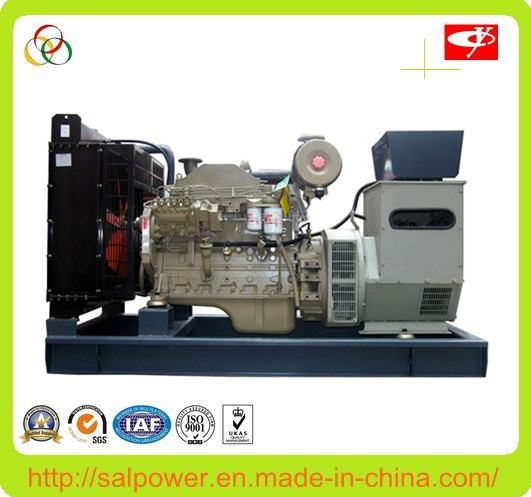

Silent Diesel Generators (6CTAA8.3-G2)
Price: |
US $ 15776/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
1. Parameter: Advertised Voltage: 380/220V Frequency: 50/60Hz Speed: 1500/1800 r. P. M Power Factor: 0.8(lagging) Protection Standard: IP21-IP23 Model of Connection: 3 phase 4 lines
2. Diesel engine: Cummins Heavy load durable, four-stroke, water cooled engine. Excellent transient response. Four valves per cylinder, stainless steel crankshaft, bolt, cast iron steel, replaceable humid cylinder liner. 24V DC safe isolate valve. Dual spin-on paper element fuel filter. Gen-sets equipped with dual flexible fuel union pipe.
3. Alternator: Zhongqi/ Stamford/ Marathon/ Engga/ Leroy Somer Brushless, four-pole revolving field, single bearing and drop proof screen protected. Class H insulation. IP21-IP23 protection standard. Dynamically balanced rotor to BS 5625 grade 12.5. High-quality lubrication sealed for long-life bearing.
4. Control system: Cummins standard control module Completed gen-set parameter display, perfect protection and control function. All English display, friendly operation interface. Excellent anti-jamming function, adapt to extreme condition. Independent over-load protection. Special on-off pre-warning system. Unique sensors protection, adapt to all sensors.
Genset Model | prime/standby power | Cummins engine | Fuel consumption (L/h) | Genset size (mm) | Weight (Kg) |
KW | KVA | Engine model | Cylinder(qty. ) | Bore*Stroke (mm) | Displacement(L) | L | W | H |
|
SAL-20 | 20/22 | 25/27 | 4B3.9-G2 | 4L | 102*120 | 3.9 | 5.2 | 1750 | 695 | 1100 | 670 |
SAL-30 | 30/33 | 37/41 | 4BT3.9-G2 | 4L | 102*120 | 3.9 | 7 | 1750 | 695 | 1100 | 700 |
SAL-45 | 45/50 | 56/63 | 4BTA3.9-G2 | 4L | 102*120 | 3.9 | 10 | 2060 | 710 | 1300 | 850 |
SAL-80 | 80/85 | 100/106 | 6BT5.9-G2 | 6L | 102*120 | 5.9 | 21 | 2120 | 790 | 1323 | 1000 |
SAL-90 | 90/100 | 112/125 | 6BTA 5.9-G2 | 6L | 102*120 | 5.9 | 31 | 2120 | 790 | 1323 | 1105 |
SAL-105 | 105/114 | 130/142 | 6BTAA5.9-G2 | 6L | 114*135 | 5.9 | 33 | 2250 | 840 | 1430 | 1150 |
SAL-145 | 145/160 | 181/200 | 6CTA8.3-G2 | 6L | 114*135 | 8.3 | 34 | 2800 | 850 | 1433 | 1450 |
SAL-173 | 173/190 | 216/238 | 6CTAA8.3-G2 | 6L | 140*135 | 8.3 | 43 | 2900 | 850 | 1454 | 1650 |
SAL-200 | 200/220 | 250/275 | 6LTAA8.9-G2 | 6L | 140*152 | 8.9 | 55 | 2900 | 1000 | 1454 | 1800 |
SAL-200 | 200/220 | 250/275 | MTA11-G2A | 6L | 125*147 | 11 | 54.7 | 2950 | 1100 | 1600 | 2800 |
SAL-250 | 250/280 | 312/350 | MTAA11-G3 | 6L | 125*147 | 11 | 61.3 | 3250 | 1100 | 1720 | 2940 |
SAL-200 | 200/220 | 250/270 | NT855-GA | 6L | 140*152 | 14 | 53.4 | 3000 | 1100 | 1650 | 3350 |
SAL-220 | 220/250 | 275/312 | NTA855-G1A | 6L | 140*152 | 14 | 61.3 | 3000 | 1100 | 1650 | 3400 |
SAL-250 | 250/280 | 312/350 | NTA855-G1B | 6L | 140*152 | 14 | 71.4 | 3000 | 1100 | 1650 | 3400 |
SAL-275 | 275/300 | 344/375 | NTA855-G2A | 6L | 140*152 | 14 | 71.9 | 3000 | 1100 | 1650 | 3480 |
SAL-280 | 280/310 | 350/388 | NTA855-G4 | 6L | 140*152 | 14 | 75.3 | 3000 | 1100 | 1650 | 3520 |
SAL-300 | 300/330 | 375/413 | NTAA855-G7 | 6L | 140*152 | 14 | 85.4 | 3300 | 1150 | 1650 | 3600 |
SAL-320 | 320/360 | 400/450 | NTAA855-G7A | 6L | 140*152 | 14 | 85.4 | 3300 | 1150 | 1650 | 3870 |
SAL-360 | 360/400 | 450/500 | KTA19-G3 | 6L | 159*159 | 18.9 | 97 | 3600 | 1355 | 1910 | 3970 |
SAL-400 | 400/450 | 500/563 | KTA19-G4 | 6L | 159*159 | 18.9 | 107 | 3600 | 1355 | 1910 | 4100 |
SAL-420 | 420/500 | 525/625 | KTAA19-G5 | 6L | 159*159 | 18.9 | 113 | 3720 | 1640 | 2040 | 4400 |
SAL-500 | 500/550 | 625/688 | KTAA19-G6A | 6L | 159*159 | 18.9 | 125 | 3720 | 1640 | 2040 | 4450 |
SAL-520 | 520/570 | 650/713 | QSKTAA19-G3 | 6L | 159*159 | 19 | 143 | 4345 | 1710 | 2300 | 6000 |
SAL-600 | 600/660 | 750/825 | KTA38-G2 | 12V | 159*159 | 37.8 | 167 | 4530 | 1710 | 2300 | 6950 |
SAL-640 | 640/710 | 800/888 | KTA38-G2B | 12V | 159*159 | 38 | 181 | 4530 | 1710 | 2300 | 7000 |
SAL-720 | 720/800 | 900/ 1000 | KTA38-G2A | 12V | 159*159 | 38 | 191 | 4530 | 2060 | 2300 | 7430 |
SAL-800 | 800/880 | 1000/ 1100 | KTA38-G5 | 12V | 159*159 | 38 | 209 | 4530 | 2060 | 2300 | 7550 |
SAL-900 | 900/1000 | 1125/ 1250 | KTA38-G9 | 12V | 159*159 | 38 | 214 | 4660 | 2090 | 2320 | 7900 |
SAL-1000 | 1000/1100 | 1250/ 1375 | KTAA38-G9A | 12V | 159*159 | 38 | 274 | 4660 | 2090 | 2320 | 7900 |
SAL-1000 | 1000/1100 | 1250/ 1375 | KTA50-G3 | 16V | 159*159 | 50.3 | 254 | 5650 | 2100 | 2350 | 9800 |
SAL-1100 | 1100/1300 | 1375/ 1625 | KTA50-G8 | 16V | 159*159 | 50.3 | 289 | 5800 | 2100 | 2400 | 10000 |
Prod Model: |
SALY-180 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine Brand: |
Cummins |
Rated Power:Prime/Standby(Kw): |
160/180 |
Rated Power:Prime/Standby(kVA): |
200/225 |
Rated Current(Prime)(a): |
288 |
Outline Size(Mm): |
2500*970*1500 |
Weight(Kg): |
2300 |
Oil Capacity(L): |
26 |
Cylinder Q'ty: |
6 |
Bore*Stroke: |
114*135 |
Displacement(L): |
8.3 |
Stroke: |
Four Stroke |
Type: |
Basic Diesel Generator |
Cooling Method: |
Water Cooling |
Installation Method: |
Fixed |
Output Type: |
AC Three Phase |
Speed: |
1500round/Pmin |
Guangdong Salpower Equipment Co., Ltd. is a leading generator manufacturer with a long history in Guangdong Province, and it is a large-scale enterprise specializing in R & D, production, sale and service of diesel generating set. It owns modern production equipments and high-quality scientific and R & D personnel, strong technical force, global fittings and unit purchase system and network.
With great advantage of diesel generating set R & D and high-quality after-sale service, Salpower Company has obtained fine market reputation. In this industry, it has been an important with such domestic and international manufacturers as Cummins, Perkins, Shanghai Diesel Engineering Limited, Weichai Power, Yuchai Power, Wuxi Power, Jinan Diesel Company, Stamford, Guangzhou Engga, Shanghai Qianghui, etc. Power of generating set manufactured by Salpower ranges from 30KW to 2000KW, it can cove generating sets for general purpose and various purposes. The products are extensively utilized for telecommunication system, express highway, real estate, construction project, finance system, hotel, railway, large shopping mall, hospital, factory, school, residence and other important fields. In domestic market, this Company owns a great deal of excellent clients. In addition, Salpower also tries to exploit the international market. Presently, its products have been well sold to The South America, Middle East, Africa and so on. What's more, all the products from Salpower are strictly complied with ISO9001&ISO14000, and other certifications, including SGS, CE, etc.
With the principle of "quality for survival, credit for development", Salpower is willing to provide high-quality product and perfect service to you, and is ready to cooperate with you for creating brilliant future together.
We cordially welcome vast new and frequent clients to give us call and letter for enquiry and cooperation!
A call for us, satisfaction to you!
