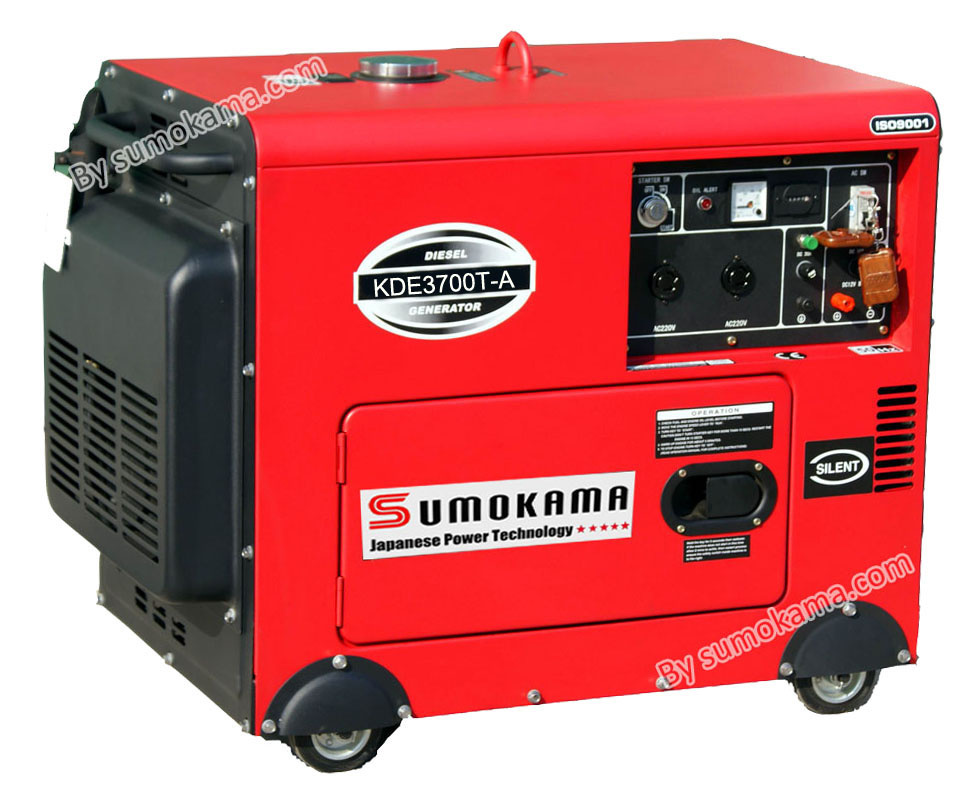

Silent Diesel Generator

Silent Diesel Generator
Price: Negotiable
Trade Terms: FOB
Min Order: 1 /Piece
Pay Type: L/C,T/T,D/P
Model: KDE6700TA-ATS
Frequency (Hz): 50/60
Rated Output (kVA): 4.5/5.0
Maximum Output (kVA): 5.0/5.5
Rated Voltage (V): 115/230 120/240
Rated current (A): 39.1/19.6 41.7/20.8
Rated rotation speed (rpm): 3000/3600
Phase No.: Single phase
Power Factor: 1.0

Excitation Mode: Self-excitation, 2 pole and constant voltage (AVR)
DC Output: 12V. /8.3A, Terminal Post
Structure Type: Soundproof
Noise Level (7m) dB(A): 72
Engine Model: KM186FA
Engine type: Single-Cylinder, Vertical, Four-Stroke, Direct Injection, Air Cooled Diesel: Bore x Stroke(mm): 86x72
Displacement (L): 0.418
Rated Power KW: 5.7/3000 6.3/3600
Fuel comsumption Rate(g. Kw/h): 275.1 281.5
Compression Ratio: 19: 1

Lubrication System: Pressure Splashed
Starting System: Electric Start with 30Ah MF battery
Fuel Type: 0#(summer)-10#(winter), diesel
Lube Oil Brand: SAE10W30 (above CD Grade)
Lube Capacity (L): 1.65
Fuel Tank Capacity (L): 15
Continuous Running Time (hr): 9.5
Overall Dimension: LxWxH (mm): 955 x 560 x 780
Dry Weight (Kg): 170
Quantity in 20FT: 72 PCS
Optiomal Features:
ATS: Optional
Digital Panel: Optional
Remote control: Optional
We reserve the right to change specifications without notice
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type: AC Single Phase
Cooling Method: Air Cooled
Stroke: Four Stroke
Installation Method: Portable
Type: Micro-Computer Control Automatic Diesel Generator
National Machinery Group Co., Ltd. It is a professional supplier of Air-Cooled Diesel Engine (Model: KM170F, KM178F, KM186F, KM186FA, KM188F-A, KM188F-B), Water-Cooled Diesel Engine (Model: ZS195, ZS1100, ZS1105, ZS1110, ZS1115, ZS1125, ZS1130), Portable Generator (KDE2500E, KDE3500E, KDE6500E, KDE3700T, KDE6700T, KDE6700TA), Industrial Generator Set (Powered by Cummins, Perkins, Deutz, Yanmar, Kubota, Lovol, Weichai, Ricardo, Shangchai, Wudong, Quanchai etc), Power Tiller(Model: KDT-105, KDT-135), Welding Generator, Water pump set (Model: KDP20, KDP30, KDP40, KDP80T) etc, with 10 yers of experience in research, development and selling, we can supply you products with good quality and reasonable price.
