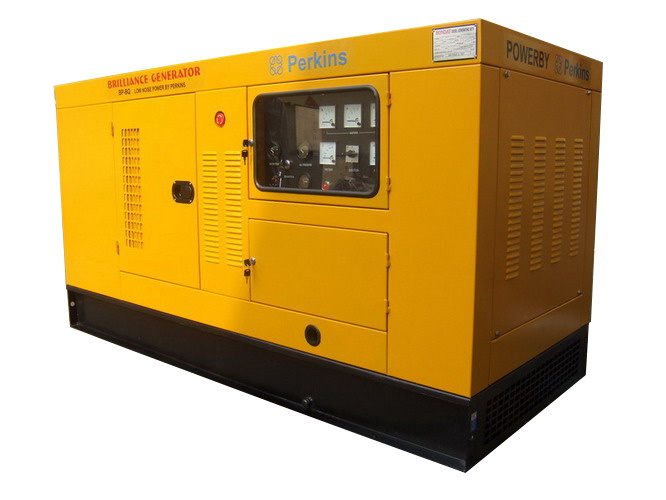

GF3 Series Lownoise Diesel Generator Sets:
With a compact structure of small size and light weight soundproof shield which has an elegant appearance is easy to be assembled or disassembled and reduces noise level effectively. The sets are operated conveniently.
It use famous brand engine, advanced generator made designs of ones own and completely sealed automatic voltage regulator(AVR). The performance in which is excellent, the running is reliable. Technical parameter of low noise diesel generator sets rated voltage 400V. Rated speed 1500r/min. Rated frequency 50Hz. Rated power factor 0.8 (lagging).
| Model | GF3-10 | GF3-15 | GF3-20 | GF3-24 | GF3-28 | GF3-30 | GF3-36 |
Engine
| Engine Model | 295AD | 395AD | 3100AD | 495AD | 4100AD | 495AZD | SNH4100ZD |
| Rated output(kw) | 13.8 | 20.6 | 23.2 | 28 | 31 | 34.3 | 40 |
| Spee(r/min) | 1500/1800 r/min |
| Starting Method | Electric starting |
| GoverningMethod | Machanical |
| Cylinder numbers | 2 | 3 | 4 |
| Fuel consumption | ≤ 257 | ≤ 254 | ≤ 251.6 | ≤ 242 |
| Cooling Starting Method | Closed water cooled/lectric starting |
| Type | Water cooling, in-line ,four-stroke, humid sylinder liner, direct injection |
Generator
| Model | TFW2-10 | TFW2-15 | TFW2-20 | TFW2-24 | TFW2-28 | TFW2-30 | TFW2-36 |
| Rated output(kw) | 10 | 15 | 20 | 24 | 28 | 30 | 36 |
| Rated Voltage(V) | 400V |
| Rated Current(A) | 18.1 | 27.1 | 36.1 | 43.3 | 50.7 | 54.1 | 65.2 |
| Frequency(HZ) | 50/60 |
| Power Factor | 0.8Lagging |
| Rated speed(r/min) | 1500 |
| Excitation | Brushless Excitation |
| Voltage Regulation | A.V.R |
| Volt. adjust(%) | 1 |
| Weig*ht(kg) | 660 | 750 | 781 | 825 | 1012 | 858 | 1045 |
| Packing Size LWH(cm) | 208*94*132 | 221*94*144 | 221*94*144 | 234*94*150 | 247*94*156 | 260*97*150 | 260*97*150 |
| Model | GF3-40 | GF3-50 | GF3-75 | GF3-100 | GF3-110 | GF3-120 | GF3-140 | GF3-180 |
Engine
| Engine Model | R4100ZD1 | R4105ZD1 | R6105ZD1-1 | R6105AZLD1 | 6BTA 5.9G 2 | 6135JZD | 6135AZD-1 | G6135ZLD |
| Rated output(kw) | 47 | 56 | 84 | 110 | 120 | 139 | 155 | 186 |
| Speed(r/min) | 1500/1800 r/min |
| Starting method | Electric starting |
| Governing method | Machanical |
| Cylinder numbers | 4 | 6 |
| Fuel consumption | ≤ 243 | ≤ 230 | ≤ 210 | ≤ 225.8 |
| Cooling Starting Method | Closed water cooled/electric starting |
| Type | Water cooling, in-line ,four-stroke, humid sylinder liner, direct injection |
Generator
| Model | TFW2-40 | TFW2-50 | TFW2-75 | TFW2-100 | TFW2-110 | TFW2-120 | TFW2-140 | TFW2-180 |
| Rated output(kw) | 40 | 50 | 75 | 100 | 110 | 120 | 140 | 180 |
| Rated Voltage(V) | 400V |
| Rated Current(A) | 72 | 90 | 135 | 180 | 198 | 216 | 252 | 324 |
| Frequency(HZ) | 50/60 |
| Power Factor | 0.8Lagging |
| Rated speed(r/min) | 1500 |
| Excitation | Brushless Excitation |
| Voltage Regulation | A.V.R |
| Volt. adjust(%) | 1 |
| Weig*ht(kg) | 1078 | 1155 | 1386 | 1507 | 1870 | 2750 | 2970 | 3190 |
| Packing Size LWH(cm) | 254*111*162 | 254*111*162 | 319*117*168 | 325*117*168 | 310*120*162 | 468*156*240 | 455*182*240 | 455*182*240 |
