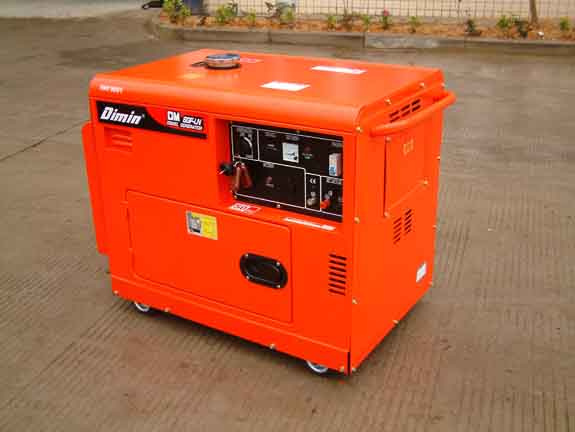

DM-GF-LN Series:3kw-5kw
Sound proof, light, air cooled, compact, easy to move, low oil protection system, special control panel for your chioce.
Model:DM5GF-LN
Rated frequency (Hz):50 / 60
Rated voltage (V):110, 120, 220, 230, 240, 220/110, 240/120
Rated output power (kw):4.5/5
Max output power (kw): 5/5.5
DC output:12V / 8.3A
Power factor:1
Phase number:Single phase
Fuel tank capacity (L):16
Continuous running time(hr at rated power):8.5/7.5
Noise level(dB(A)7m (non load to full load):70-74
Dimension (L*W*H) (mm):910*520*740
Packing size (L*W*H) (mm):950*550*780
Net / Gross weight (kg):156 / 170
Starting system:Electric start
Engine model:DM186FG(E)
Engine type:Single-cylinder, 4-stroke, air-cooled, vertical, direct-injection, diesel engine
Bore*stroke(mm):86*70
Displacement (CC):406
Rated rotation speed (r/min):3000 / 3600
Structure model:Sound proof
Low oil pressure alarm system
Model:DM6GF-LN
Rated frequency (Hz):50 / 60
Rated voltage (V):110, 120, 220, 230, 240, 220/110, 240/120
Rated output power (kw):4.5/5
Max output power (kw): 5/5.5
DC output:12V / 8.3A
Power factor:1
Phase number:Single phase
Fuel tank capacity (L):16
Continuous running time(hr at rated power):8.5/7.5
Noise level(dB(A)7m (non load to full load):70-74
Dimension (L*W*H) (mm):935*520*715
Packing size (L*W*H) (mm):960*550*770
Net / Gross weight (kg):171 / 185
Starting system:Electric start
Engine model:DM186FAG(E)
Engine type:Single-cylinder, 4-stroke, air-cooled, vertical, direct-injection, diesel engine
Bore*stroke(mm):86*72
Displacement (CC):418
Rated rotation speed (r/min):3000 / 3600
Structure model:Sound proof
Low oil pressure alarm system
Other Models:
DM3GF-LN
We are a Chinese manufacturer specialized in manufacturing and exporting diesel/gasoline engines, portable generators, gensets, generator and water pump sets, generator & welding sets, lawn mower, garden machinery etc...We have CE&EPA certification and manufacture under ISO 9001 management system. Our products are appearance patented which makes them unique from others. In addition, our engineers develop new style products every year. With reliable quality, competitive price and responsive after service, our products sell well in UK, Greece, Sweden, Middle East, Australia, North America, South America and other countries worldwide and enjoy high reputation and long term relationship with our customers. Besides our brand Dimin, OEM is accepted.
