Delivers non-flutuating power
Powerful BN 186FE diesel engine
Electric starter ensures easy starting
Low oil pressure alert system shuts down the engine automatically
Enclosed structure brings quieter operation for the owner
|

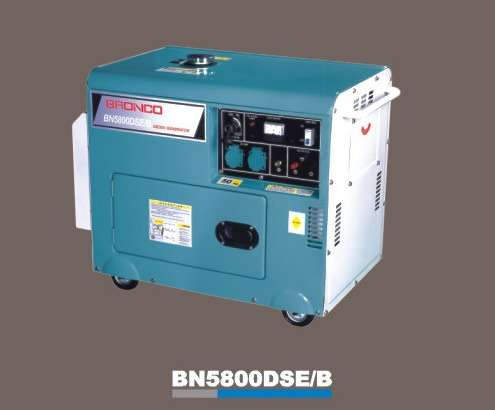

SILENT DIESEL GENERATOR |
BN5800DSE |
BN5800DSE/B |
BN5800DSE/ATS |
|
Engine model |
BN186F/E |
|
Rated frequency (HZ) |
50 |
60 |
50 |
60 |
50 |
60 |
|
Rated voltage (V) |
230 |
240/120 |
230 |
240/120 |
230 |
240/120 |
|
Rated current (A) |
19.5 |
20.8/41.7 |
19.5 |
20.8/41.7 |
19.5 |
20.8/41.7 |
|
Rated output power (KW) |
4.5 |
5.0 |
4.5 |
5.0 |
4.5 |
5.0 |
|
Max. output power (KW) |
5.0 |
5.5 |
5.0 |
5.5 |
5.0 |
5.5 |
|
Rated rotation speed (RPM) |
3000 |
3600 |
3000 |
3600 |
3000 |
3600 |
|
Power factor (cosØ ) |
1 |
|
Bore× Stroke(mm) |
86× 70 |
|
Compression ratio |
19: 01 |
|
Starting system |
Recoil starter/E-starter |
|
Rotation direction |
clockwise |
|
Lubrication system |
pressure splashed |
|
Displacement |
406CC |
|
Fuel consumption(/kw. h) |
< 273/286 |
|
Fuel type |
(mmer)#, inter)0# |
|
Lube oil type |
SAE-10W30(bove CC grade) |
|
Structure type |
silent |
|
Starting system |
Electric starter |
|
Fuel tank capacity(L) |
16 |
|
Oil capacity(L) |
1.65 |
|
Noise level (DB) |
75 |
|
Overall dimension (MM) |
960× 570× 760 |
960× 570× 760 |
960× 570× 760 |
|
Net weight (KG) |
165 |
165 |
168 |
