Generator Manufacturers and Factories

Home Generator Products Silent 800kw Diesel Generator Power by Perkins Engine

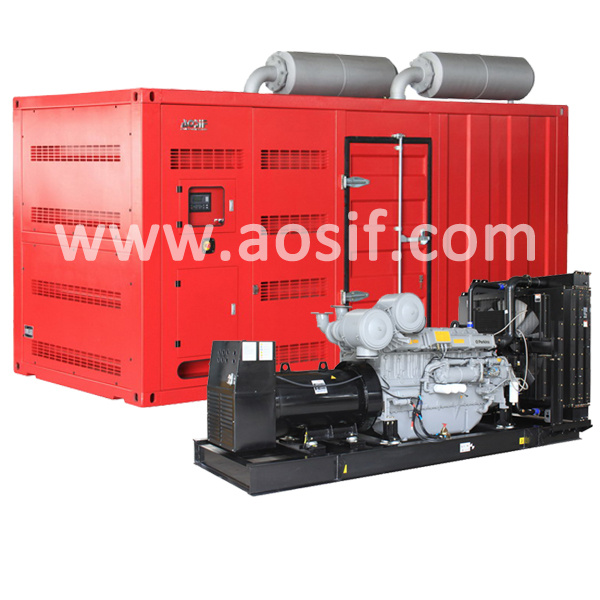

Silent 800kw Diesel Generator Power by Perkins Engine

Silent 800kw Diesel Generator Power by Perkins Engine
Price: US $ 1-250000/Set
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,D/P
Silent 800kw Diesel Generator Power by Perkins Engine

Generator Supply Scope:

1. Engine, alternator, radiator, auto control panel.

2. Base frame, base fuel tank, Flexible pipes, flange, exhaust silencer.

3. Battery, battery charger, battery wires, internal cables, circuit breaker.

4. Manual books of engine, alternator, genset, control panel, wires diagram.

Other Optional part:

Silent canopy, movable trailer, ATS, synchronization system, etc.
Genset ModelAP1100
Prime Power(50HZ)800KW /1000KVA
Standby Power(50HZ)880KW /1100KVA
Frequency/Speed60Hz/1800rpm
Voltage208-480V
PhasesThree phases, four wires
ManufacturerXiamen AOSIF Engineering Ltd.
Engine Data
Manufacturer  Perkins Engines Company Limited
Model4008TAG2A
Engine speed1800rpm
Engine power
Prime power(Gross )                894KW
Standby power(Gross)             980KW
Number of cylinders8
Cylinder arrangement60° Vee
Cycle4 stroke
Aspirationturbocharged, air to water charge cooled
Compression ratio13.6:1
Bore and Stroke160*190 mm
Displacment30.56 litres
Direction of rotationAnti-clockwise viewed on flywheel
Cooling systemWater cooled
Total coolant capacity143 litres
Total lubrication system capacity153 litres

Prod Model: AP1100
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Alternator: Leroy Somer, Stamford, Marathon
Rated Voltage: 220/380V, 230/400V, 110/220V, 240/416V, 254/440V
Engine: UK Perkins
Quality Control: ISO9001, ISO14000, CE, Soncap
Governor: Electrical Governor
Breaker: MCCB, Acb
Rated Power: 800kw /1000kVA
Frequency: 50Hz, 60Hz
Controller: Deepsea, Woodward, Deif, Comap, Smartgen
Stroke: Four Stroke
Type: Self-Starting Diesel Generator
Cooling Method: Water Cooling
Installation Method: Portable
Output Type: AC Three Phase
Speed: 1500rpm, 1800rpm
We, Xiamen AOSIF Engineering Ltd is one of generator manufacturers founded in 2001, we dedicated ourselves to the production, R & D and maintenance of various diesel generator sets, electrical control systems, and related accessories like soundproof canopy, Trailer, ect.

We always submit ourselves to cooperate with international and domestic manufactures of diesel engine and have earned good recognition and reputation from our customers due to our quality orientation under ISO9001, ISO14001, CE, SGS, Soncap Certifications and OEM Partners of Cummins, Wandi, Jichai and Leroy-somer as well, which were certified one after another since 2003.

Nowadays we have our own registered trademark "AOSIF" to be well known of all customers worldwide who have always been in business on power, and our generator sets have been exported to more than 50 countries, which focus on Asian, European, African and American. Our mission is to advance our scientific management, to improve our quality level constantly and to maximum customers' profitability.

We have manufactured many kinds of products as below,

Engine brand: Cummins, Perkins, Deutz, Doosan, Volvo, Johndeere, Man, Mitsubishi, Lovol, and Chinese local brands etc...

Alternator brand: Leroy somer, Stamford, Marathon

Power range: 5kVA-5000kVA

Delivery time: 15 to 30 days.

Quality Warranty Period: 1 year or 1000hours whichever comes first

Customers satisfaction is the aim of our team!
