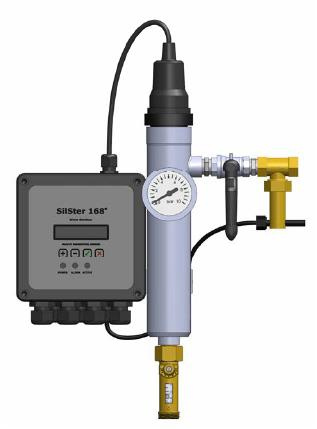

Replaceable Silver Electrode Assembly AGS-Silver Ion Steriliser/SIL15 Fresh water Silver Ion Sterilizer
Usage
SILVER ION STERILIZER use to clean and inhibit the growth of bacteria in drinking water on, for potable water on board, with sterilization and desinfection.
Features
*This silver ions sterilizeronly can kill off bacteria, germs, algae etc. In drinking water
*Easy replace Silver Electrode Assembly
*Electrolytic silver ion principle
*Power supply: 85-285 VAC; 50-60 HZ; 30 watt
*Silver ion density: 0.04-0.2 PPM
Technical specifications
Sterilization Capacity
0 - 10 m3/h water @ 0.1ppm silver ion concentration (max 0.5A / max 48V / max 20W).
0 - 25 m3/h water @ 0.04ppm silver ion concentration.
Maximum capacity is reduced by low water temperatures and/or low water conductivity, see section Performance diagram for details.
Maximum capacity is also reduced if the control unit is exposed to excessive heat.
Number of silver plates: Twin silver plate 100% purity
Voltage: 220VAC, 50/60Hz
Output current: 0~200mA
Flow meter: Pulse generating type PLC connection
Protection: IP54
Alarm output: Potential free, NO/NC
Working Pressure: Max. 0.1Mpa
Connection: DN25, for both in/outlet
Overall dimensional: 450*210*460mm
