INTRODUCTION
1FC6 brushless 3 phase synchronous generators is renewal product instead of 1FC5 series generators in 1980's.We introduced the advanced patent techniques of this generators from siemens in 1989.Our company have obained quality system certificate by siemens and technological certificats and by the ministry of machinery industry and the classification Societies of china in 1990.In recent years measurement ability of the series generators are raised through technological Introdction and tfansformations.
The series generators can be used as spare power or mobile power supply applied to railway post,mile and charter,which have gone into international market.

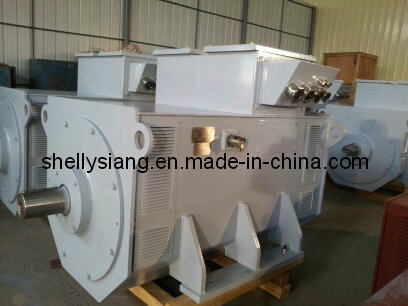

simens AC alternator IFC6 182-4(12kw) 1500rpm
If you want to know more information about siemens ACalternator 1FC6-182-4 12KW , Contact with us freely .
Type | (KW)
Rated output(KW) |
(V) |
Hz |
(rpm) | COS φ | (%) |
(Kg.m) | (kg) | (mm) |
L | S | L×W×H |
IFC6 181-4
IFC6 182-4
IFC6 183-4
IFC6 184-4
IFC6 185-4
IFC6 186-4
IFC6 187-4 | 10 12 15 20 24 28 30 | 10 12 15 20 24 28 30 | 400 | 50 | 1500 | 0.8 () (lagging) | 83.0 83.0 84.0 85.0 85.5 86.0 86.5 | 0.16 0.18 0.25 0.26 0.30 0.32 0.33 | 210 217 240 255 280 296 305 | 732×530×495
732×530×495
802×530×495
802×530×495
872×530×495
872×530×495
872×530×495 |
IFC6 223-4 IFC6 224-4 IFC6 225-4 IFC6 226-4 | 36 45 55 64 | 30 40 50 64 | 400 | 50 | 1500 | 0.8 () (lagging) | 90.9 87.0 87.5 88.0 | 0.63 0.66
0.90
0.93 | 380 390 490 500 | 852×610×605 852×610×605 1055×610×605 1055×740×605 |
IFC6 282-4 IFC6 283-4 IFC6 284-4 IFC6 286-4 | 80 100 120 168 | 75 96 100 135 | 400 | 150 | 1500 | 0.8 () (lagging) | 88.5 92.5 89.5 90.5 | 1.80
1.94
2.02
2.96 | 685 685 705 705 | 1105×740×675 1105×740×675 1105×740×675 1275×740×675 |
IFC6 351-4 IFC6 352-4 IFC6 353-4 IFC6 354-4 IFC6 355-4 IFC6 356-4 | 200 220 260 270 300 335 | 180 220 260 270 280 300 | 400 | 50 | 1500 | 0.8 () (lagging) | 90.5 91.2 91.2 91.5 91.5 92.0 | 4.3
4.4
4.8
5.0
5.8
6.1 | 1220 1250 1270 1300 1470 1500 | 1455×890×960 1455×890×960 1455×890×960 1455×890×960 1610×890×960 1610×890×960 |
IFC6 403-4 IFC6 404-4 IFC6 405-4 IFC6 406-4 | 360 400 450 475 | 335 335 400 425 | 400 | 50 | 1500 | 0.8 () (lagging) | 92.0 92.0 93.0 93.0 | 9.0
9.4
9.7
11.1 | 1710 1750 1860 1900 | 1735×1020×1040 1735×1020×1040 1735×1020×1040 1735×1020×1040 |
IFC6 453-4 IFC6 454-4 IFC6 455-4 IFC6 456-4 | 560 640 700 760 | 500 560 600 670 | 400 | 50 | 1500 | 0.8 () (lagging) | 93.5
93.5
93.5
93.5 | 15.6
16.1
17.7
18.2 | 2660 2700 2810 2850 | 1915×1210×1300 1915×1210×1300 1915×1210×1300 1915×1210×1300 |
IFC6 502-4 IFC6 504-4 IFC6 506-4 | 855 1050 1130 | 750 900 1000 | 400 | 50 | 1500 | 0.8 () (lagging) | 94.0 94.0 94.5 | 32.0 34.6 37.1 | 3250 3350 3500 | 1970×1310×1400
1970×1310×1400
1970×1310×1400 |
Type | (KW)
Rated output(KW) |
Rated Voltage(v)
(V) |
Rated FRE(Hz)
Hz |
Rated speed
(rpm) | Power factor COS φ | Efficiency(%) (%) |
Moment of inevtia (Kg.m) | Set weight(kg) (kg) | (mm)
Overall Dimensions |
L | S | L×W×H |
IFC6 562-4 IFC6 564-4 IFC6 566-4 | 1400 1500 1600 | 1250 1300 1400 | 400 | 50 | 1500 | 0.8 () (lagging) | 94.7 94.7 94.7 | 47.5 50.3 56.3 | 4150 4540 5000 | 2070×1500×1610 2070×1500×1610 2070×1500×1610 |
IFC6 354-6 IFC6 354-6 | 190 250 | 150 200 | 400 | 50 | 1000 | 0.8() (lagging) | 90.5 91.5 | 7.5 8.0 | 1360 1610 | 1455×890×960 1610×890×960 |
IFC6 404-6 IFC6 404-6 | 300 375 | 250 335 | 400 | 50 | 1000 | 0.8() (lagging) | 91.0 91.7 | 11.2 13.3 | 1750 1950 | 1735×1020×1040 1735×1020×1040 |
IFC6 454-6 IFC6 456-6 | 475 560 | 425 500 | 400 | 50 | 1000 | 0.8() (lagging) | 92.3 93.0 | 19.0 22.2 | 2700 2850 | 1915×1210×1300 1915×1210×1300 |
IFC6 502-6 IFC6 504-6 IFC 506-6 | 800 900 1000 | 710 800 850 | 400 | 50 | 1000 | 0.8 () (lagging) | 93.8
93.8
93.9 | 31.6
36.0
42.1 | 3250
3500
3800 | 1970×1310×1400
1970×1310×1400
1970×1310×1400 |
IFC6 562-2 IFC6 564-6 IFC6 566-6 | 1050 1200 1300 | 900 1000 1120 | 400 | 50 | 1000 | 0.8 () (lagging) | 93.9 94.0 94.2 | 53.1 60.8 66.9 | 4400 4850 5150 | 2027×1500×1610 2225×1500×1610 2225×1500×1610 |
IFC6 502-8 IFC6 504-8 IFC6 506-8 | 530 580 630 | 475 500 560 | 400 | 50 | 750 | 0.8 () (lagging) | 92.8 94.0 93.0 | 39.0 43.5 47.9 | 3350 3600 3800 | 1970×1310×1400 2100×1310×1400 2100×1310×1400 |
IFC6 562-8 IFC6 564-8 IFC6 566-8 | 800 900 1000 | 670 750 800 | 400 | 50 | 750 | 0.8 () (lagging) | 93.6 93.8 93.8 | 67.3 76.5 82.2 | 4300 4650 4950 | 2070×1500×1610 2070×1500×1610 2225×1500×1610 |
IFC6 502-10 IFC6 504-10 IFC6 506-10 | 440 470 530 | 400 425 475 | 400 | 50 | 600 | 0.8 () (lagging) | 92.9 93.0 93.4 | 39.1 47.3 50.4 | 3300 3700 3900 | 1970×1310×1400 2100×1310×1400 2100×1310×1400 |
IFC6 562-10 IFC6 564-10 IFC6 566-10 | 670 710 800 | 560 600 750 | 400 | 50 | 600 | 0.8 () (lagging) | 93.8 93.8 94.0 | 72.8 79.9 87.1 | 4500 4700 5150 | 2070×1500×1610 2070×1500×1610 2225×1500×1610 |
