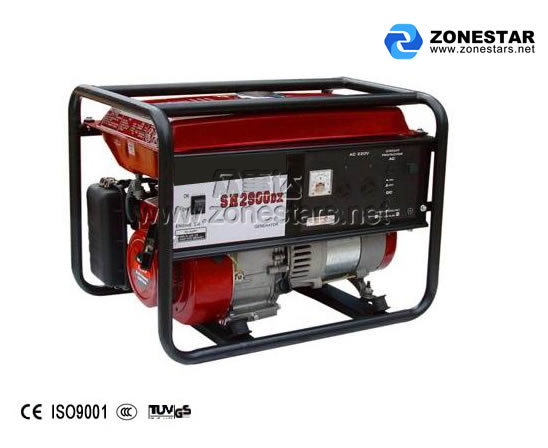

SH Series Gasoline Generator Sets
Generator: Brushless Revolving Magnetic Field, Self-excitating, 2 poles, signle-phase.
| Model | SH1900DX | SH2900DX | SH4000DX | SH5000DX | SH6000DX | SH7000DX |
| Generator | Type | Brushless Revolving Magnetic Field ,Self-excitating , 2 poles, signle-phase |
| Voltage Regulator | Condenser Type |
| Frequency(HZ) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Max. AC Output (KVA) | 1.6 | 1.9 | 2.4 | 2.9 | 3 | 4 | 4 | 4.5 | 5.5 | 6 | 6 | 6.5 |
| Rated AC Voltage | 110,120,220,230,240 |
| Rated AC Output (KVA) | 1.3 | 1.5 | 2 | 2.3 | 2.5 | 3 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 |
| Power Factor | 1 |
| Engine | Model | ZS168FA | ZS168FA | ZS168FB | ZS177F | ZS182F | ZS188FE |
| Type | Forced Air-cooled, 4-stroke, OHV |
| Displacement (ml) | 163 | 163 | 242 | 270 | 337 | 389 |
| Max.Output | 5.5hp/3600rpm | 5.5hp/3600rpm | 6.5hp/3600rpm | 9.0hp/3600rpm | 11hp/3600rpm | 13hp/3600rpm |
| Fuel | Unleaded Gasoline |
| Fuel tank Capacity(L) | 17 | 17 | 17 | 17 | 17 | 17 |
| Continuous Operating Hours (H) | 18 | 15 | 17 | 13 | 10 | 8 | 9.3 | 7.7 | 6.8 | 5.6 | 6.2 | 5.2 |
| Oil | Engine Oil SD or Higher |
| Oil Capacity (L) | 0.6 | 0.6 | 1.1 | 1.1 | 1.1 | 1.1 |
| Ignition system | Transistor |
| Starting system | Recoil / Electric |
| Operating Noise Level(7m) DB(A) | 65 | 75 | 65 | 75 | 68 | 70 | 70 | 75 | 70 | 74 | 73 | 75 |
| Standard Features | Oil Alert | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Fuel Gauge | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Voltmeter | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Pilot Light | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| AC Circuit Breaker | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Current Regulator | .- | .- | .- | .- | .- | .- | .- | .- | .- | .- | .- | .- |
| AC Socket | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Optional Features | Electric Starter | .- | .- | .- | .- | .- | .- | .- | .- | 0 | 0 | 0 | 0 |
| Battery Tray Kit | .- | .- | .- | .- | .- | .- | .- | .- | 0 | 0 | 0 | 0 |
| DC Output 12V/10A | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| DC Circuit Breaker | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 4-wheel Dolly kit | .- | .- | .- | .- | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| A.V.R | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Voltage Switch | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Engine Remark | Powered by HONDA | GX160 | GX160 | GX200 | GX270 | GX340 | GX390 |
| Dimensions | Net Dimension (L×W×H)mm | 605×422×474 | 605×495×496 | 629×495×496 | 655×511×496 | 679×511×496 |
| Over Dimension (L×W×H)mm | 621×438×504 | 621×511×526 | 649×515×536 | 675×531×536 | 699×531×536 |
| Net Weight (kg) | 38 | 42 | 61 | 65 | 74 | 80 |
| Gross Weight (kg) | 40 | 44 | 63 | 67 | 76 | 82 |
