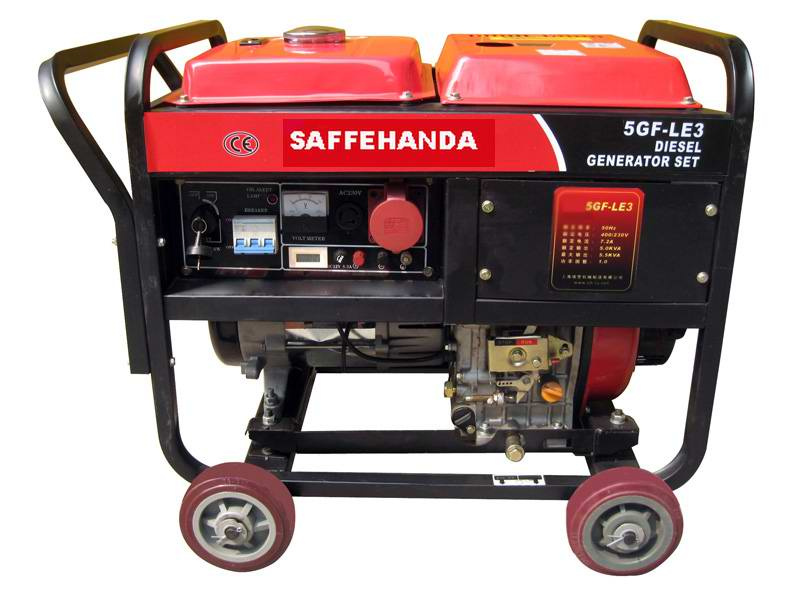

Function of SAFFEHANDA "EC" series diesel generator set is following:
New type voltage the AVR could ensure the voltage output balanced, simultaneity it has the protect function when the machine is overstep the burthen.
Low Oil Pressure Alarm System could automatric stop the generator.
Electric starting type (E) ensure the machine could quickly starting.
The equipments is couldn't lack in the meet an emergency and constant electrical source, and very broad used in minefactory, coperation, working at field, building; Suply to the vessel and naval vessels; Farming and fishing, forestand garden, gardening, hotel, commerce, working site, the home and so on.
Rated Frequency(HZ) |
50HZ |
60HZ |
Constant Power (KVA) |
4.6 |
5 |
Standby Power(KVA) |
5 |
5.5 |
AC Rated Voltage (V) |
240/380 |
240/416 |
AC Rated Current (A) |
9 |
10 |
Rated Speed (RPM) |
3000 |
3600 |
Circuit Type |
Three-phase |
Power Factor (COSΦ ) |
1.0 |
Insulation Class |
B |
Electrode Number |
2 |
Excitation Type |
Self-exciting and voltage steady output(with AVR) |
Output Voltage V |
115/230 |
120/240 |
Output Socket |
one single-phase and one three-phase |
Output Connecting number |
0 |
DC12V output |
DC connecting pole |
Packing Size: L× W× H mm |
745*505*640 |
Net Weight Kg |
100 |
Gross Weight Kg |
107 |
Noise Level(at 7m) dBA |
84-86 |
Structure Type |
Open frame |
Engine Model |
SF186FAE |
Engine Type |
Single cylinder, stand type, four stroke, injection in line |
Cylinder- Bore× Stroke mm |
1-86*72 |
Displacement (ml) |
418 |
Rated Power Kw |
5.7/3000 |
6.3/3600 |
Compression Ratio |
19: 1 |
Rated speed r/min |
3000 |
3600 |
Cooling |
Air-cooled |
Lubricating System |
Splash by hammer-blow |
Starting System |
Hand recoil starter or Electric starter |
Fuel |
0#(Summer)-10#(Winter)-35#(Jack frost) |
Lube |
SAE10W30(Up CD level) |
Capacity of Cooling Water L |
Without |
Capacity of Lube L |
1.65 |
Startup Motor V-Kw |
12V 0.8KW |
DC Generator V-A |
12V 8.3A |
DC Battery V-Ah |
12V 20-36AH |
Consumption of Fuel g/Kw. h |
275.1 |
281.5 |
Capacity of lube L |
13.5 |
Continuum run time (H) |
8 |
