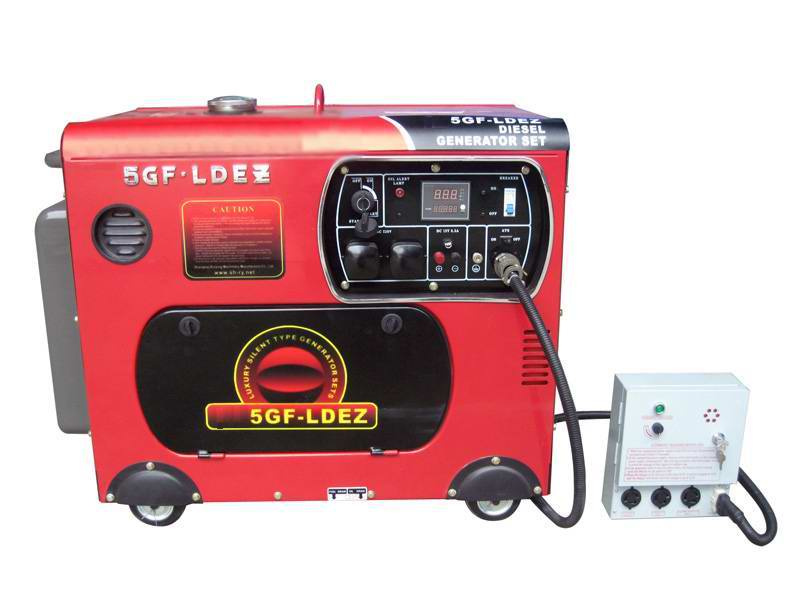

Function: With the city electric grid, the generators automatically switch to automatic control box to start generating and with the normal power supply when net power off. City electricity to be restored, the automatic switch box automatically switch to the city and the normal electric power supply, standby generator in the state, and to maintain the battery charge.
The application of frequency(Hz): 50/60;
The application of voltage(V): According to customer needs;
The application of power(W): 2KW-5KW;
Switching time(S): 3-5;
The application of model: 3GF-LDE/5GF-LDE(3);
The dimension of ATS(mm): 330x220x280.
The Functions of Series "SF" Silent Diesel Welding Generator Set As Bellow:
1\The new automatic voltage regulator to ensure a stable output voltage, at the same time have a stable voltage protection.
2\Low oil pressure warning system can automatically shut down the engine.
Electric way to start (E type) to ensure that the gen-set would be able to quick start.
3\Working voltage: 26V
4\Rated Current: 160A
5\Welding rod diameter: 2.0-4.0(mm)
|
Rated Frequency(Hz) |
50Hz |
60Hz |
|
Rated Output Power(kVA) |
4.6 |
5.0 |
|
Max Output Power(kVA) |
5.0 |
5.5 |
|
AC Rated Voltage (V) |
115/230 |
120/240 |
|
AC Rated Current (A) |
40/20 |
41.7/20.9 |
|
Rated Speed(rpm) |
3000 |
3600 |
|
Phase |
Single-phase |
|
Power Factor (cosφ ) |
1.0 |
|
Insulation Class |
B |
|
Electrode Number |
2 |
|
Excitation Type |
Self-exciting and steady output voltage(with AVR) |
|
Panel Type |
Common control panel |
|
Output Voltage(V) |
115/230 |
120/240 |
|
Output Socket |
Two single-phase |
|
Output connecting pole |
0 |
|
DC 12V output |
DC connecting pole |
|
Dimensions: L× W× H (mm) |
930× 550× 720 |
|
Packing Size: L× W× H(mm) |
990× 570× 770 |
|
Net Weight(Kg) |
175 |
|
Gross Weight(Kg) |
183 |
|
Noise Level-7m(dba) |
72-78 |
|
Structure Type |
Silent type |
|
Engine Model |
SF186FAE |
|
Engine Type |
Single cylinder, Vertical, four stroke, direct injection |
|
Cylinder-Bore× Stroke(mm) |
1-86× 72 |
|
Displacement(ml) |
418 |
|
Rated Horsepower |
10.9/3000 |
11.9/3600 |
|
Compression Ratio |
19: 1 |
|
Rated speed r/min |
3000 |
3600 |
|
Ignition System |
Blast |
|
Cooling |
Air-cooled |
|
Lubricating System |
Splash by hammer-blow |
|
Starting System |
Electric Startup |
|
Fuel |
0# Diesel (summer)/-10# Diesel (winter)-
35#(Jack frost)
Frost |
|
Lube |
SAE10W30 (Up CD level) |
|
Capacity of Cooling water(L) |
Without |
|
Capacity of Lube(L) |
1.65 |
|
Startup Motor(V-KW) |
12V 0.8KW |
|
DC Generator(V-A) |
12V 8.3A |
|
DC Battery(V-Ah) |
12V 20-36AH |
|
Consumption of Fuel(g/KW. h) |
275.1 |
281.5 |
|
Capacity of lube(L) |
16 |
|
Continue working time(h) |
9.5 |
|
Alarm System For Low Oil Pressure |
With |
|
FCL In 20” Container(sets) |
61 |
