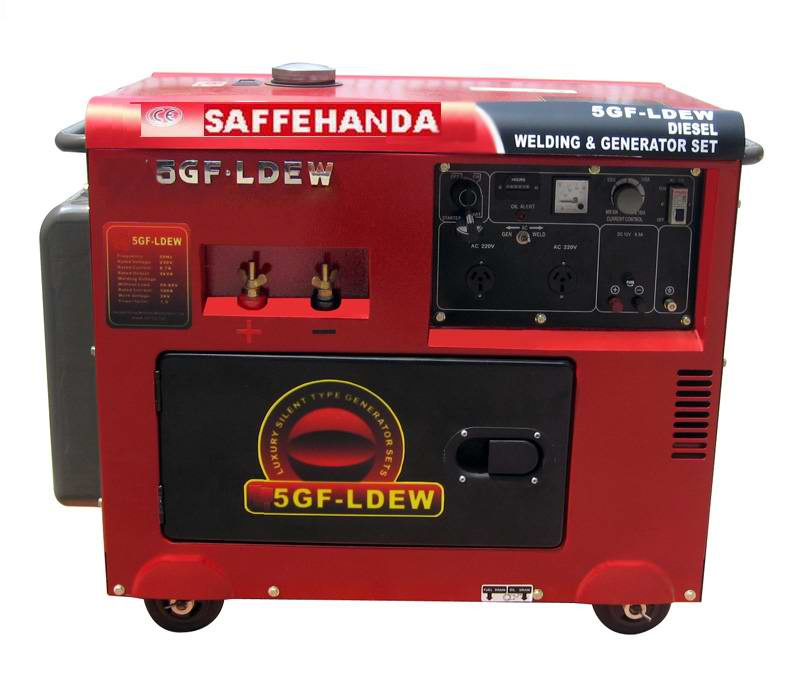

SF5GF-LDEW Power 5kw Diesel Generator
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
The Functions of Series "SF" Silent Diesel Welding Generator Set As Bellow:
1\The new automatic voltage regulator to ensure a stable output voltage, at the same time have a stable voltage protection.
2\Low oil pressure warning system can automatically shut down the engine.
Electric way to start (E type) to ensure that the gen-set would be able to quick start.
3\Working voltage: 26V
4\Rated Current: 160A
5\Welding rod diameter: 2.0-4.0(mm)
|
Rated Frequency(Hz) |
50Hz |
60Hz |
|
Rated Output Power(kVA) |
2.0 |
2.2 |
|
AC Rated Voltage (V) |
230 |
240/120 |
|
AC Rated Current (A) |
8.7 |
9.2/18.3 |
|
Phase |
Single-phase |
|
Power Factor (cosφ ) |
1.0 |
|
Welding Voltage Without Load (V) |
65-70 |
|
Rated Welding DC Current (A) |
160 |
|
Welding Voltage (V) |
25-30 |
|
Welding Load Rate |
60% |
|
CurrentRegulation Range(A) |
50-180 |
|
Electrode |
1.6-4.0 |
|
Rated Speed (RPM) |
3000 |
3600 |
|
Displacement (cc) |
406 |
|
Exciting Way |
Self Exciting, Stable Voltage |
|
Rectifier |
IGBT+Three-phase Bridge rectifier |
|
Compression Ratio |
19: 1 |
|
Insulation Class |
B |
|
Pole NO. |
2 |
|
Engine Model |
SF186FEA |
|
Engine Type |
One cylinder, 4-stroke, Air-cooling, Direct Injection |
|
Displacement |
418 |
|
Bore x Stroke |
86 x 72 |
|
Compression ratio |
19: 1 |
|
Starting Method |
Electric Starter |
|
Rated Power KW/(r/min) |
5.7/3000 |
6.3/3600 |
|
Fuel |
0# Diesel (summer)/-10# Diesel (winter) |
|
Lubrication Oil |
SAE10W30 (above CC grade) |
|
Fuel tank capacity (L) |
16 |
|
Running time for continuously |
10 |
|
Dimensions (L× W× H) (mm) |
990× 570× 770 |
|
Net weight (kg) |
191 |
|
Starting Method |
Electric start |
|
Noise Level dB(A) / 7M |
61 |
| Prod Model: |
SF5GF-LDEW Power: 5kw |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
