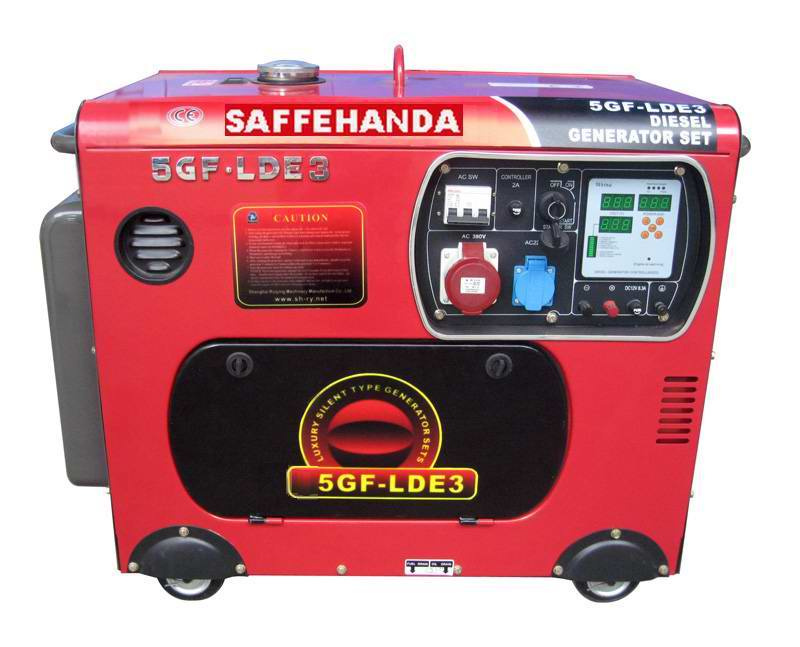

Function of SAFFEHANDA series Low-noise diesel generator set is following:
New type voltage the AVR could ensure the voltage output balanced, simultaneity it has the protect function when the machine is overstep the burthen.
Low Oil Pressure Alarm System could automatic stop the generator.
Electric starting type (E) ensure the machine could quickly starting.
The equipments is couldn't lack in the meet an emergency and constant electrical source, and very broad used in minefactory, coperation, working at field, building; Suply to the vessel and naval vessels; Farming and fishing, forestand garden, gardening, hotel, commerce, working site, the home and so on.
|
Rated Frequency(Hz) |
50Hz |
60Hz |
|
Rated Output Power(kVA) |
5.0 |
5.5 |
|
Max Output Power(kVA) |
5.5 |
6.0 |
|
AC Rated Voltage (V) |
230/400 |
240/416 |
|
AC Rated Current (A) |
9 |
10 |
|
Rated Speed(rpm) |
3000 |
3600 |
|
Phase |
Tri-phase |
|
Power Factor (cosφ ) |
1.0 |
|
Insulation Class |
B |
|
Electrode Number |
2 |
|
Excitation Type |
Self-exciting and steady output voltage(with AVR) |
|
Panel Type |
Intellingent control panel |
|
Output Voltage(V) |
230/400 |
|
Output Socket |
One single-phase and one Tri-phase |
|
Output connecting pole |
0 |
|
DC 12V output |
DC connecting pole |
|
Dimensions: L× W× H (mm) |
930× 550× 720 |
|
Packing Size: L× W× H(mm) |
990× 570× 770 |
|
Net Weight(Kg) |
175 |
|
Gross Weight(Kg) |
183 |
|
Noise Level-7m(dba) |
72-78 |
|
Structure Type |
Silent type |
|
Engine Model |
SF186FAE |
|
Engine Type |
Single cylinder, Vertical, four stroke, direct injection |
|
Cylinder-Bore× Stroke(mm) |
1-86× 72 |
|
Displacement(ml) |
418 |
|
Rated Horsepower |
10.9/3000 |
11.9/3600 |
|
Compression Ratio |
19: 1 |
|
Rated speed r/min |
3000 |
3600 |
|
Ignition System |
Blast |
|
Cooling |
Air-cooled |
|
Lubricating System |
Splash by hammer-blow |
|
Starting System |
Electric Startup |
|
Fuel |
0# Diesel (summer)/-10# Diesel (winter)-
35#(Jack frost)
frost |
|
Lube |
SAE10W30 (Up CD level) |
|
Capacity of Cooling water(L) |
without |
|
Capacity of Lube(L) |
1.65 |
|
Startup Motor(V-KW) |
12V 0.8KW |
|
DC Generator(V-A) |
12V 8.3A |
|
DC Battery(V-Ah) |
12V 20-36AH |
|
Consumption of Fuel(g/KW. h) |
275.1 |
281.5 |
|
Capacity of lube(L) |
16 |
|
Continue working time(h) |
9.5 |
|
Alarm System For Low Oil Pressure |
With |
|
FCL In 20” Container(sets) |
61 |
