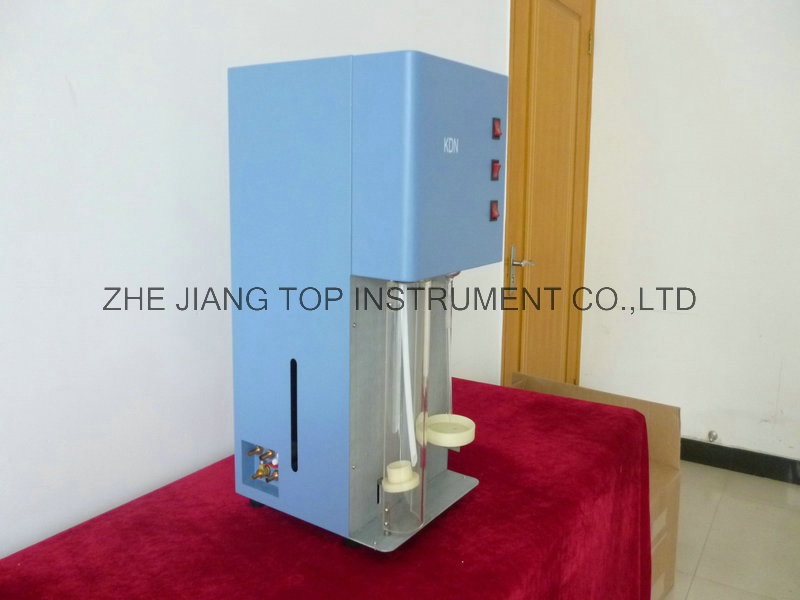

Semi-Automatic Kjeldahl Distillation System (KDN)

Semi-Automatic Kjeldahl Distillation System (KDN)
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: T/T,Western Union

Name:  Automatic kjeldahl nitrogen analyzer
Model:  KDN-04C/KDN-04D/KDN-08C/KDN-08D/KDN-12C/KDN-20C
Note:    KDN Series Automatic kjeldahl nitrogen analyzer, digestive furnace is not included in standard configuration

Characteristics:
1. Adopt microcomputer controlling process
2. Automatically control distills, add water, control water level and cut off water supply
3. Various security protections: digestive system security device, steam generator water shortage alarm, water level detection fault alarm
4. Instrument shell adopts specially made plastic spray steel; working area adopts ABS anticorrosive board. Avoid chemical reagent corrosion and mechanical surface damage, acid proof and alkali proof.
5. Once detected fault, controlling system will power off automatically
6. Adopt tap water source, wide adaptability, and requirement for test is low

Technical parameters:
Measuring varieties: grain, feed, food, dairy products, drink, soil, medicine, precipitate, chemicals and so on
Working mode: semi-automatic
Water-in mode: tap water and distilled water
Sample quantity: Solid: 0.20g-2.00g,
                                Semisolid: 2.00g-5.00g
                                Liquid: 10.00ml-25.00ml

Measuring range: 0.1mgN-200mgN (mg nitrogen)
Recovery rate: ≥99% (relative error, including digestive process)
Distillation speed: 5-15 min/sample (according to sample amount)
Cooling water consumption: 3L/min
Repetition rate: relative standard deviation <±1%
Power: AV 220V/50Hz, 1000W
Water supply: water pressure >1.5MPa

  Water temperature<20°C
Shape size: 380*320*670mm
Weight: 20Kg






Model


KDN-04C


KDN-04D


KDN-08C


KDN-08D


KDN-12C


KDN-20C


function

difference


Tap water

 source; with 4 holes digital digest furnace


Tap water source; with 4 holes digital graphite digest furnace


Tap water source;

with 8 holes digital digest furnace


Tap water source;

with 8 holes digital graphite digest furnace


Tap water source;

with 12 holes digital digest furnace


Tap water source; with 20 holes digital digest furnace

Prod Model: KDN
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Zhejiang Top Instrument Co., Ltd is located in Hangzhou and covers an area of 15000 square meters. As an integrated high-tech enterprise, it is specialized in the R&D, production and sales of instruments on soil testing, meteorological analysis, seed testing, plants physiological detection, environmental monitoring, grain and oil testing. TOP takes the lead in getting the ISO9001 quality system certification and owns CE certification on the vast majority of products. Over the years, TOP has developed hundreds of agricultural instruments and the products have a good market in southeast Asia, Africa, Europe, etc. Meanwhile, as a bright agricultural instruments agency and developer in China, TOP also massively deputize and sell overseas advanced instruments.

Under the leading of general manager Yuyang Chen, TOP has formed its own unique enterprise culture, management concept and a strong R&D team, which has laid a talent reserve base for the future development. With many years' accumulation, the company has massive completely independent intellectual property rights of product and technology.

To meet the development requirements of domestic and foreign trade business, the company is insisting on the principle of "Respecting contract, keeping promise". TOP is pursuing the aim of "Quality first reputation top, sincere cooperation and excellent service" to create the first class enterprise. And They will centralize enterprise superiority by more advanced products, good quality, cheaper price and more comprehensive service to win your long-time favors! Welcome domestic and foreign visitors to come to TOP!
