1) Material for Hollow conductors
Our hollow conductors are made from high-conductivity, oxygen-free copper C10100, C10200, SF-35, TU1, TU2, which is a high purity copper with an electrical conductivity of at least 100% IACS. If higher softening temperatures or creep strengths are required, we recommend the use of silver bearing copper grades CuAg 0.03% or CuAg 0.1%, which are based on which standard you want.
These copper grades offer high electrical and thermal conductivity and their freedom from oxygen ensures excellent brazeability and weldability, making them superior to oxygen-bearing copper grades
Copper hollow conductors are most commonly used in electric motors and generators in the power generation industry.
2) Applications for Hollow conductors
a) Magnets windings
b) Microwave Oven
c) Hyperfrequency wave
d) Electric motors and generators
e) Induction furnaces
f) MRI medical applications

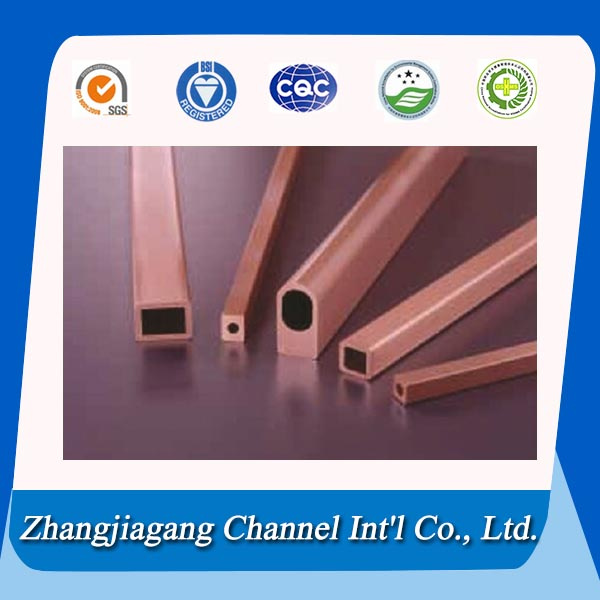

3) Dimensions and shapes
a) Rectangular with round hole
b) Square with square hole
c) Rectangular with uniform wall thickness
d) rectangular with oval hole
e) square with round hole
f) rectangular with non unfirmorm wall thickness
g) stator tubes
h) roudness tube
Dimensions and shapes
Rectangular with round hole | Square with square hole | Rectangular with uniform wall thickness |
Rectangular with oval hole | Square with round hole | Rectangular with non uniform wall thickness |
Stator tubes |
|
|
4) Materil Spec
Alloy: TU1, TU2, ASTM C10100, C10200, Cu-OFE C103, Cu-OF C110, OF-Cu
Chemical Compositon: CU >99.95% O Max 10PPM
Electrical conductivity Min 100% IACS
5) Delivery Forms
a) streight length <21meter
b) loose coil, bulk coil
c) Pancake coil or LWC coil
d) Spools or LWC coil
6) Packaging:
wooden boxes, bundles, coils, spools reels
