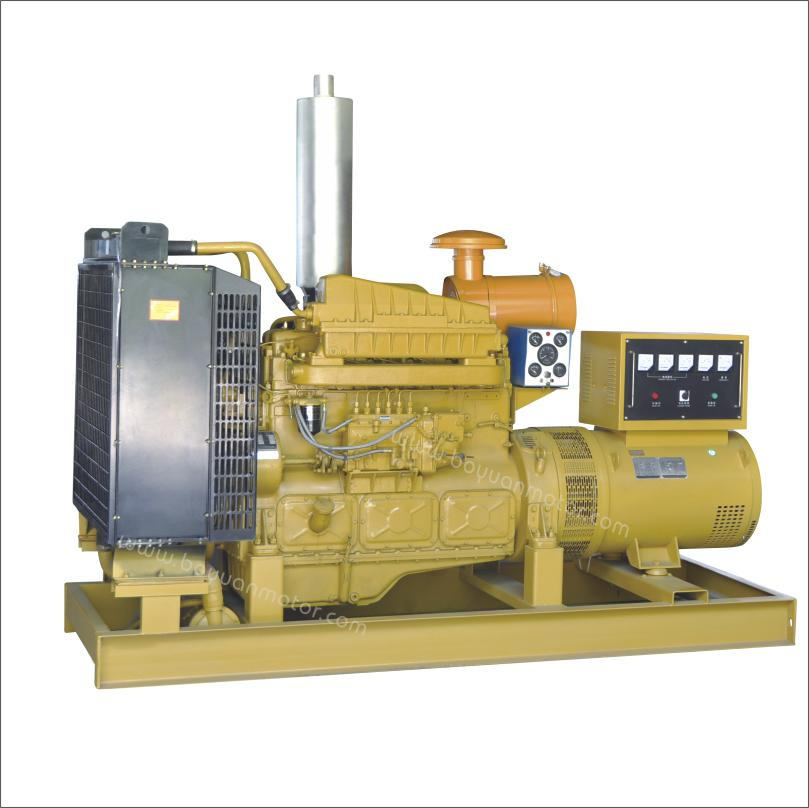

Shangchai series diesel generators: 60kVA-625kVA
The BY Power design diesel generating sets, power range is from 8kw to 1200kw(10kVA to 1500kVA)Covering Cummins, Deutz, (Lovol), Ricardo, Doosan, and Chinese high quality brand(Yuchai, Weichai, Shangchai, Nantong and etc), For more detail information, please contact us!
Specifications of Shangchai engine:
Shangchai series diesel generator adopts the famous China-made engine Shangchai diesel engine and the world famous generator stamford. It has the advantage of low oil consumption, high reliability, high performance, low price etc has win a good reputation in the China market and overseas and price is more competitive and attracting!
Alternator Feature
Stamford(Leroy somer or Mindu made copy Stamford as option), single bearing, brushless, self-excited, self regulated, screen protected, drip proof enclosure, IP22 or IP23 temperature rise class H, AND insulatinon class H, line to line voltage wave from distorion is <3%
Control system:
1 a) Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
B) Operation display:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible and visual alarm lamps and buzzers
Radiator
Set mounted tropical radiator core design suitable for 50c max T air inlet with engine driven cooling fan and fan guard
Base frame and fuel tank
Set is mounted on heavy duty steel base frame with anti-vibration oil proof rubber mounts between generator & base, Base fram incorporates a dailly fuel tank complete with dial type contents gauge, filter cap & drain plug.
Rigorous testing
Must be done before delivery, including 50%
Load, 75%load, 100%load, 110%. And all protection function(over speed stop, high water
Temperature, low oil pressure, battery Charging fail, emergency stop)
Warranty
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
Technology data
| Type | Rated Power (KVA/KW) | Engine type | Rated Power(kw) | Cylinder No. | Bore(mm)X Stroke(mm) | Displacement(L) | Lubricating Capacity
(L) | Fuel consumption ( g/kw. h ) |
| standby | prime |
| GF50 | 62.5/50 | 4135D-1 | 58.5 | 64.7 | 4 | 135 | 140 | 8.6 | 25.5 | 232.5 |
| GF75 | 93.75/75 | 4135AD | 73.6 | 80.9 | 4 | 135 | 150 | 8.6 | 25.5 | 232.5 |
| GF75 | 93.75/75 | 4135AZD-1 | 90 | 99 | 4 | 135 | 150 | 8.6 | 25.5 | 225 |
| GF75 | 93.75/75 | 6135D-3 | 88.3 | 97.1 | 6 | 135 | 140 | 12.88 | 28.7 | 229.8 |
| GF100 | 125/100 | 6135AD | 110.3 | 121.4 | 6 | 135 | 150 | 12.88 | 28.7 | 229.8 |
| GF100 | 125/100 | 6135AZD | 108 | 118 | 4 | 135 | 150 | 8.6 | 25.5 | 225 |
| GF120 | 150/120 | 6135JZD | 139.7 | 154 | 6 | 135 | 140 | 12.88 | 28.7 | 225.7 |
| GF150 | 187.5/150 | 6135AZD-1 | 154.5 | 170.5 | 6 | 121 | 150 | 12.88 | 28.7 | 225.7 |
| GF200 | 250/200 | G128ZLD | 187 | 206 | 6 | 135 | 150 | 12.88 | 27 | 225 |
| GF200 | 250/200 | G128ZLD2 | 206 | 227 | 6 | 135 | 150 | 12.88 | 27 | 225 |
| GF200 | 250/200 | 12V135AD | 220.7 | 242.7 | 12 | 121 | 150 | 25.8 | 57.4 | 229.8 |
| GF250 | 312.5/250 | G128ZLD1 | 236 | 260 | 6 | 135 | 150 | 12.88 | 27 | 225 |
| GF250 | 312.5/250 | 12V135JZD | 280 | 308 | 12 | 135 | 150 | 25.8 | 57.4 | 232.5 |
| GF300 | 375/300 | 12V135AZD | 300 | 330 | 12 | 135 | 150 | 25.8 | 57.4 | 229.8 |
| GF300 | 375/300 | G128ZLD11 | 280 | 308 | 6 | 135 | 150 | 12.88 | 27 | 215 |
| GF350 | 437.5/350 | 12V135AZLD | 338 | 372 | 12 | 135 | 150 | 25.8 | 57.4 | 232.6 |
| GF400 | 500/400 | 12V135BZLD | 400 | 440 | 12 | 135 | 155 | 26.6 | 57.4 | 232.6 |
| GF450 | 563/450 | 12V135BZLD2 | 450 | 505 | 12 | 135 | 155 | 26.6 | 57.4 | 232.6 |
| GF500 | 625/500 | 12V135BZLD1 | 505 | 555 | 12 | 135 | 155 | 26.6 | 57.4 | 232.6 |
Fuan BoYuan Power Machinery Co., Ltd ( abbreviation: BY Power), Located in Fu'an City, Fujian Province, which is famous manufacturing industrial zone in Southeast China.
BY Power is specialized in manufacturing Diesel Generating Set, brushless alternator, AC synchronous alternator, and supplying various power products, like engine parts, controllers, ATS etc.
BY Power manufactures OEM generator powered by Cummins, Deutz, Volvo, MTU, Doosan engines and Stamford, Leroy Somer, Mecc Alte alternators. BY Power Generator set ranges from 7KW to 1200KW, 50Hz or 60Hz frequency, with open type, silent type, trailer type and containerized type, etc. All products are manufactured in accordance with the ISO9001 production standard to assure them of best quality produced and accepted for export to the international market. The products are mainly exported to Middle East, Africa & Southeast Asia countries and regions.
All staffs of produce and inspection team works for the industry more than 10years. They are professional and passionate for their job.
As a brand new profession manufacturer, our advantage is professional work team, strict inspection controll system and good service.
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers' request
3. Polyester varnish for appearance protecting for shining and raining
4. Two hours testing before out factory
Warranty policy
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
