We are manufacturer of SKF bearing windmill generator 5kw

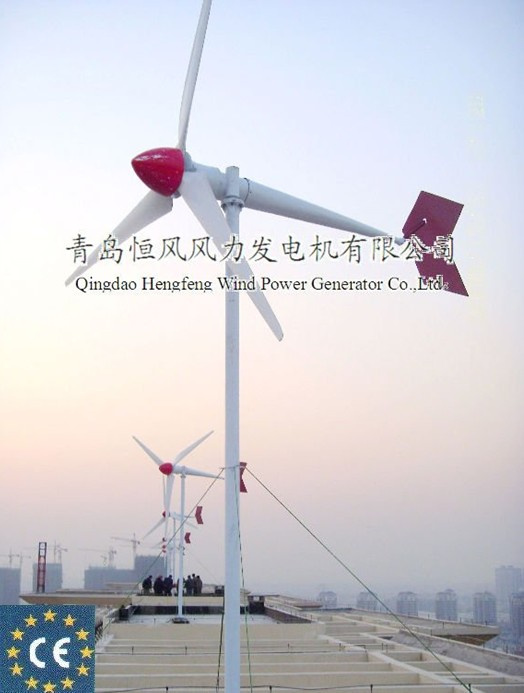

Wind Turbine Main technical data as follows:
1. Machine Type: Horizontal-axis wind turbine
2. Blade form: Propeller
3. Blade number: 3 PCS
4. Balde material: Glass fibre reinforced plastic
5. Type of generator: Permanent-magnet 3 phase AC
6. Type of tower: Guy wire or free standing
Pure sine wave Inverter:
1. Pure sine wave output can drive any household appliances.
2. Use integrated circuit, less wire connection.
3. Adopting micro-processor technology, improving system integration.
4. Excellent protection includes over voltage shutdown, under voltage shutdown, over load protection, short circuit protection, over thermal protection, etc.
5. Be able to work in wind power or wind&solar hybrid system
6. With high efficiency transformer instead of high frequency e-circuit design
7. Automatic regulate voltage,
8. LCD display operation status,
9. High running stability and reliability
Power: 5KW
Blade diameter (m): 6.0
Rated Rotated speed (r/min): 200
Rated speed (m/s): 10
Rated power: 5KW
Max power: 7KW
Output voltage (v): 220
Start up wind speed (m/s): 3
Work speed (m/s): 3-30
Security wind speed(m/s): 50
High of tower (m): 9
Top quality except tower: 285kg
Tower Steel tube model (mm): 133
Speed regulation: Leaning tail + electric brake
Capacity and quantity of battery: 12V200AH 18 PCS
Can supply power for: Air conditioners, Refrigerators, Water pumps, Cookers, Color TV sets, Washing machines, Lighting, Electric fans, and Charge.
Qingdao Hengfeng Wind Power Generator Co., Ltd is one of the leading wind turbine manufacturer in China. Company start at 2004, Workshop covers more than 5000 square meters. It is about 1 hour by car to Qingdao Airport. And 30 minutes to Qingdao port. The traffic is very convenient.
Our company mainly produces 150 watts to 100 kilowatts of small and medium horizontal axis, vertical axis wind turbines, wind and solar power supply system, widely used in off-grid and on-grid power generation system. Produced in strict accordance with the ISO9001 international standard production system management, we have standard production line and automated packaging line, strict product testing system, advanced test equipment, to ensure provide customers the highest quality products and services; All products have achieved CE certification. Hengfeng has unrivalled experience and has built up a global reputation for their robust and reliable performance.
Our products has been export to more than 60 countries, for example, Europe, Middle East, Southeast Asia, Australia etc; Widely applied for island, military, maritime monitor, home use, commercial business and remote area etc, we have integrated design, production, sale and after-sale service. If you are thinking about reducing your domestic energy bills or providing a multi-site energy solution for your business, HENGFENG can help achieve your renewable energy aspirations. We make sure that your wind turbine choice will work productively for you and deliver all-round environmental benefits.
