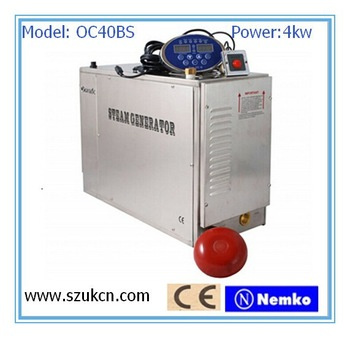

Oceanic steam generator is a reliable and innovative product which has been tested strictly by Nemko Company in UK. Comparing with other steam generator, we have many creative design to meet customer's demands.
sauna steam electricity generator with universal remote control for steam room made in china
Models:
| Model |
Power(KW) |
Voltage(V) |
Phase(N~) |
Current(A) |
Dimensions(mm) (L×W×H) |
OC-30BST |
3.0 |
230/400 |
1/3 |
13/4.3 |
530 ×180×330 |
OC-40BST |
4.0 |
230/400 |
1/3 |
17/5.8 |
530 ×180×330 |
OC-45BST |
4.5 |
230/400 |
1/3 |
19.5/6.5 |
530 ×180×330 |
OC-60BST |
6.0 |
230/400 |
1/3 |
26.4/8.7 |
530 ×180×330 |
OC-80BST |
8.0 |
230/400 |
1/3 |
34.8/13 |
530 ×210×370 |
OC-90BST |
9.0 |
230/400 |
1/3 |
39/13 |
530 ×210×370 |
OC-105BST |
10.5 |
230/400 |
1/3 |
45.6/15 |
530×210×370 |
OC-120BST |
12.0 |
230/400 |
1/3 |
52.0/17 |
530 ×210×370 |
OC-135BST |
13.5 |
230/400 |
1/3 |
56.0/19.5 |
530 ×230×460 |
OC-150BST |
15.0 |
230/400 |
1/3 |
65/21.7 |
530 ×230×460 |
OC-180BST |
18.0 |
230/400 |
1/3 |
78.0/26.1 |
530 ×230×460 |
Brief introduction:
1. with 6kw, 230/400v
2. with large display screen of the controller to show time and temperature
3. with boil dry protection and pressure relief valve
4. with bright red high visibility steam inlet nozzle
5. Auto water supplementary and drain-down system
6. Stainless steel shell
Main features:
1. Automatic Descaling Program help the user to de-scale the scale on heat element and boiler, to reduce the water quality's damage to heat element and let the maintenance to be so easy.
2. Sequential heating to save energy and prolong the working life of the elements
3. Linking function make many steam generators under one OC-A control panel's control to suit for any size and material steam room
4. Diagnostics-8 LEDs on the control panel show 12 different working stages for easily maintenance
5. Steam on demand function will allow customers to press the steam on demand button located inside the steam room after which the generator will operate for 30 minutes then stop until activated again
Specifications:
| Model | Power(kw) | Voltage(v) | Phase(N~) | Current(A) | Recommended steam room(m3) |
| OC-30BS | 3 | 230/400 | 1 | 13 | 2.5-5 |
| OC-40BS | 4 | 230/400 | 1 | 17 | 2.5-5 |
| OC-45BS | 4.5 | 230/400 | 1/3 | 19.5/6.5 | 2.5-5 |
| OC-60BS | 6 | 230/400 | 1/3 | 26/8.7 | 6-7 |
| OC-80BS | 8 | 230/400 | 1/3 | 34.8/11 | 8-10 |
| OC-90BS | 9 | 230/400 | 1/3 | 39/13 | 10-12 |
| OC-105BS | 10.5 | 230/400 | 1/3 | 45.6/15 | 12-15 |
| OC-120BS | 12 | 230/400 | 1/3 | 52/17 | 14-17 |
| OC-135BS | 13.5 | 400 | 1/3 | 58/19 | 15-18 |
| OC-150BS | 15 | 400 | 1/3 | 65.2/22 | 17-20 |
| OC-180BS | 18 | 400 | 1/3 | 78/26 | 19-24 |
According to the volume of your steamroom, the choice of steam generator is different.
We have 3kw 4kw 4.5kw 6kw 8kw 9kw10.5kw 12kw 13.5kw 15kw 18kw for your choice.
Our Oceanic steam generators will bring you a new exprience for shower !
Our services:
Every Oceanic sauna heater is subjected to 5 strictly controlled tests:
1.48 hour continual test for circuit board
2. Controller is tested for all functions
3. High voltage test
4. Earthing resistance test
5. Operational test of every sauna heater before packing
Complete with installation instructions, 24 months guarantee for all parts (excluding elements).
Company information:
Ukcn Leisure Equipment (Shenzhen) Limited has 8 years experience in the line of sauna and steam products manufacturing and marketing in many markets. All of our electrical products are reliable and innovative product which has tested by NEMKO in the UK. Our products are popular in many countries, and we have sole agents in more than 6 countries including UK, France, Spain, Singapore and so on. We also OEM for "Aqua", German"Fintec" and some other famous brand.
Our factory locates in Shenzhen of China, very near Hongkong, welcome to visit us!
Ukcn Leisure Equipment (Shenzhen) Limited has 8 years experience in the line of sauna and steam products manufacturing and marketing in many markets. All of our electrical products are reliable and innovative product which has tested by NEMKO in the UK. Our products are popular in many countries, and we have sole agents in more than 6 countries including UK, France, Spain, Singapore and so on. We also OEM for "Aqua", German"Fintec" and some other famous brand.
Our factory locates in Shenzhen of China, very near Hongkong, welcome to visit us!
