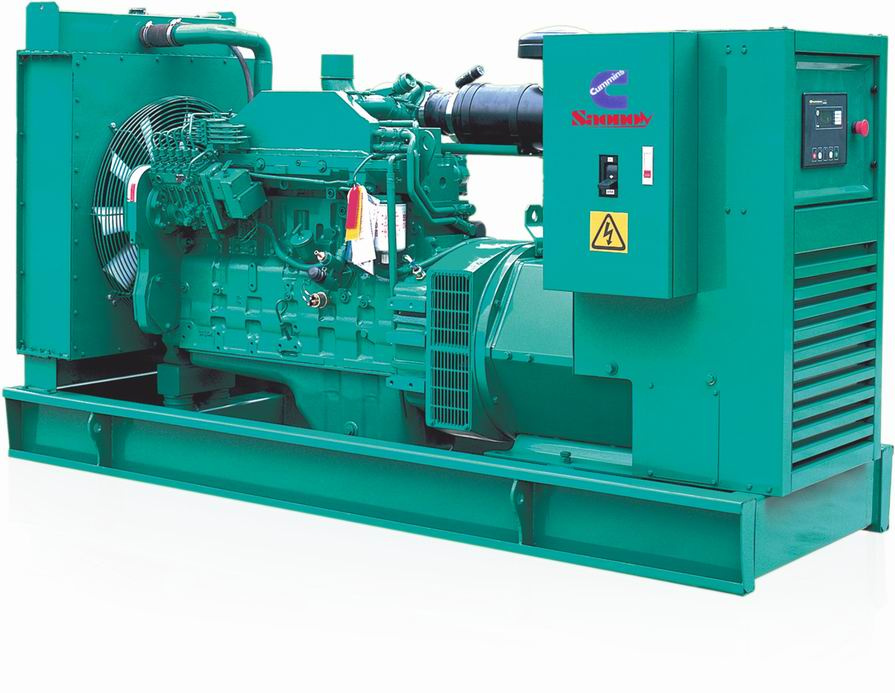

Brand New SAONON Cummins Generator Set:
Power: 5 - 4500 kVA
Frequency: 50/60 Hz
Volt: 110V - 3600V
Super Silent 65d(BA) @ 7 meter.
Engine: Cummins (Imported or made in China)
Alternator: Stamford & LEROY SOMER & MARATHON
Control: DeepSea 702K
| GENSET MODEL | STANDBY POWER (KVA) | PRIME POWER (KVA) | ENGINE MODEL | RATDD FREQUENCY HZ | CYLINDERS | DISPLACEMENT ( L) | FUEL CONSUMPTION ( L/H ) | OIL CAPACITY ( L ) | COOLANT CAPACITY ( L) | | WEIGHT ( KG ) |
|
| L | W | H |
| SC25 | 25 | 22.5 | 4B3.9-G2 | 50 | 4L | 3.9 | 4.3 | 11 | 17 | 1470 | 650 | 1146 | 650 |
| SC30 | 30 | 27.5 | 4B3.9-G2 | 50 | 4L | 3.9 | 5.2 | 11 | 17 | 1577 | 650 | 1146 | 670 |
| SC40 | 40 | 37.5 | 4BT3.9-G2 | 50 | 4L | 3.9 | 7 | 11 | 17 | 1685 | 650 | 1146 | 700 |
| SC45 | 45 | 40 | 4BT3.9-G2 | 50 | 4L | 3.9 | 8 | 11 | 18 | 1685 | 650 | 1146 | 710 |
| SC55 | 55 | 50 | 4BTA3.9-G2 | 50 | 4L | 3.9 | 10 | 11 | 18 | 1800 | 670 | 1190 | 830 |
| SC62 | 62 | 56 | 4BTA3.9-G2 | 50 | 4L | 3.9 | 12 | 11 | 18 | 1900 | 670 | 1190 | 850 |
| SC70 | 70 | 63 | 4BTA3.9-G2 | 50 | 4L | 3.9 | 14 | 11 | 18 | 2000 | 670 | 1190 | 870 |
| SC80 | 80 | 72 | 6BT5.9-G2 | 50 | 6L | 5.9 | 16 | 16 | 29 | 2100 | 790 | 1278 | 1000 |
| SC90 | 90 | 85 | 6BT5.9-G2 | 50 | 6L | 5.9 | 19 | 16 | 29 | 2200 | 790 | 1278 | 1063 |
| SC110 | 110 | 100 | 6BT5.9-G2 | 50 | 6L | 5.9 | 21 | 16 | 29 | 2200 | 790 | 1323 | 1098 |
| SC125 | 125 | 114 | 6BTA5.9-G2 | 50 | 6L | 5.9 | 31 | 16 | 29 | 2200 | 790 | 1323 | 1105 |
| SC150 | 150 | 135 | 6BTAA5.9-G2 | 50 | 6L | 5.9 | 33 | 16 | 30 | 2400 | 840 | 1323 | 1150 |
| SC175 | 175 | 160 | 6CTA8.3-G2 | 50 | 6L | 8.3 | 34 | 24 | 35 | 2480 | 860 | 1433 | 1450 |
| SC200 | 200 | 180 | 6CTA8.3-G2 | 50 | 6L | 8.3 | 38 | 24 | 39 | 2480 | 860 | 1433 | 1650 |
| SC220 | 220 | 200 | 6CTAA8.3-G2 | 50 | 6L | 8.3 | 43 | 24 | 47 | 2700 | 950 | 1460 | 1650 |
| SC250 | 250 | 225 | 6LTAA8.9-G2 | 50 | 6L | 8.9 | 47 | 24 | 47 | 2660 | 960 | 1454 | 1800 |
| SC275 | 275 | 250 | 6LTAA8.9-G2 | 50 | 6L | 8.9 | 55 | 37 | 62 | 2660 | 960 | 1454 | 1800 |
| SC300 | 300 | 270 | MTA11-G2A | 50 | 6L | 11 | 60 | 39 | 62 | 2950 | 1000 | 1571 | 2800 |
| SC325 | 325 | 300 | MTAA11-G3 | 50 | 6L | 11 | 65 | 39 | 62 | 3100 | 1378 | 1644 | 2820 |
| SC350 | 350 | 320 | MTAA11-G3 | 50 | 6L | 11 | 69 | 39 | 65 | 3100 | 1378 | 1644 | 2846 |
| SC375 | 375 | 330 | QSM11-G2 | 50 | 6L | 11 | 70 | 38 | 62 | 3100 | 1378 | 1644 | 2846 |
| SC388 | 388 | 350 | NTA855-G2A | 50 | 6L | 14 | 73 | 39 | 65 | 3110 | 1000 | 1746 | 2880 |
| SC400 | 400 | 363 | NTA855-G4 | 50 | 6L | 14 | 75 | 37 | 65 | 3110 | 1000 | 1746 | 2946 |
| SC450 | 450 | 400 | NTAA855-G7A | 50 | 6L | 14 | 89 | 37 | 65 | 3310 | 1378 | 1720 | 3100 |
| SC500 | 500 | 450 | KTA19-G3 | 50 | 6L | 18.9 | 93 | 91 | 99 | 3615 | 1290 | 1912 | 3911 |
| SC550 | 550 | 500 | QSX15-G8 | 50 | 6L | 15 | 103 | 91 | 99 | 3600 | 1300 | 1893 | 3911 |
| SC575 | 575 | 520 | KTA19-G4 | 50 | 6L | 18.9 | 107 | 50 | 99 | 3615 | 1290 | 1912 | 4083 |
| SC625 | 625 | 575 | KTAA19-G5 | 50 | 6L | 18.9 | 113 | 50 | 99 | 3860 | 1525 | 2059 | 4300 |
| SC660 | 660 | 600 | KTAA19-G6A | 50 | 6L | 18.9 | 119 | 50 | 195 | 3860 | 1525 | 2059 | 4449 |
| SC688 | 688 | 625 | KTAA19-G6A | 50 | 6L | 18.9 | 130 | 30 | 195 | 3860 | 1525 | 2059 | 4300 |
| SC706 | 706 | 640 | VTA28-G5 | 50 | 12V | 28 | 140 | 83 | 265 | 3860 | 1590 | 1906 | 4449 |
| SC825 | 825 | 750 | VTA28-G6 | 50 | 12V | 28 | 150 | 83 | 265 | 4400 | 1627 | 2444 | 7155 |
| SC860 | 860 | 780 | KTA38-G2 | 50 | 12V | 37.8 | 167 | 83 | 265 | 4387 | 1808 | 2384 | 7794 |
| SC900 | 900 | 815 | QSK23-G3 | 50 | 12V | 23 | 161 | 102 | 112 | 4169 | 1501 | 1981 | 6850 |
| SC1000 | 1000 | 910 | KTA38-G2A | 50 | 12V | 37.8 | 178 | 135 | 303 | 4387 | 1808 | 2384 | 7842 |
| SC1050 | 1050 | 950 | QST30-G3 | 50 | 12V | 30 | 192 | 135 | 306 | 4400 | 1900 | 2444 | 8000 |
| SC1100 | 1100 | 1000 | QST30-G4 | 50 | 12V | 30 | 204 | 135 | 309 | 4550 | 1900 | 2444 | 8017 |
| SC1125 | 1125 | 1025 | KTA38-G5 | 50 | 12V | 37.8 | 185 | 135 | 309 | 4550 | 1900 | 2444 | 8600 |
| SC1250 | 1250 | 1125 | KTA38-G9 | 50 | 12V | 37.8 | 214 | 135 | 312 | 4550 | 1900 | 2444 | 8900 |
| SC1375 | 1375 | 1250 | KTAA38-G9A | 50 | 12V | 37.8 | 259 | 135 | 322 | 4755 | 2070 | 2444 | 9000 |
| SC1400 | 1400 | 1275 | KTA50-G3 | 50 | 16V | 50.3 | 261 | 177 | 349 | 5319 | 1920 | 2520 | 9971 |
| SC1675 | 1675 | 1500 | KTA50-G8 | 50 | 16V | 50.3 | 299 | 204 | 349 | 5319 | 2280 | 2542 | 10582 |
| SC2063 | 2063 | 1875 | QSK60G3 | 50 | 16V | 60.2 | 320 | 280 | 378.5 | 6175 | 2286 | 2537 | 14649 |
| SC2250 | 2250 | 2000 | QSK60G4 | 50 | 16V | 60.2 | 340 | 280 | 378.5 | 6175 | 2286 | 2537 | 14863 |
| SC2500 | 2500 | 2250 | QSK60G8 | 50 | 16V | 60.2 | 360 | 280 | 378.5 | 6175 | 2286 | 2537 | 15200 |
| SC30-6 | 30 | 27.5 | 4B3.9-G2 | 60 | 4L | 3.9 | 6 | 11 | 17 | 1470 | 650 | 1146 | 650 |
| SC36-6 | 36 | 32.5 | 4B3.9-G2 | 60 | 4L | 3.9 | 6.5 | 11 | 17 | 1577 | 650 | 1146 | 670 |
| SC50-6 | 50 | 45 | 4BT3.9-G2 | 60 | 4L | 3.9 | 7 | 11 | 17 | 1685 | 650 | 1146 | 700 |
| SC62-6 | 62 | 55 | 4BTA3.9-G2 | 60 | 4L | 3.9 | 13 | 11 | 18 | 1800 | 670 | 1190 | 830 |
| SC70-6 | 70 | 62.5 | 4BTA3.9-G2 | 60 | 4L | 3.9 | 14 | 11 | 18 | 1900 | 670 | 1190 | 850 |
| SC80-6 | 80 | 72.5 | 6BT5.9-G2 | 60 | 6L | 5.9 | 16 | 16 | 29 | 2100 | 790 | 1278 | 1000 |
| SC90-6 | 90 | 80 | 6BT5.9-G3 | 60 | 6L | 5.9 | 19 | 16 | 30 | 2200 | 790 | 1278 | 1063 |
| SC100-6 | 100 | 90 | 6BT5.9-G2 | 60 | 6L | 5.9 | 20 | 16 | 29 | 2200 | 790 | 1323 | 1098 |
| SC125-6 | 125 | 113 | 6BT5.9-G2 | 60 | 6L | 5.9 | 25 | 16 | 29 | 2200 | 790 | 1323 | 1105 |
| SC150-6 | 150 | 135 | 6BTA5.9-G2 | 60 | 6L | 5.9 | 33.7 | 16 | 29 | 2400 | 840 | 1323 | 1150 |
| SC165-6 | 165 | 150 | 6BTAA5.9-G2 | 60 | 6L | 5.9 | 34 | 16 | 30 | 2480 | 860 | 1433 | 1450 |
| SC200-6 | 200 | 180 | 6CTA8.3-G2 | 60 | 6L | 8.3 | 41 | 24 | 35 | 2480 | 860 | 1433 | 1650 |
| SC220-6 | 220 | 200 | 6CTA8.3-G2 | 60 | 6L | 8.3 | 45 | 24 | 39 | 2700 | 950 | 1460 | 1650 |
| SC250-6 | 250 | 225 | 6CTAA8.3-G2 | 60 | 6L | 8.3 | 50 | 24 | 47 | 2660 | 960 | 1454 | 1800 |
| SC275-6 | 275 | 250 | 6LTAA8.9-G2 | 60 | 6L | 8.9 | 58 | 24 | 47 | 2660 | 960 | 1454 | 1800 |
| SC300-6 | 300 | 275 | MTA11-G2A | 60 | 6L | 11 | 60 | 37 | 62 | 2950 | 1000 | 1571 | 2800 |
| SC350-6 | 350 | 320 | MTAA11-G3 | 60 | 6L | 11 | 72 | 39 | 62 | 2950 | 1000 | 1571 | 2800 |
| SC400-6 | 400 | 350 | NTA855-G2 | 60 | 6L | 14 | 80 | 39 | 65 | 3110 | 1000 | 1746 | 2880 |
| SC440-6 | 440 | 352 | NTA855-G4 | 60 | 6L | 14 | 90 | 37 | 65 | 3110 | 1000 | 1746 | 2946 |
| SC500-6 | 500 | 450 | KTA19-G2 | 60 | 6L | 18.9 | 100 | 91 | 65 | 3310 | 1378 | 1720 | 3100 |
| SC575-6 | 575 | 525 | KTA19-G3 | 60 | 6L | 18.9 | 110 | 91 | 99 | 3615 | 1290 | 1912 | 3911 |
| SC625-6 | 625 | 569 | QSX15-G8/G9 | 60 | 6L | 18.9 | 120 | 91 | 99 | 3600 | 1300 | 1893 | 3911 |
| SC650-6 | 650 | 588 | KTA19-G4 | 60 | 6L | 18.9 | 133 | 50 | 99 | 3615 | 1290 | 1912 | 4083 |
| SC688-6 | 688 | 625 | KTAA19-G5 | 60 | 6L | 18.9 | 142 | 50 | 99 | 3860 | 1525 | 2059 | 4300 |
| SC750-6 | 750 | 675 | KTAA19-G6A | 60 | 6L | 18.9 | 135 | 50 | 195 | 3860 | 1525 | 2059 | 4449 |
| SC938-6 | 938 | 853 | VTA28-G6/G7 | 60 | 12V | 28 | 181 | 30 | 195 | 3860 | 1525 | 2059 | 4300 |
| SC1000-6 | 1000 | 900 | KTA38-G2 | 60 | 12V | 37.8 | 204 | 83 | 265 | 3860 | 1590 | 1906 | 4449 |
| SC1031-6 | 1031 | 930 | QSK23-G3 | 60 | 12V | 23 | 210 | 83 | 265 | 4400 | 1627 | 2444 | 7155 |
| SC1050-6 | 1050 | 950 | KTA38-G2A | 60 | 12V | 37.8 | 220 | 83 | 265 | 4387 | 1808 | 2384 | 7794 |
| SC1156-6 | 1156 | 1044 | QST30-G3 | 60 | 12V | 30 | 240 | 102 | 112 | 4169 | 1501 | 1981 | 6850 |
| SC1250-6 | 1250 | 1125 | QST30-G4 | 60 | 12V | 30 | 260 | 135 | 303 | 4387 | 1808 | 2384 | 7842 |
| SC1275-6 | 1275 | 1160 | KAT38-G4/G6 | 60 | 12V | 37.8 | 320 | 177 | 349 | 5319 | 1920 | 2520 | 9971 |
| SC1600-6 | 1600 | 1400 | KTA50-G3 | 60 | 16V | 50.3 | 331 | 177 | 349 | 5319 | 1920 | 2520 | 9971 |
| SC1931-6 | 1931 | 1630 | KTA50-G8/G9 | 60 | 16V | 50.3 | 350 | 280 | 378.5 | 6175 | 2286 | 2537 | 14649 |
| SC2500-6 | 2500 | 2250 | Q60-G3/G6 | 60 | 16V | 60 | 360 | 280 | 378.5 | 6175 | 2286 | 2537 | 14863 |
| SC2813-6 | 2813 | 2530 | Q60-G4/G9 | 60 | 16V | 60 | 379 | 280 | 378.5 | 6175 | 2286 | 2537 | 15200 |
GUANGZHOU PANYU SAONON ELETRIC&MACHINE CO. Ltd. which the sales company of SAONON Group. As the leading manufacturer in the industry of Diesel Generator Set for more than 30 years, SAONON obtain the dealership of CAT, Cummins (Genset Sales & Service), Olympian and Kipor. What's more, SAONON is OEM factory of Stamford and Lovol (Perkins Engine Made in Tianjin, China) and authorized to assemble GEN SET with Cummins engine.
SAONON's product range including:
A: Original GEN SET: Cummins CPG, Dynasty, CAT, Olympian, Kipaor;
B: SAONON GEN SET:
SC SERIES (CUMMINS&STAMFORD/ LEROY SOMER/ MARATHON)
SP SERIES (PERKINS&STAMFORD/ LEROY SOMER/ MARATHON)
SV SERIES (Volvo&STAMFORD/ LEROY SOMER/ MARATHON)
SDZ SERIES (DEUTZ&STAMFORD/ LEROY SOMER/ MARATHON)
SS SERIES (SHANCHAI&STAMFORD/ LEROY SOMER/ MARATHON)
SL SERIES (LOVOL&STAMFORD/ LEROY SOMER/ MARATHON)
P. S.: Other Chinese engine and alternator can also be matched as per your demanding.
C: SOUND PROOF GEN SET & Gas GEN SET & Marine GEN SET;
D: Control System & Spare Part;
Nowadays, face to the limited quota of engine around the worldwide, SAONON have wide resource to provide the best solution for the clients in very short delivery period and cheaper costs. We would like to develop with your esteemed company to marketing SAONON GEN SET. If it's required I provide detailed information for your reference. Looking forward to hearing from you!
