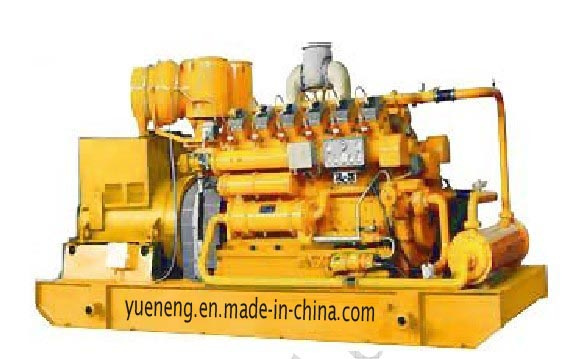

TOP Power PS SANTUM Series Gas Generating Set
Generator Set Specification
Genset Model: TSJ1250G /TSJ500G /TSJ625G /TSJ875G
Manufacture: TOPPower Power System
GasEngineModel: AD12V190ZlT2 /12V190DT2 /12V190ZDT-2 /12V190ZlDT
AlternatorModel: IFC6 Series/TFC454-6TA42
Rated Power: 1000kW/400KW/500KW/750kw
Rated Voltage: (400/230V)
Rated Speed: 1500rpm/1000rpm/1000rpm/1500rpm
Rated Frequency: 50Hz
StartingMethod: 24V DC electric Starting
ControlPanelModel: KTA1000A-1/KTA400A-1
CouplingMethod: Elastic Coupling
VoltageRegulation: Automatic
CoolingMode: Opened
Dimension:
Water tower cooling type 5800*2200*2500mm
Radiator cooling type 7150*2310*2880mm
NetWeight: 16500kg/1180kg/12000kg/11800kg
Voltage
Stabilized Regulation: +2.5%
Instantaneous Regulation: +20%-15%
Recovery time: 2S /0.5% /1.5S /1.5S
Fluctuation: 0.5%
Frequency
Stabilized Regulation: 0-5% adjustable
Instantaneous Regulation: +10%, -12%
Recovery time: <10S /<7S /7S /7s
Fluctuation: 1% /0.5% /0.5% /0.5%
Engine Performance
Rated Power: 1100kW/450KW/552KW/800KW
Number and layout of cylinders: 12, V-type, 60° Included angle
Type: Four stroke, Water cooled, Turbocharged, Air after-cooled, Electronic timing air intake valve for each cylinder
Fuel: Natural gas
IgnitionType: Spark plug ignition
Intake gas pressure required: 10-400kPa
Bore*Stroke: 190× 215mm /190*210mm /190*210 /190*210
Compression ratio: 10: 1 /9: 1 /9: 1 /12: 1
GasConsumption: 0.25 m³ /kWh
Heat consumption: ≤ 9500kJ/kWh/11386kwh/11386kwh/11000kwh
Oil Consumption: ≤ 0.72g/kWh /1.6g/kwh /1.63 /1.63
Lowest speed: 700rpm /700rpm/700rpm/700rpm/700rpm
ExhaustTemp.: ≤ 700º C /650º C /650 /650
NetWeight: 9300kg/5300kg/53000kg/ 5300kg
Heavy overhauling time: 35000 hours/25000/25000/3500
Alternator
Alternator Model: Siemens IFC6 Series
Exciting Model: Brushless
Insulation Class: Class F
Connection: 3-Phase, 4 Wire
Cooling: Air cooled
Structuretype: AVR and reactive droop regulator assembled in alternator for synchronization
Control Panel
Type: Cabinet
Components:
1)Meters showing various parameters of operating status,
2)BBE AHB series multi— Functional air circuit-breakers
3)Woodward 2301A electronic load sharing and speed control
4)Comap IG-CU controller (optional)
Functions:
1)Auto Audio or visual alarm
2)Auto Shut down
3)Manual synchronization
4)Auto synchronization(optional)
| SANTUM Series Gas Generating Set |
| Model | Power (kw/kVA) | Engine Model | Alternator Model | Dimension | Weight |
| Prime | Standby | Open Type | Sound Proof | Open Type | Sound Proof |
| TSJ1250G | 10 TOP Power PS SANTUM Series Gas Generating Set00/1250 | 1100/1375 | AD12V190ZLT2 | IFC6 SERIES | 4733×2040×2778 | | 16500 | |
| TSJ500G | 400/500 | 440/550 | 12V190DT-2 | IFC5 456-6TA42 | 5120×2040×2195 | | 11800 | |
| TSJ625G | 500/625 | 550/688 | 12V190ZDT-2 | IFC6 456-6TA42 | 4733×2040×2778 | | 12000 | |
| TSJ875G | 700/875 | 770/963 | G12V190ZLDT | IFC6 SERIES | 5240×2040×2500 | | 11800 | |
Guangzhou Top power equipment Inc. Was established in 2005, with its headquarters in Guangzhou, China, Our factory is located in Panyu industrial Zone, Guangzhou, which was one of the pioneer of generator sets business in China.
At present, we have a modern factory which covers 18, 000 square meters, and can mass produce various generator sets from 15kw to 1500kw, such as soundproof gensets, trailer mounted gensets, vehicle carried gensets, automatic parallel control panel, auto transfer switch panel(ATS), high voltage gensets, marine gensets with Marine Classification Society Approvals.
We have set up a long-term cooperation relationships with several worldwide famous engine and alternator manufacturers since 2005.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon. For more information, please contact us directly.
