Saipwell Solar System Residential Use(SN-200)

Product Description

Products Features:

1. High Efficiency: Solar controller: Double Close-loop Controller (both voltage & current control). It ensures the solar panel charges the battery farthest. Experiment tells us, under the same environment and same load condition, this Solar Power System can save 15% solar panel.
2. Driver of inverter: Main circuit adopts latest advanced Intelligent Power Module (IPM) IGBT of Japan Mitsubishi & Toshiba and Germany IXYS MOSFET, to provide a stable, accurate output voltage, offer high-quality, high reliability Power for a variety of terminal equipments.
3. Mature protective function: There is a series of protective measures, including over-voltage & under-voltage DC input protection, against inversion of polarity DC input protection, over load & short-circuit AC output protection, overheating protection to assure the system is safe and reliable and excellent in performance.
4. Application: Families, boat, none or short of electricity area, Satellite Ground Stations, weather stations,
Forest fire stations, Border-guard Stations, etc.


Storage and Working environment:


1. Storage

To avoid possible damage, take notice of the following items when restoring.
Placed in the ventilation and away from dust and dirt area;
Environmental temperature:
Inverter & Battery: -10° C ~ 50° C;
Solar panel: -40° C~ 90° C;
Relative humidity less than ninety percent, and without condensation;
Away from erosive gas and liquid;
Long-period of no using, discharge and charge once six month.


2. Working environment

A. Working temperature:
Inverter & Battery: -10° C ~ 50° C;
Solar panel: -40° C~ 90° C;
B. Humidity: 0 ~ 90%;
C. Altitude: ≤ 5000m.

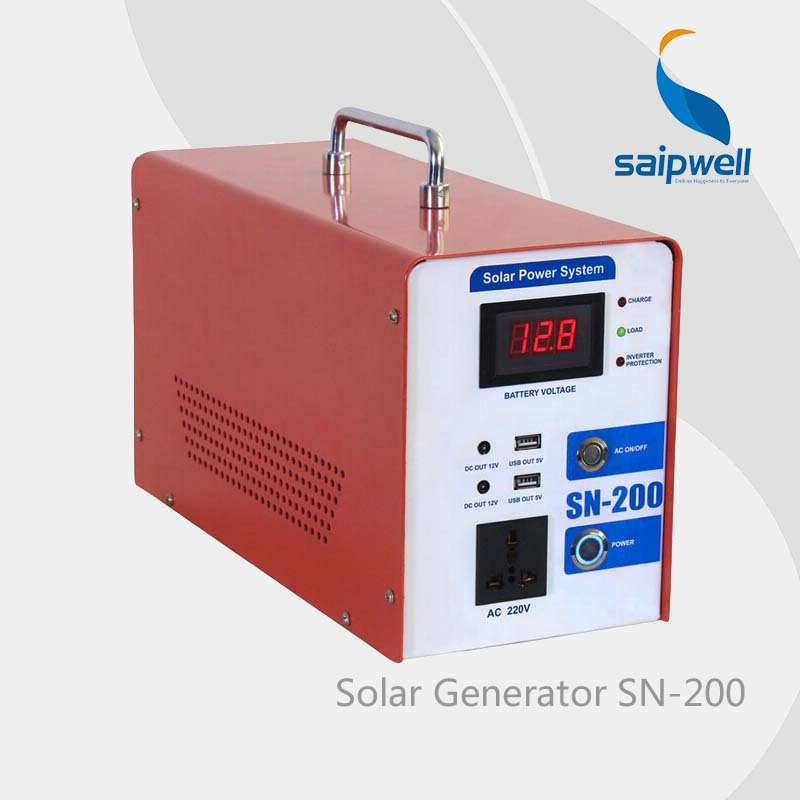

Panel Detail:

SN-200 PV within the one machine that contains the solar charge controller, battery pack, and off-grid
Inverter.

1. MC4 plug(DC IN+; DC IN-): For the solar panels connection (requires the panels to the open circuit voltage is less than 45V, the maximum power point current is less than 8A).

2. External charger interface(+ DC in 12V): For external charger in case of emergency to one inside the battery charging, the external charger optional.

3. Two USB output interface for the USB interface to a variety of small electrical power supply, the output voltage of 5V, 500mA. Such as: Charge the phone (compatible with iPhone products charging).

4. Two DC output 12V, 2A.

5. AC output interface

6. Power button, when it pressed, the red indicator light, generation machine on working.


7. AC On/off button. When PRessed, the green LED battery voltage indicator, Always represents the normal working of the normal battery voltage inverter, slow blinking and alarm, said undervoltage remind inverter but still output; Fast flashing alarm and said that the under-voltage protection, inverter The output is turned off.


ABOUT US


SAIPWELL, as a professional manufacturer and supplier, is specialized in developing, producing electric equipments fitting all over the world. Our goal is to BUILD BEATIFIC PRODUCT

Please kindly contact with us freely. High quality, reasonable price, best service is offered to you.

Saip as always inherits "high quality and sincere service".
Saip - your successful cooperative partner!



Contact Us

Saipwell Electric Group Company Limited

Add: NO. 512, Wenchuan Road, Shanghai, 201906 China

Tel: 0086-021-56026033-8052
Mobile: +86 15026900836
http://www.saipgroup.com/


We're Professonal, as always~
Model   SN-200
Output Power   200W
System Voltage   12VDC
Best Output Power Everyday   160WH
SN-200 Input Voltage DC 16V-40
No-load current DC 12V 0.2A
Output waveform sine wave
AC output AC 220V±2%
DC output DC 12V 500mA
USB DC output DC 5V 500mA
Output frequency 50HZ±0.1%
Allowable overload 110%,30 seconds
The efficiency of the inverter 90%
Frequency range ±3%
Solar Panel Output power 50W
  Operating voltage 17.8V
  Operating current 4.5A
Battery Capacity 12V24H


Prod Model: SN-200
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Portable
Capacity: 200W
Output Voltage(DC/AC): DC 12V 500mA/AC 220V±2%
Allowable Overload: 110%/30sec
Battery Capacity: 12V 24h
System: Off-Grid system
Shanghai Saipwell Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces thermostats, heaters, hiboxes and all kinds of waterproof enclosures, solar charge controller, solar generator, wind generator etc.
