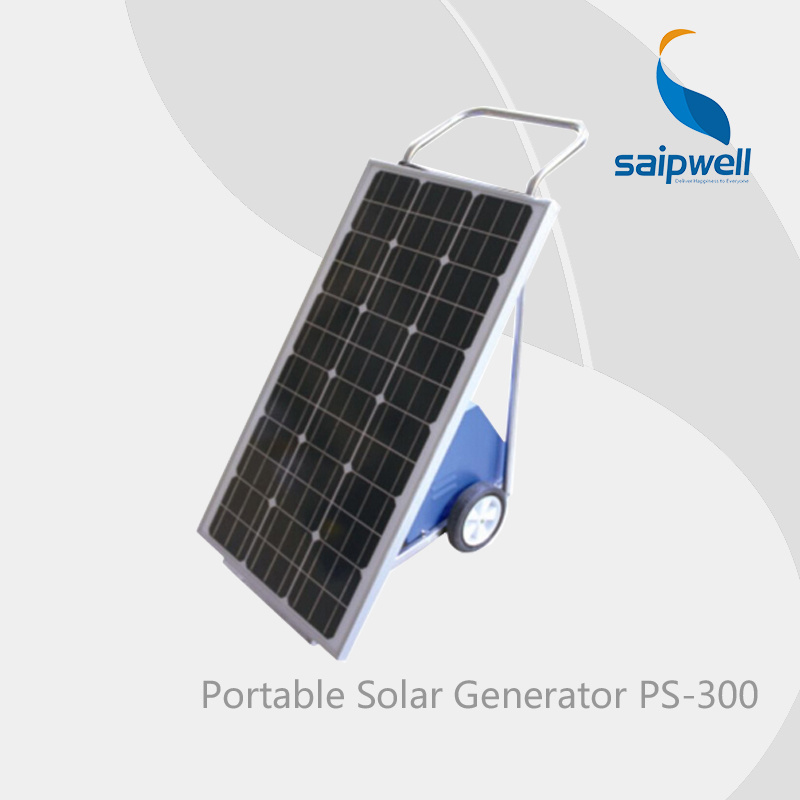

Saipwell Portable Solar Electric Machine (PS-300)
Specifications
Newest Portable Solar Electric Machine PS-300
1. CE & RoSH
2. Simple structure
3. Energy saving
4. Multi-protection
Introduction:
1. Avoid using the machine under such conditions as having flammable or explosive or erosive gas and too hot places.
High performance Solar Generator PS-300
2. This system equips with solar panel and battery. Under the condition of fully charged, it can supply power for DC electric equipment or charge the mobile, ect ( the parameters differ according to the different geographical, using condition and using time).
Features:
1. Simple structure, easy maintenance
2. Output for pure sine wave
3. It's portable, so it's Easy to deploy
4. Emergency power for home or Office, remote areas, communications, etc
5.2years warranty
FAQ
Question: What can be included for this system?
Answer:
This system includes: Solar panels, inverter, controller, battery, solar pv cable, bracket, and disconnectors.
Question: What's the advantage for this solar system?
Answer:
1. Steady operating
2. The most advantage: On grid energy backup(not means sell electricity, just backup)
3. CE Certified
4. Easy installation according to our instructions
5. Professional parts supply
Question: How to place and install them before we use?
Answer:
The system can be put on ground outside house, but must be kept away from water or spray. And the solar panels must be placed away from shadow, the less dust the better in the air. And the solar panel must be placed to a certain angle(20-45 angle) which will be faced directly to the sun
Question: How about the lifetime?
Answer:
The life time for solar panel is 25years, another parts is for 6-15years.
Solar on grid system: Solar panel+grid tie inverter
Solar off grid system: Solar panel+hybird inverter(controller, inverter)+battery
(other parts as PV array combiner, rack, cable can optional)
Contact Us
Saipwell Electric Group Company Limited
Add: NO. 512, Wenchuan Road, Shanghai, 201906 China
Tel: 0086-021-56026033-8052
Mobile: +86 15026900836
http://www.saipgroup.com/
We're Professonal, as always~
Model |
|
PS-300 |
Capacity |
|
300W |
System Voltage |
|
12VDC |
Inverter |
Output Wave |
Pure Sine Wave |
Output Voltage |
AC220V,DC12V |
Solar Panel |
Pmax |
80W |
Voltage |
17.5V |
Current |
4.57A |
Battery |
Capacity |
12V, 55AH |
Package Data
Part |
Size(L x W x H mm) |
Weight(Kg) |
Power box |
320 x 320 x 280 |
30.9 |
Solar panel |
1175 x 527 x 35 |
6
|
Shanghai Saipwell Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces thermostats, heaters, hiboxes and all kinds of waterproof enclosures, solar charge controller, solar generator, wind generator etc.
