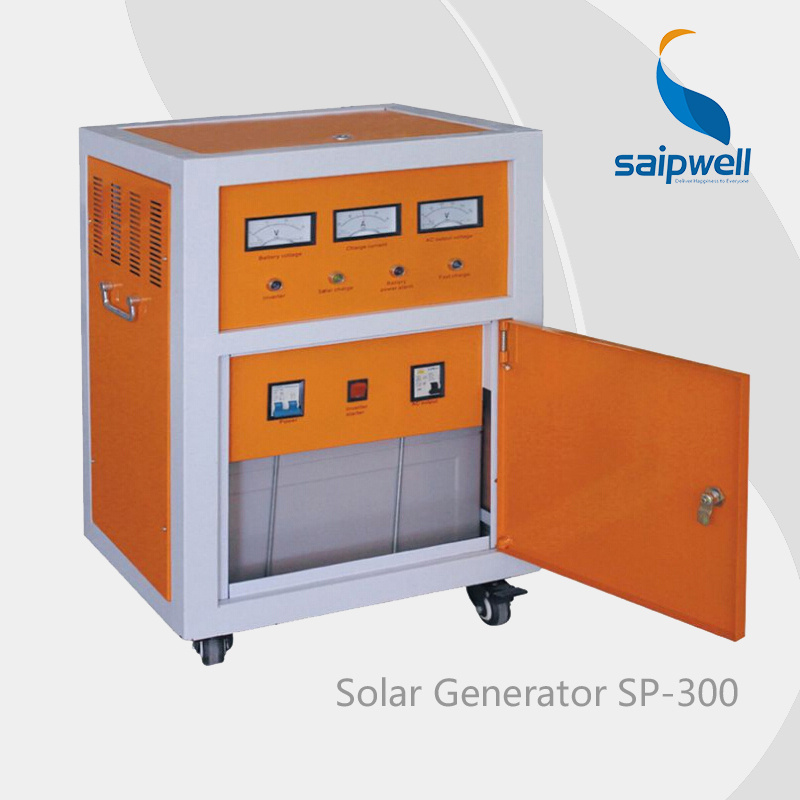

Saipwell Solar System For Rural Area(SP-300F)
Product Specifications
Solar Generator:
1. Simple structure
2. Duplex charge function
3. Multi-protection settings
4. CE & RoSH certificate
Main Features and Functions:
1. Simple structure, easy maintenance
2. Output for pure sine wave
3. Micro-computer chip controller, PWM regulator, automatic
Temperature compensation
4. Electronics-insurance replaces fuse. Being equiped with function of surge and overcurrent protection
5. Wide protection range: Over-voltage, under-voltage, overload, short-circuit protection, etc
6. High performance, especially suitable for domestic usage
7. Duplex charging midels: Solar and mains electricity
ABOUT US
SAIPWELL, as a professional manufacturer and supplier, is specialized in developing, producing electric equipments fitting all over the world. Our goal is to BUILD BEATIFIC PRODUCT
Please kindly contact with us freely. High quality, reasonable price, best service is offered to you.
Saip as always inherits "high quality and sincere service".
Saip - your successful cooperative partner!
Contact Us
Saipwell Electric Group Company Limited
Add: NO. 512, Wenchuan Road, Shanghai, 201906 China
Tel: 0086-021-56026033-8052
Mobile: +86 15026900836
http://www.saipgroup.com/
We're Professonal, as always~
|
Model |
SP-300F |
|
Power |
|
300VA |
|
System Voltage |
|
12VDC |
|
Inverter |
Output Wave |
Pure Sine Wave |
|
Output Voltage |
AC110V or 220V, DC12V |
|
Output Frequency |
50Hz/60Hz |
|
Solar Panel |
Pmax |
100W |
|
Vmp |
17.5V |
|
Imp |
5.7A |
|
Charege |
Charger Voltage & Current |
12V10A |
|
Battery |
Capacity |
12V100AH |
Package Data:
|
Model |
SP-300F |
|
Part |
Size (L x W x Hmm) |
Weight (Kg) |
|
Power Box |
450 x 380 x 655 |
68 |
|
Solar Panel |
850 x 610 x 60 |
6.5 |
|
Solar Panel Bracket |
825 x 760 x 55 |
9.2 |
|
Battery |
406 x 174x 208 |
37 |
Shanghai Saipwell Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces thermostats, heaters, hiboxes and all kinds of waterproof enclosures, solar charge controller, solar generator, wind generator etc.
