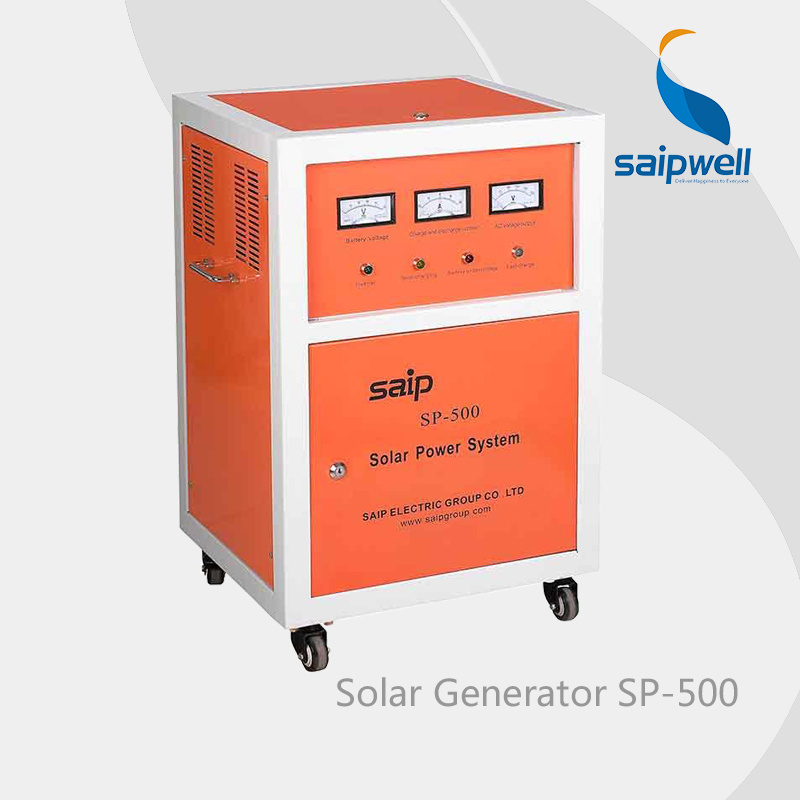

Saipwell Solar System For Residential Use(SP-500H)
1. Energy saving, environmental -friendly
2. Long life service(>15years)
3. Low maintanence
4. CE&RoHS
5. Large capacity
Solar generator system is energy saving and environment protection product, which well suitable for household lighting, outdoor working and exploration, village area, grazed area and frontier post where no normal electricity service.
ABOUT US
SAIPWELL, as a professional manufacturer and supplier, is specialized in developing, producing electric equipments fitting all over the world. Our goal is to BUILD BEATIFIC PRODUCT
Please kindly contact with us freely. High quality, reasonable price, best service is offered to you.
Saip as always inherits "high quality and sincere service".
Saip - your successful cooperative partner!
Contact Us
Saipwell Electric Group Company Limited
Add: NO. 512, Wenchuan Road, Shanghai, 201906 China
Tel: 0086-021-56026033-8052
Mobile: +86 15026900836
http://www.saipgroup.com/
We're Professonal, as always~
|
Model |
SP-500H |
|
Capacity |
500VA |
|
System voltage |
24VDC |
|
Output power |
1400WH |
|
Inverter |
Output wave |
Pure sine wave |
|
Output voltage |
AC110/220V |
|
Output frequency |
50HZ/60HZ |
|
Output current |
1.82A(220V) / 3.64A(110V) |
|
Precision OF OV |
±3% |
|
Precision OF OC |
±0.1% |
|
False Output Wave of AC |
<3% |
|
Overload Ability |
120%,30 seconds |
|
Invert Efficiency |
>85% |
|
Solar panel |
Pmax |
400W |
|
Vmp |
35V |
|
Lmp |
11.4A |
|
Battery |
Capacity |
24V200AH |
|
Package data: |
|
Part |
Size (L*W*H mm) |
Weight(kg) |
20' (pcs) |
40' (pcs) |
|
Power box |
615*525*1120 |
81 |
35 |
85 |
|
Solar panel |
1200*850*170 |
45 |
|
Solar panel bracket |
1660*85*150 |
28 |
|
Battery |
535*500*255 |
113 |
Shanghai Saipwell Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces thermostats, heaters, hiboxes and all kinds of waterproof enclosures, solar charge controller, solar generator, wind generator etc.
