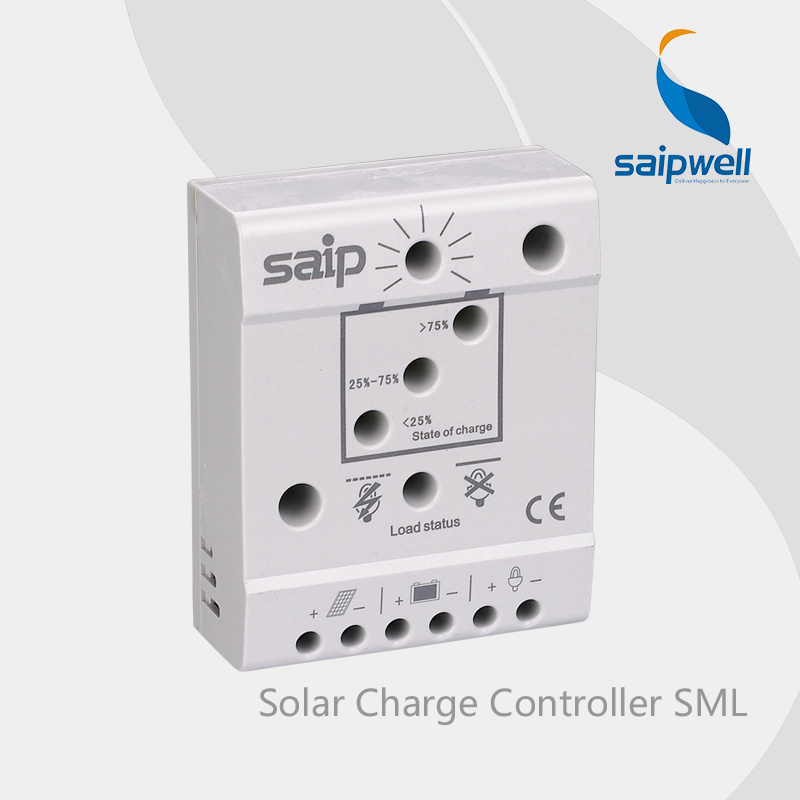

Saipwell Solar Photovoltaic Controller (SML08)
1.24V20A solar controller.
2.12V/24V, automatic recognition.
3. CE certificate.
4.2 years warranty.
5. Electric protect.
The SML series is a sophisticated solar charge controller family for low-cost applications.
The electronic circuit is equipped with a microcontroller that provides high-efficiency charging technology together with a number of outstanding status display, warning and safety functions.
The temperature-compensated three-stage PWM charging method (boost-equalization-float) is now adjustable to sealed and vented lead-acid batteries.
The new version also allows an either SOC or voltage controlled low voltage disconnect function.
The battery status is clearly indicated by three LEDs. As the first controller on the market in this price range it comes with an acoustic low voltage load disconnect pre-warning feature.
ABOUT US
SAIPWELL, as a professional manufacturer and supplier, is specialized in developing, producing electric equipments fitting all over the world. Our goal is to BUILD BEATIFIC PRODUCT
Please kindly contact with us freely. High quality, reasonable price, best service is offered to you.
Saip as always inherits "high quality and sincere service".
Saip - your successful cooperative partner!
Contact Us
Saipwell Electric Group Company Limited
Add: NO. 512, Wenchuan Road, Shanghai, 201906 China
Tel: 0086-021-56026033-8052
Mobile: +86 15026900836
http://www.saipgroup.com/
We're Professonal, as always~
|
Model |
SML05 |
SML08 |
SML10 |
SML15 |
SML20 |
SML25 |
|
Nominal voltage: |
12/24V automatic recognition |
|
Max. module current |
5A |
8A |
10A |
15A |
20A |
25A |
|
Max. load current |
5A |
8A |
10A |
15A |
20A |
25A |
|
Boost voltage |
14.5V/29.0V |
|
Equalization voltage |
14.8V/29.6V |
|
Equalization voltage |
13.7/27.4V |
|
Deep discharge protection |
11.4-11.9V/22.8-23.8V controlled by state of charge 11.0/22.0V controlled by voltage |
|
Load reconnect voltage |
12.8/25.6V |
|
Temperature compensation |
-4mV/cell*K |
|
Self consumption |
<4mA |
|
Max. wire size |
16mm ²(AWG#6) |
|
Dimensions(W×H×D) |
80*100*32mm(w*h*d) |
|
Weight |
220g |
|
Temperature range |
-20to+50°C |
|
Type of protection |
IP22 |
