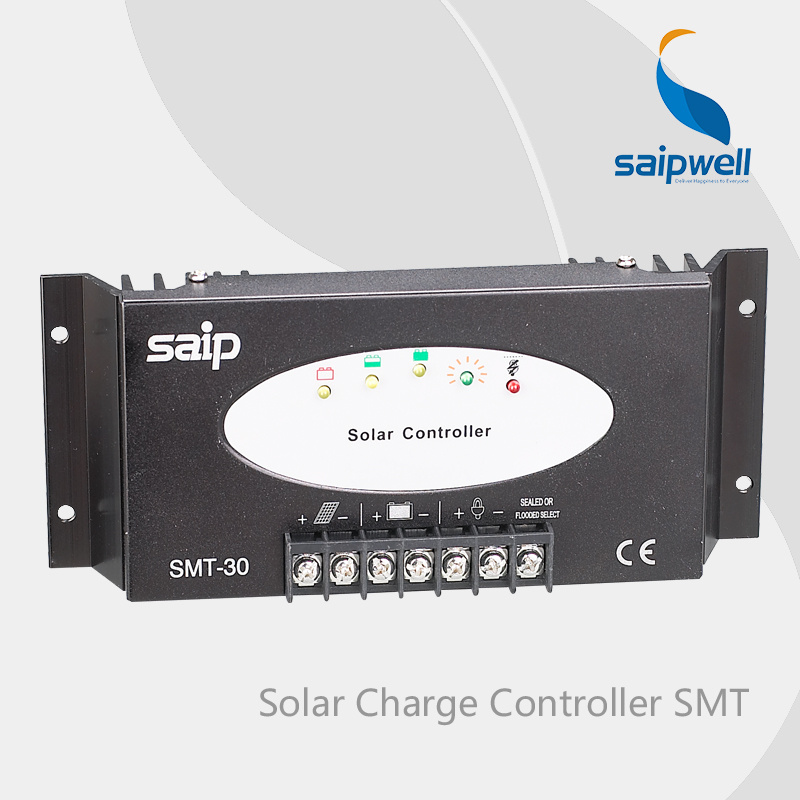

Saipwell PWM Solar Charge Controller (SMT30)
SMT10/15/20/30/40
Feature
1. Battery State-of-Charge display with 3 LEDs;
2. Acoustic load disconnect pre-warning;
3. PWM-regulation;
3. Boost, Equalize and Float charging, also for VRLA;
4. Automatic 12/24 Volt detection;
5. Integrated temperature compensation;
6. Large terminals (up to 16mm2 wire size);
7. SOC and voltage controlled LVD;
8. Fully electronically protected
.
Introduction:
2013 NEWEST mppt hybrid solar charge controllers SMT Series
The SMT series is a sophisticated solar charge controller family for low cost applications. The electronic circuit is equipped with a microcontroller that provides high-efficiency charging technology together with a number of outstanding status display, warning and safety functions.
The temperature-compensated three-stage MPPT charging method (boost-equalizationfloat) is now adjustable to sealed and vented lead-acid batteries.
The new version also allows an either SOC or voltage controlled low voltage disconnect function. The battery status is clearly indicated by three LEDs.
As the first controller on the market in this price range it comes with an acoustic low voltage load disconnect pre-warning feature.
Model SMTNL10 SMTNL15 SMTNL20 SMTNL30 SMTNL40
Nominal voltage Automatic recognition 12/24V
Max. Solar panel current 10A 15A 20A 30A 40A
Max. Load panel current 10A 15A 20A 30A 40A
Boost voltage 14.5V/29.0V
Equalization voltage 14.8V/29.6V
Equalization voltage 13.7/27.4V
Deep discharge protection 11.0/22.0V Controlled by voltage
Load reconnect voltage 12.8/25.6V
Temperature compensation -4mV/cell× K
Self consumption <4mA
Max. Wire size 16mm2(AWG#6)
Dimensions(W× H× D) 80× 187× 28mm(W× H× D)
Weight 300g
Temperature range -20to +50
ABOUT US
SAIPWELL, as a professional manufacturer and supplier, is specialized in developing, producing electric equipments fitting all over the world. Our goal is to BUILD BEATIFIC PRODUCT
Please kindly contact with us freely. High quality, reasonable price, best service is offered to you.
Saip as always inherits "high quality and sincere service".
Saip - your successful cooperative partner!
Contact Us
Saipwell Electric Group Company Limited
Add: NO. 512, Wenchuan Road, Shanghai, 201906 China
Tel: 0086-021-56026033-8052
Mobile: +86 15026900836
http://www.saipgroup.com/
We're Professonal, as always~
|
Model |
SMT10 |
SMT15 |
SMT20 |
SMT30 |
SMT40 |
|
Nominal voltage |
Automatic recognition 12/24V |
|
Max.solar panel current |
10A |
15A |
20A |
30A |
40A |
|
Max.load panel current |
10A |
15A |
20A |
30A |
40A |
|
Boost voltage |
14.5V/29.0V |
|
Equalization voltage |
14.8V/29.6V |
|
Euqalization voltage |
13.7V/27.4V |
|
Deep discharge protection |
11.4-11.9V/22.8-23.8V Controlled by statc of charge |
|
11.0/22.0V Controlled by voltage |
|
Load reconnect voltage |
12.8/25.6V |
|
Temperature compensation |
-4mV/cell×K |
|
Self consumption |
<4mA |
|
Max.wire size |
16mm2(AWG#6) |
|
Dimensions(W×H×D) |
80×187×28mm(W×H×D) |
|
Weight |
300g |
|
Temperature range |
-20°Cto+50°C |
|
Type of protection |
IP42 |
Shanghai Saipwell Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces thermostats, heaters, hiboxes and all kinds of waterproof enclosures, solar charge controller, solar generator, wind generator etc.
