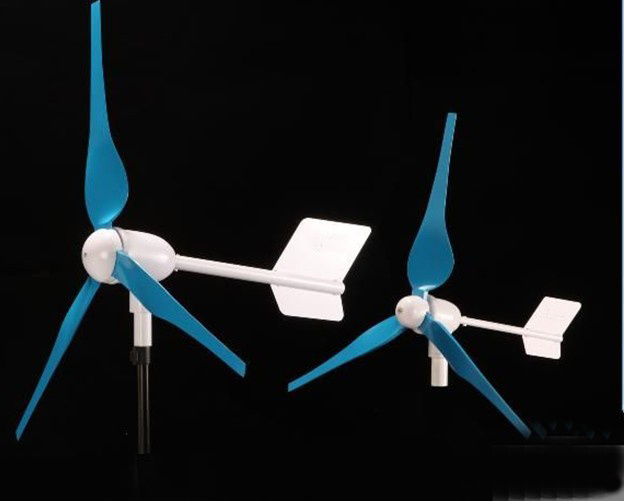

400W Horizontal-Axis wind wheels
1. High Efficiency
2. Easy Installation
3. Special performance
400W Horizontal-Axis wind generator
CHARACTERISTICS:
1. Blades: GFRP, high quality tooling and light in weight.
2. Shell: Aluminium alloy, good heat dispersion and light in weight.
3. Shakeproof: Special design keeps steady working enviroment.
4. Installation for generator: Clamp-ondesign, easy to install and more reliably.
5. Installation for blades: Three pieces of blades share only one bolt, easy to install.
|
S-400W |
Rated power(W) |
400 |
Rated voltage(DCV) |
24 |
Rated current(DCA) |
16.7 |
Rotor diameter(m) |
1.5 |
Material of blades |
GFRP |
Rotate direction(check downwind) |
clockwise |
Start-up wind speed(m/s): |
2.5 |
Rated wind speed(m/s): |
9.6 |
Security wind speed(m/s): |
35 |
Weight of generator(kgs) |
18 |
Weight of blades(per/pcs) |
0.35 |
Type of the generator |
Permanent magnet-synchronous generator |
Quantity of blades |
3 |
Windward mode |
Up -wind |
