Food, dairy, beverage, biology and pharmacy, boiler, brewing, electronic, electric appliance, electroplate, leather, printing and dying, painting and Dying, paint, chemical industrial, surface treatment etc, supply water treatment production line and all other industrial equipment of de-ion water
System constitute:

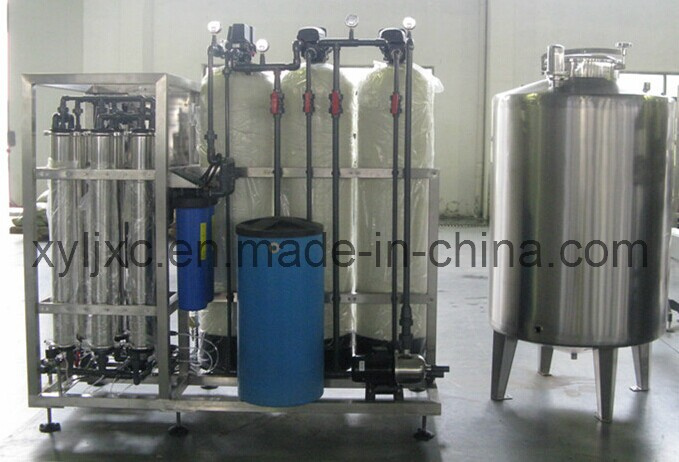

Generally speaking, RO pure water treatment system contains pretreatment system, reverse osmosis device, aftertreatment system, cleaning system and electrical control system etc.
Aftertreatment system is added in which case that Ro device can not meet the requirement of yielding water; It mainly includes one kind or various devices, such as anion bed, cation bed, mixed bed, sterilizer and ultrafilter;
Cleaning system mainly consists of the clean water tank, the clean water pump and precision filter; When RO water treatment system was polluted and couldn't meet the requirement yielding water, it will do the cleaning work for RO system to help it to recover.
Electrical control system is used to keep total system working normally; It includes instrument panel, control panel, various of electrical protector and electrical control cabinet.
Working principle:
Reverse osmosis technology
With the report of raw water analysis and the different requirements in different field, we can make a appropriate design for you.
1) Adopts RO membrane from VONTRON, which can remove 99.7% inorganic salt, heavy metal ion and completely get rid of colloid, microbiology organic materials, germ, protozoa, pathogens, bacteria, inorganic chemical and so on.
2) No need to add any chemicals, stable pure water quality, and no pollution drained, low produce cost.
3) Equipped with pretreatment system, such as active carbon absorption filter and refined quartz sand filter
4) Equipped with auto pressure protection system and on -line monitor.
5) Automatically and manually wash RO membrane. Also the design of washing the RO membrane is by chemical solution (citric acid or sodium hydroxide optional)
6) The lifespan of the whole system is long, operation simple, the applicability is strong.
|
Model |
RO-1000 |
RO-2000 |
RO-3000 |
RO-4000 |
RO-5000 |
RO-10000 |
|
Production capacity (m³ /h) |
1T/H |
2T/H |
3T/H |
4T/H |
5T/H |
10T/H |
|
Power (kw) |
1.5 |
2.2 |
3 |
5.5 |
5.5 |
11 |
|
Desalt rate |
98% |
|
Rate of recovery |
50-60%
|
Zhangjiagang city XY-LONG machinery Co., Ltd is a professional manufactory located in zhangjiagang city jinfeng town, we have more than 10years experiences on beverage machinery.
We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry machine in China, especially model QGF series barreled production line.
For beverage machine, our Main products including:
The capacity of 5000-- 40000 BPH for hot filling, MID-temp filling, aseptic cold filling lines.
The capacity of 5000-- 40000 BPH for mineral water and purified water producing line.
The capacity of 5000 -- 36000 BPH for carbonated beverage producing line.
The capacity of 300 -- 2000 TBH, for 3 gallon, 5 gallon.
All kinds of water treatment equipment.
PET perform inject and blowing-stretching machine. Mould plastics machine
Turn-key projects
Flat and tube UHT device, and CIP system.
All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
Welcome to visit our company. Thank you!
