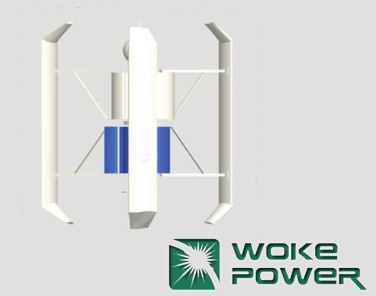

1kw Vertical-Axis Wind TurbineDetails:
Advantage:
1, Generating Efficiency 60%~80%.
2, NO need the empennage to change the directions, and always go clockwise
3, Resistance capability is strong, can resist 12~14 class typhoon
4, Safety coefficient is high, and the component is fixed safely.
5, No matter in urban, rural, or mountainous coastal areas, it is suitable for use.
Technical Parameter:
Start-up wind speed (2m/s)
Cut-in wind speed (3m/s)
Rated wind speed (12m/s)
Voltage rating 24V/48V(DCV)
Rated power (1000W)
Ultimate output (1100W)
Blade height (120 cm)
Fan blade amount (6+3PCS)
Safe wind speed (60m/s)
Weight of complete machine (35 kg)
Working temperature -20 to 45 degree
Maxim wind speed: ≤ 65m/s
Maximum momentary wind speed: ≤ 70m/s
Suggested mounting height: 3m~6m
2kw Vertical-Axis Wind Turbine
Details:
Advantage:
1, Generating Efficiency 60%~80%.
2, NO need the empennage to change the directions, and always go clockwise
3, Resistance capability is strong, can resist 12~14 class typhoon
4, Safety coefficient is high, and the component is fixed safely.
5, No matter in urban, rural, or mountainous coastal areas, it is suitable for use.
Technical Parameter:
Start-up wind speed (2m/s)
Cut-in wind speed (3m/s)
Rated wind speed (12m/s)
Rated system output voltage 48V/96V(DCV)
Power rating (2000W)
Ultimate output (2200W)
Blade height (160 cm)
Fan blade amount (6+3PCS)
Safe wind speed (60m/s)
Weight of complete machine (160 kg)
Working temperature -20 to 45 degree
Maxim wind speed: ≤ 65m/s
Maximum momentary wind speed: ≤ 70m/s
Suggested mounting height: 3m~6m.
3kw New Type Wind Turbine Generator
Details:
Advantage:
1, Generating Efficiency 60%~80%.
2, NO need the empennage to change the directions, and always go clockwise
3, Resistance capability is strong, can resist 12~14 class typhoon
4, Safety coefficient is high, and the component is fixed safely.
5, No matter in urban, rural, or mountainous coastal areas, it is suitable for use.
Technical Parameter:
Start-up wind speed (2m/s)
Cut-in wind speed (3m/s)
Rated wind speed (12m/s)
Voltage rating 48V/96V(ACV)
Power rating (3000W)
Ultimate output (3300W)
Blade height (180 cm)
Fan blade amount (6+4PCS)
Safe wind speed (60m/s)
Weight of complete machine (200kg)
Working temperature -20 to 45 degree
Maxim wind speed: ≤ 75m/s
Maximum momentary wind speed: ≤ 80m/s
Suggested mounting height: 3m~6m.
5kw Vertical-Axis Wind Turbine With High Efficiency
Details:
Advantage:
1, Generating Efficiency 60%~80%.
2, NO need the empennage to change the directions, and always go clockwise
3, Resistance capability is strong, can resist 12~14 class typhoon
4, Safety coefficient is high, and the component is fixed safely.
5, No matter in urban, rural, or mountainous coastal areas, it is suitable for use.
Technical Paremeter:
Start-up wind speed (2m/s)
Cut-in wind speed (3m/s)
Rated wind speed (12m/s)
Rated system output voltage 110V/220V(DCV)
Rated power(5000W)
Ultimate output (5500W)
Blade height (220 cm)
Fan blade amount (6+4PCS)
Safe wind speed (60m/s)
Weight of complete machine (260kg)
Working temperature -20 to 45 degree
Maxim wind speed: ≤ 75m/s
Maximum momentary wind speed: ≤ 80m/s
Suggested mounting height: 3m~6m.
WOKE POWER, with its base in Shenzhen China, is a global energy solution expert in renewable energy, energy storage and LED energy saving etc. We keep up with the latest renewable energy technologies to bring the most trustworthy energy products to you. Our keen experience, strong technical team and successful references are helping customers with a high efficient and cost effective energy solution.
WOKE POWER offers a range of service as following: Solar Photovoltaic System, Wind Turbine System, Solar/Wind Hybrid System, Back-up Energy Storage System, Electric Vehicle Power System and LED Energy-Saving Solution. Products are solar photovoltaic panel, vertical/horizontal wind turbine, charger controllers, power inverter, batteries, UPS, LED lighting etc.
We are looking forward to working with you to bring a greener world closer to all.
