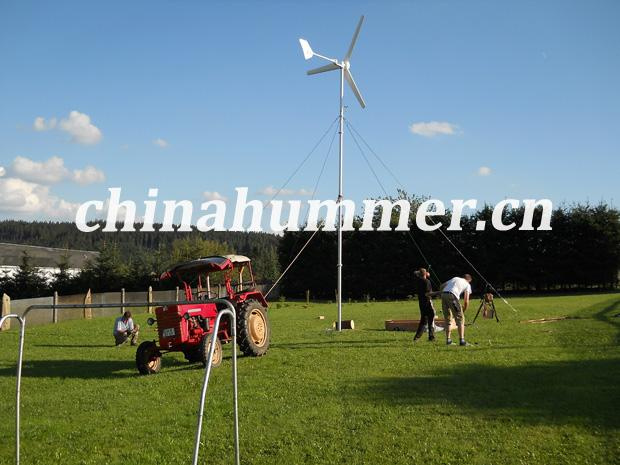

China made Hummer household1kw wind turbine for small size family
With several hummer patented technologies and introducing some special materials, H3.1-1000W wind generator with a 15kg weight. Due to its smallness and lightness, H3.1-1000W wind generator can swiftly start up at low wind speed (3m/s ), and its power-making ability is stronger than traditional one, the rated output of it is 1000W, and max output is 2000W.
It match with HUMMER special ALL-IN-ONE inverter system, which combine the functions of battery charger, controller and inverter. The inverter system offer a direct link with solar panels. It is featured by high level efficiency, compact size, out-standing power generation ability.
H3.1-1000W wind generator designed with dual protection, one is furling protection, the other is manual stop button. When the wind blows too fast, the generator will deflect driven by wind. H3.1-1000W wind generator's tail pole is made of strong manganese steel, ensuring durability. In additional, we also include a manual stop switch which can turn off the wind turbine by force. Through this dual protection, the system is safe and reliable.
Application of H3.1-1000W wind generator
Well used in:
Housing
Telecommunications Station
TV Transfer Station
Monitoring Station (military, hydrology, observatory)
Water-pumping Station
Key Technical Parameters of H3.1-1kw:
Rated power(W): 1000
Maximum output power(W): 2000
Charging voltage(V): DC 60V
Blade quantity: 3
Rotor blade material: GRP
Rotor blade diameter(m): 3.1
Start-up wind speed (m/s): 3.0
Rated wind speed (m/s): 9.0
Rated rotation speed (r/min): 500
Wind energy utilizing ratio (Cp): 0.45
Generator output: Single-phase AC of variable frequency
Output AC frequency (Hz): 0~400
Rated charging current (A): 15
The maximum charging current (in a short time)(A): 30
Generator efficiency > 0.8
Tower height(m): 8
Weight of generator (kg): 15
Battery(12V 150Ah/ 200Ah): 5PCS.
Anhui Hummer Dynamo Co., Ltd., is a professional wind generators manufacturer with high-tech in the field of wind energy. We specialize in researching, developing, producing and promoting of small-sized wind generator system, and also provide solutions for setting up small-scaled wind farm. After nearly 30 years of unremitting efforts, our company has developed independent intellectual property rights of "Hummer" wind generator and control system.
There are more than 200 employees in the company including 40 R&D staff. And the new factory covers over 30, 000 square meters with the first workshop more than 3100 square meters has been put into use in August, 2007. There are more than 30 sets of large machines for processing, cutting and spray-painting equipments, and also many testing and examining systems. The monthly output is 3, 000 sets.
Hummer middle and small-sized wind generators including 400W, 500W. 1kw. 2kw. 3kw. 5kw. 10kw. 20kw, 30kw, 50kw, etc have acquired CE certificate. Meanwhile, Hummer wind generator with good reputation can be found in more than 91 countries and regions, such as EU, North America, Oceania, Africa and Asia.
Hummer's wind generators have the features of "Super Light, Small, Swift and High efficiency" when comparing with traditional'. We have a powerful R&D team (consisting of experts enjoying government allowance), providing a reliable strength for product upgrade& technical support. The management team has abundant experiences in production, marketing, service and consultation. Until now our company has formed a comprehensive management system of research, study, development and service.
Hummer aims to be the best domestic manufacturer and service provider as well as a worldwide influential enterprise.
