1. Vertical wind turbine, wind generator system
2. High Efficiency & Reliability
3. CE. RoHS
4. Over 20 years lifetime
Wind-electric equipment wind-driven generator. Wind turbine generator. Vertical wind turbine generator. Solar wind turbine. Wind turbine system.

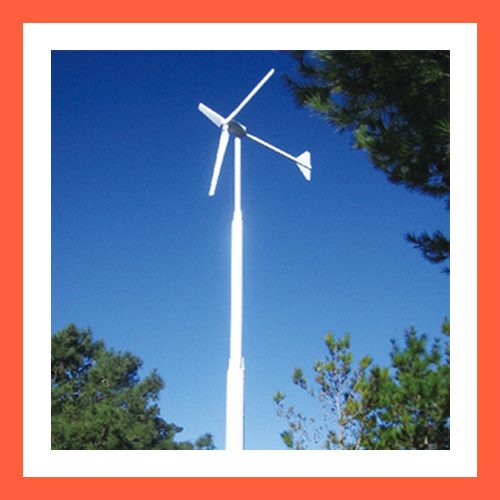

Product Name: 50KW WIND GENERATOR
Product Description:
Blade diameter: |
18m |
Number of blades: |
3 |
Blade material: |
FRP |
Rated wind speed: |
12m/s |
Startup wind speed: |
3m/s |
Cut-in wind speed: |
3m/s |
Security wind speed: |
50m/s |
Rated output power: |
50KW |
Max output power: |
55KW |
Rated rotary speed: |
85r/m |
Type of generator: |
permanent-magnet, 3-phase A. C |
Furling type: |
Electronic |
Output voltage: |
DC380V |
Tower type: |
Independently Standing Tower,
18m high, Φ 500x10mm |
Packing Detail (tower not included) |
|
Features Description |
Net Weight: 4720kgs |
|
High Efficiency & Reliability; NdFeB Permanent Magnet Generator, over 20 years lifetime; High Rigidity FRP Blades; Intelligent Automatic Controller; Wind direction sensor and wind speed sensor, realizing automatic regulation. |
Gross Weight: 5550kgs |
|
Wooden Case: 3 cases, total 22.2cbm |
|
|
|
